Rear

WHEEL HUB BOLT
REPLACEMENT
1. REMOVE REAR WHEEL
2. REMOVE BRAKE CALIPER AND DISC
a. Remove the 2 bolts, brake caliper and disc.
b. Support the brake caliper securely.





3. REMOVE HUB BOLT

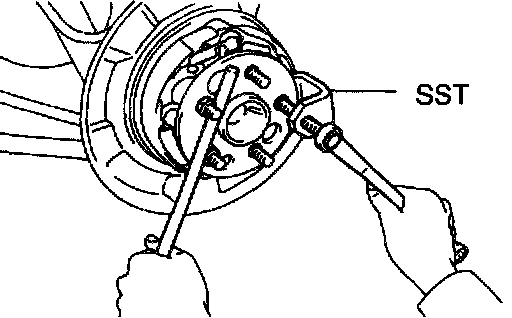

Using SST and a hammer handle or an equivalent, remove the hub bolt.
SST 09628-10011





4. INSTALL HUB BOLT
a. Install a washer and nut to a new hub bolt as shown in the illustration. Using a hammer handle or an equivalent to hold, install the hub bolt by torquing the nut.
5. INSTALL DISC AND BRAKE CALIPER
Install the disc and brake caliper with the 2 bolts.
Torque: 47 Nm (475 kgf-cm, 34 ft. lbs.)
6. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
