2AZ-FE [PZEV]

DTC B2798 NO COMMUNICATION IN IMMOBILIZER SYSTEM

CIRCUIT DESCRIPTION

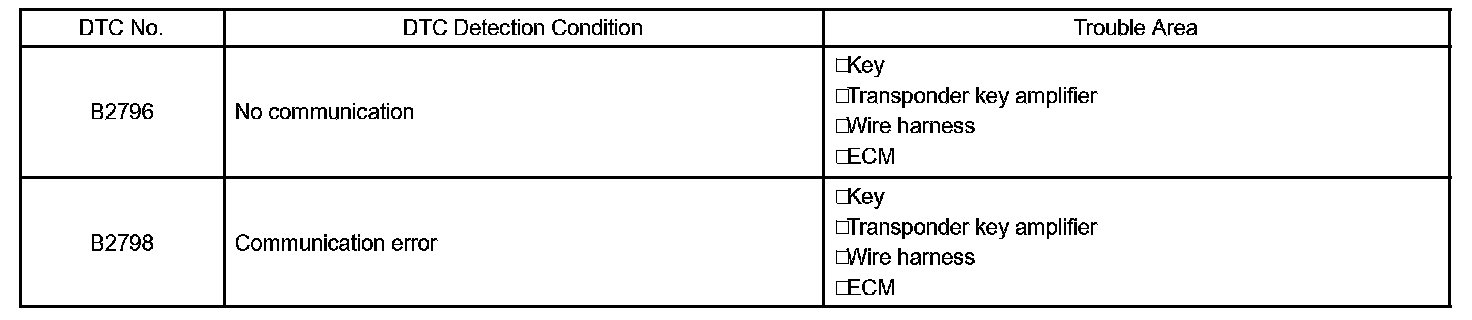

DTC Detection Condition:

This DTC is output if no communication exists between the key and amplifier when the key is inserted.

Wiring Diagram:

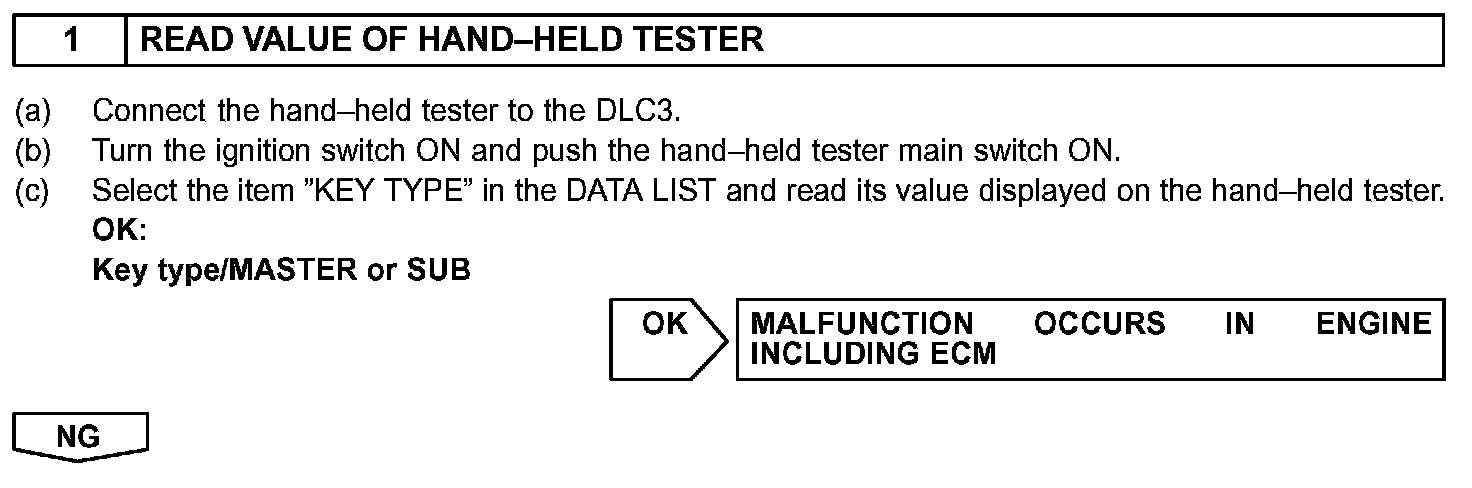

Step 1:

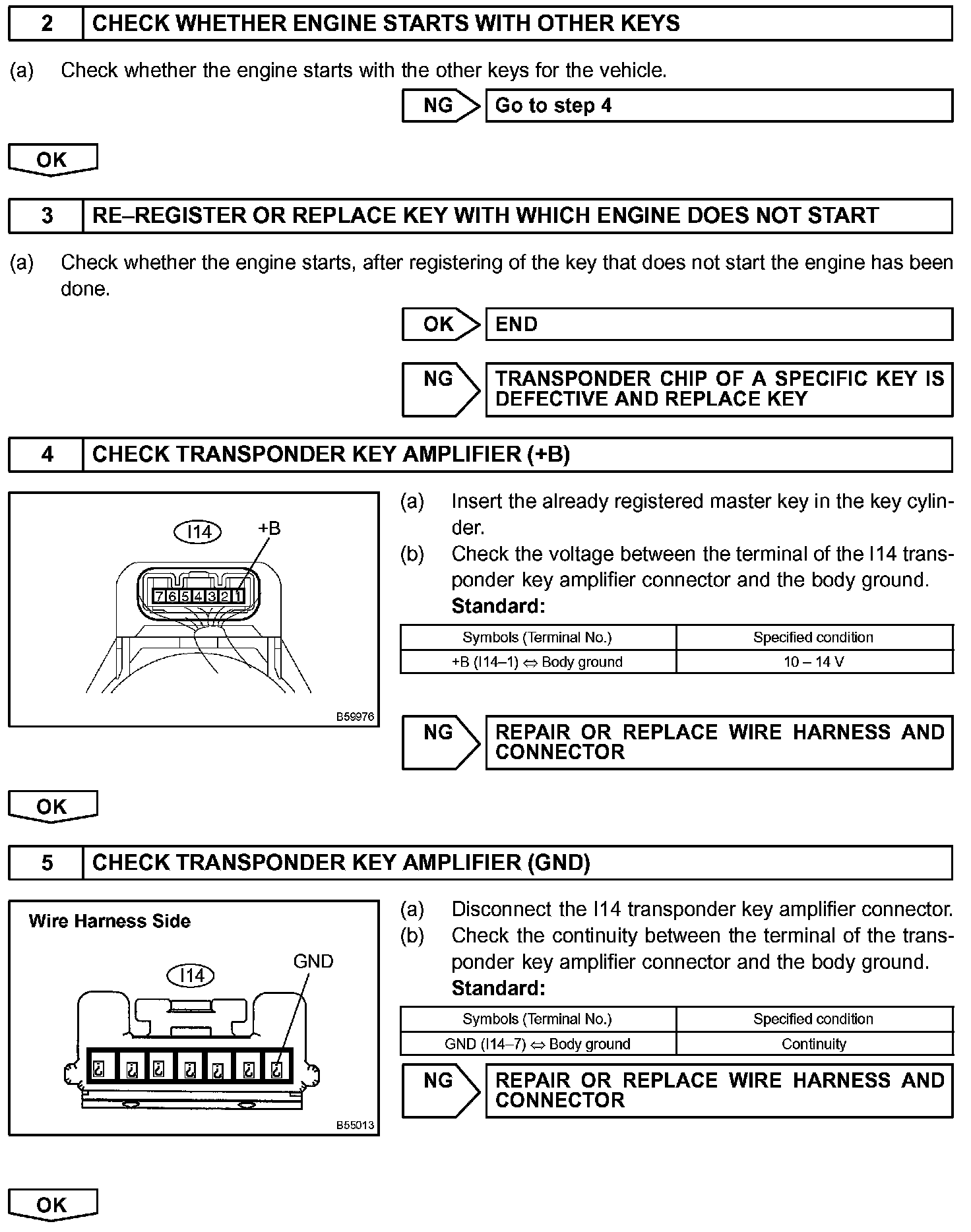

Step 2 - 5:

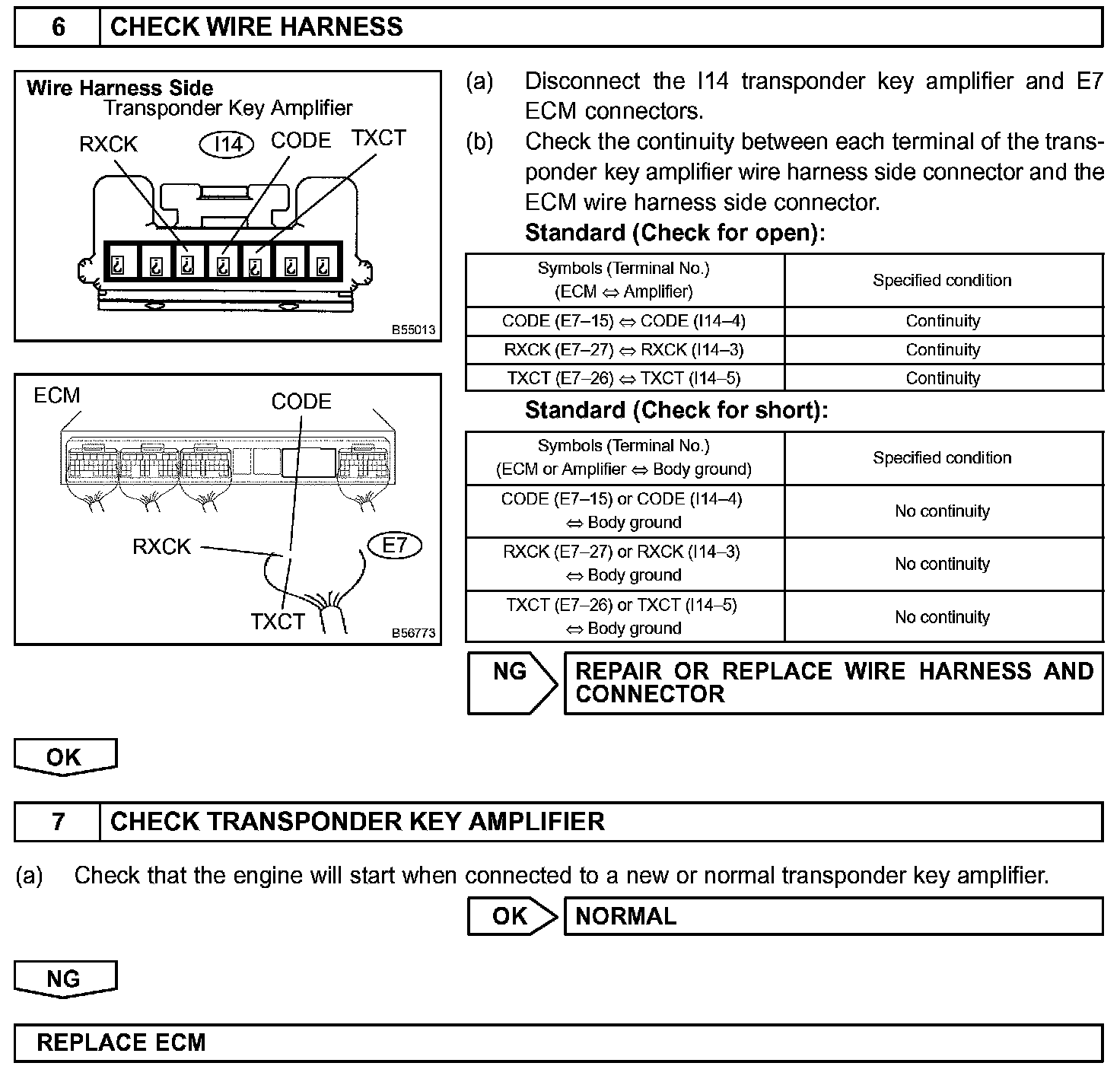

Step 6 - 7:

INSPECTION PROCEDURE
