DIAGNOSTIC TROUBLE CODE CHART

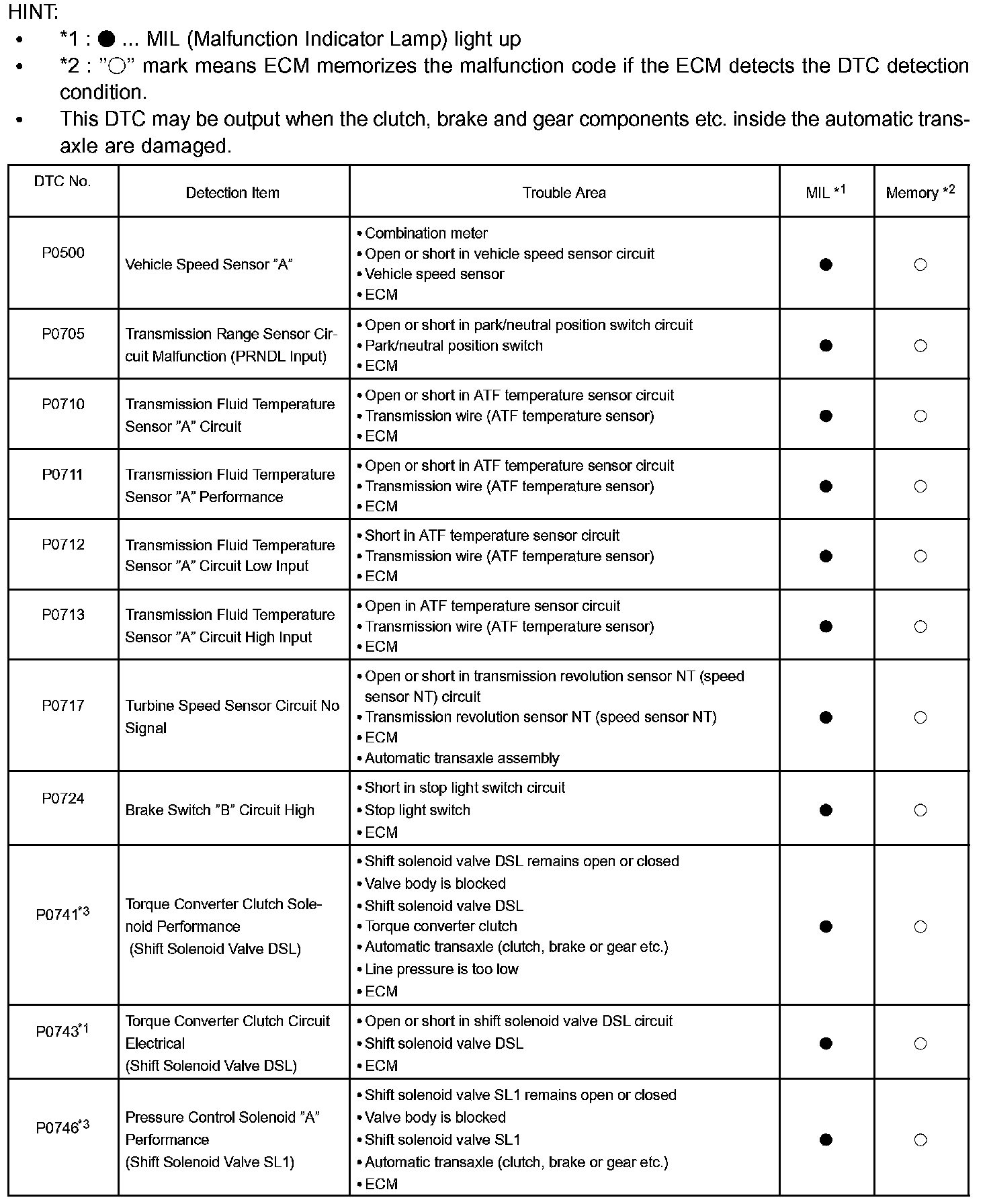

P0500 - P0746:

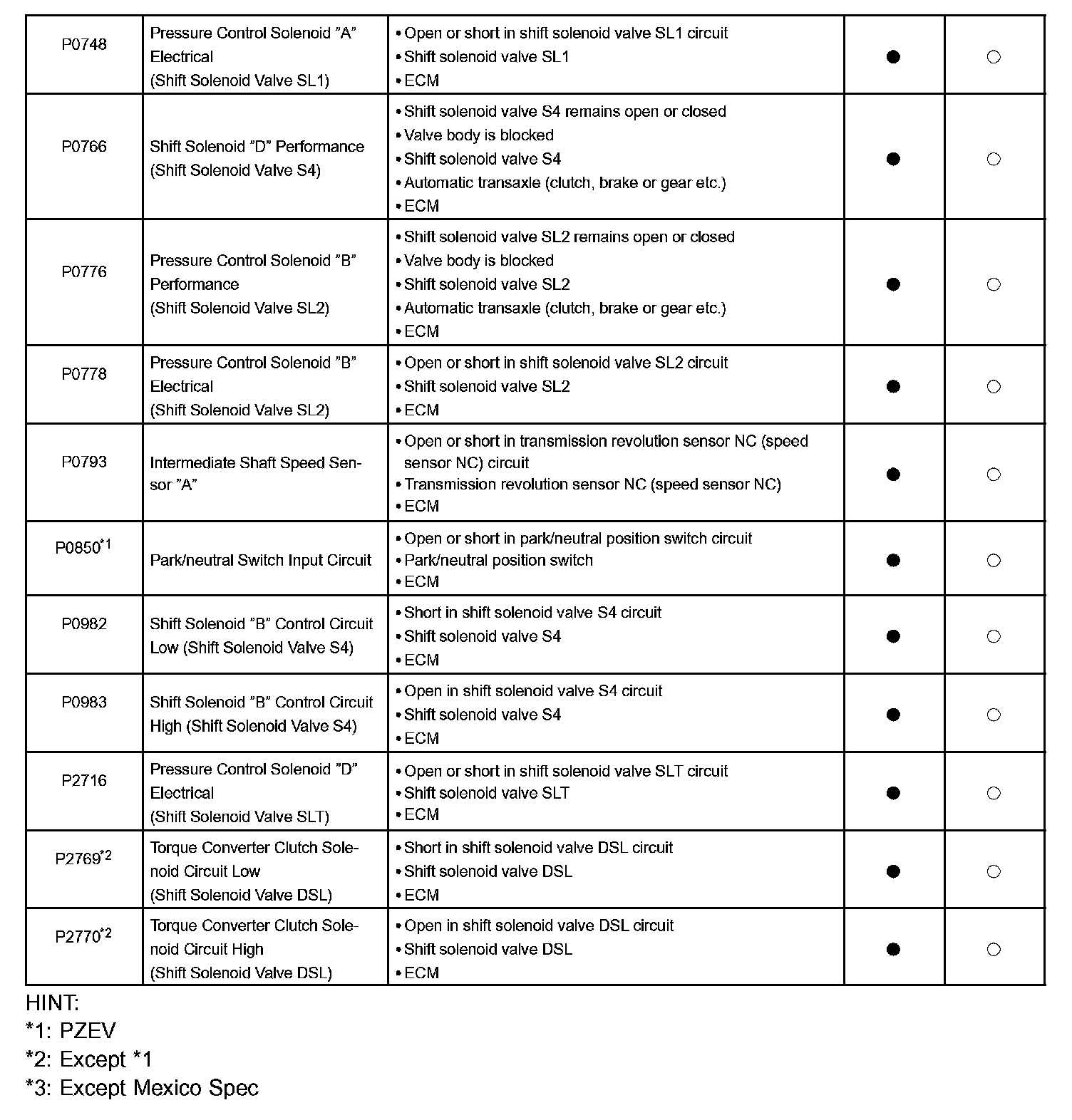

P0748 - P2770:
If a DTC is displayed during the DTC check, check the parts listed in the table above.
