2AZ-FE [PZEV]

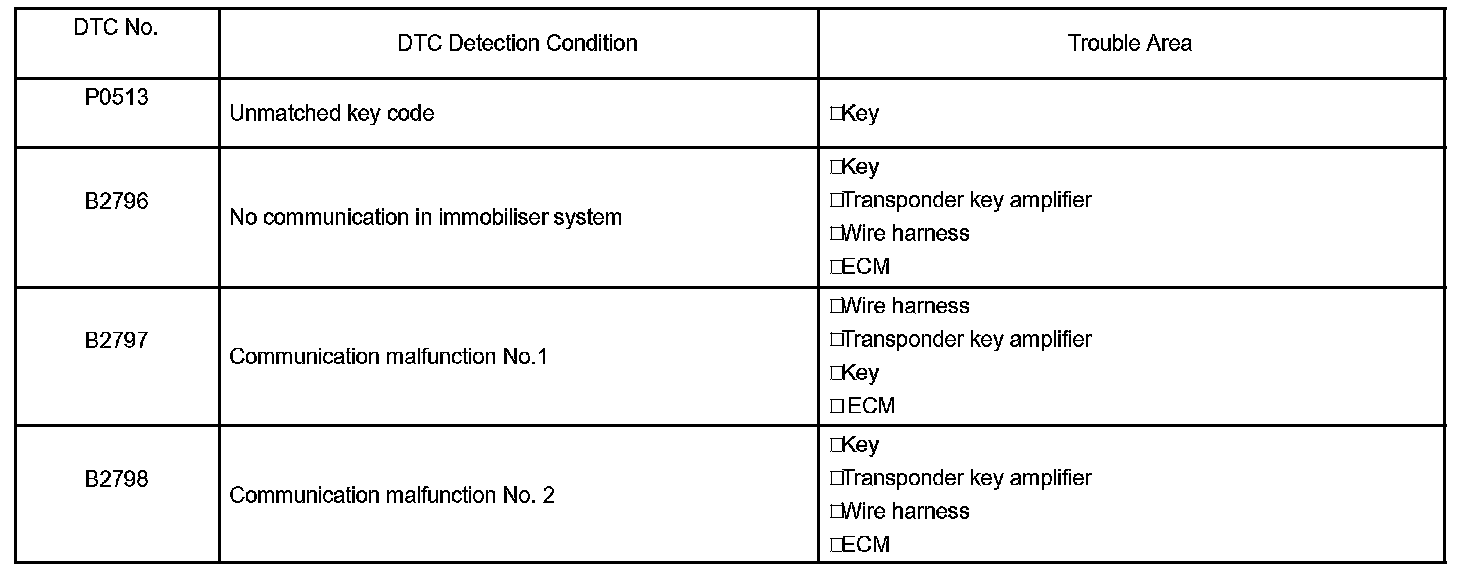

DIAGNOSTIC TROUBLE CODE CHART

P0513 - B2798:

NOTE:
- Codes P0513, B2797 and B2798 may remain as a record that the immobilizer system has activated in the past.
- The diagnosis code on the immobilizer system is specified in this chart. If any other code is output, check the diagnostic code chart on the engine control system.

HINT:
- The "SAE code" indicates a code output when using the hand-held tester.
- The "lamp" indicates a code output when using the malfunction indicator lamp.
