Air Conditioning System

DTC 41 AIR MIX DAMPER CONTROL SERVOMOTOR CIRCUIT (PASSENGER SIDE)

CIRCUIT DESCRIPTION

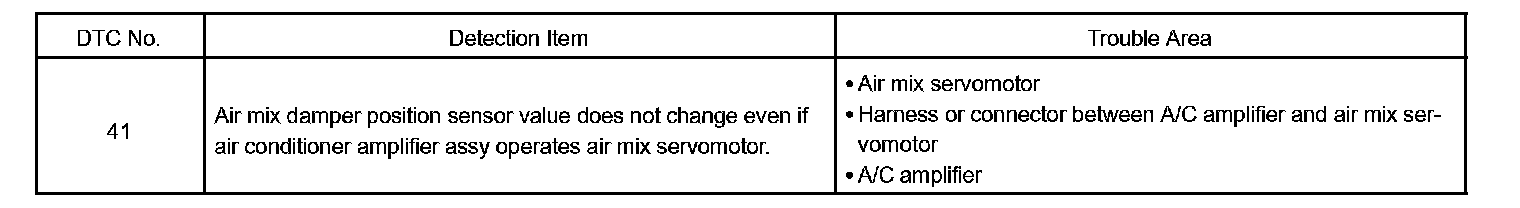

Detection Item:

This air mix servomotor is controlled by the A/C amplifier and moves the air mix damper to the desired position.

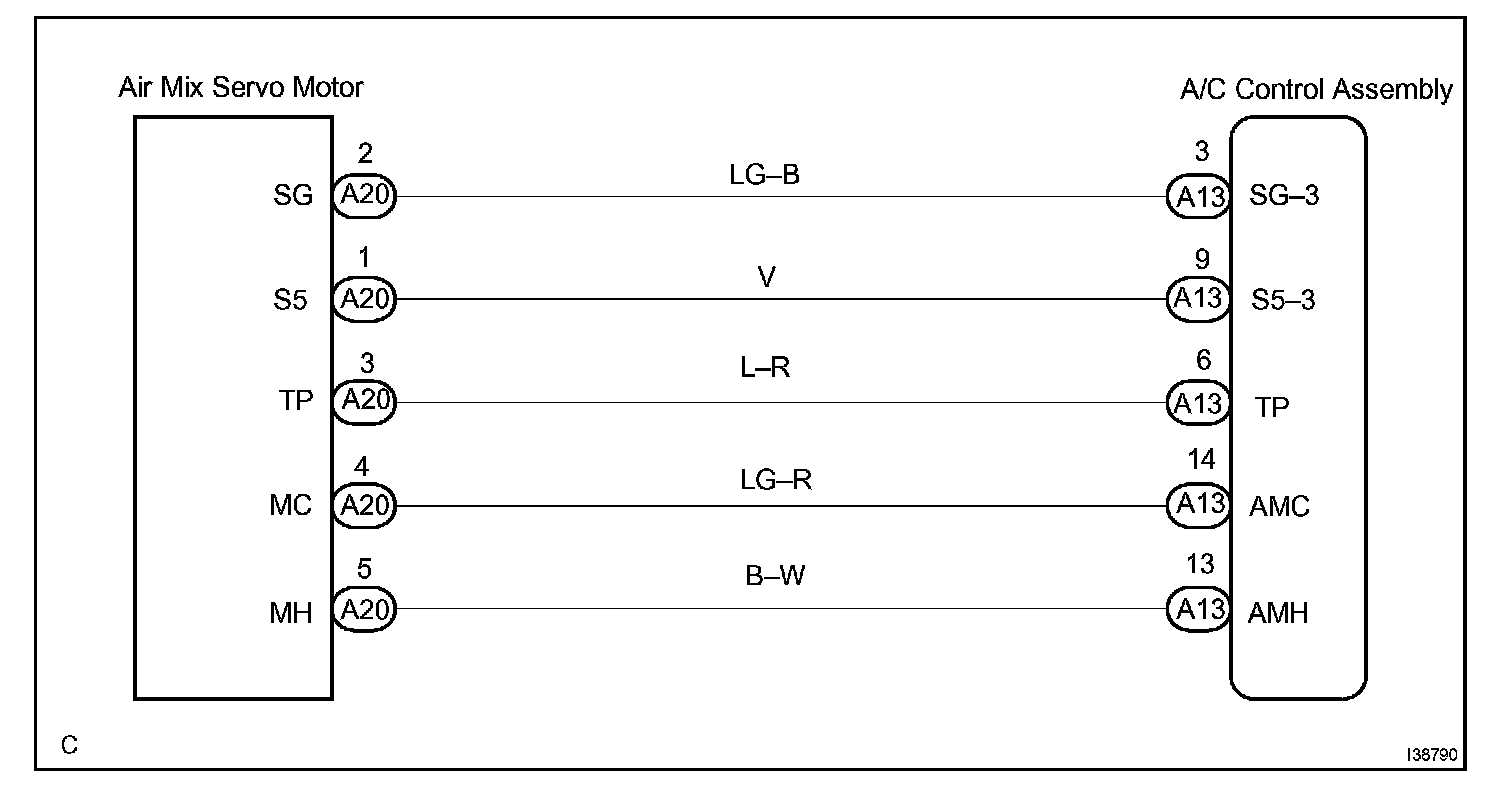

Wiring Diagram:

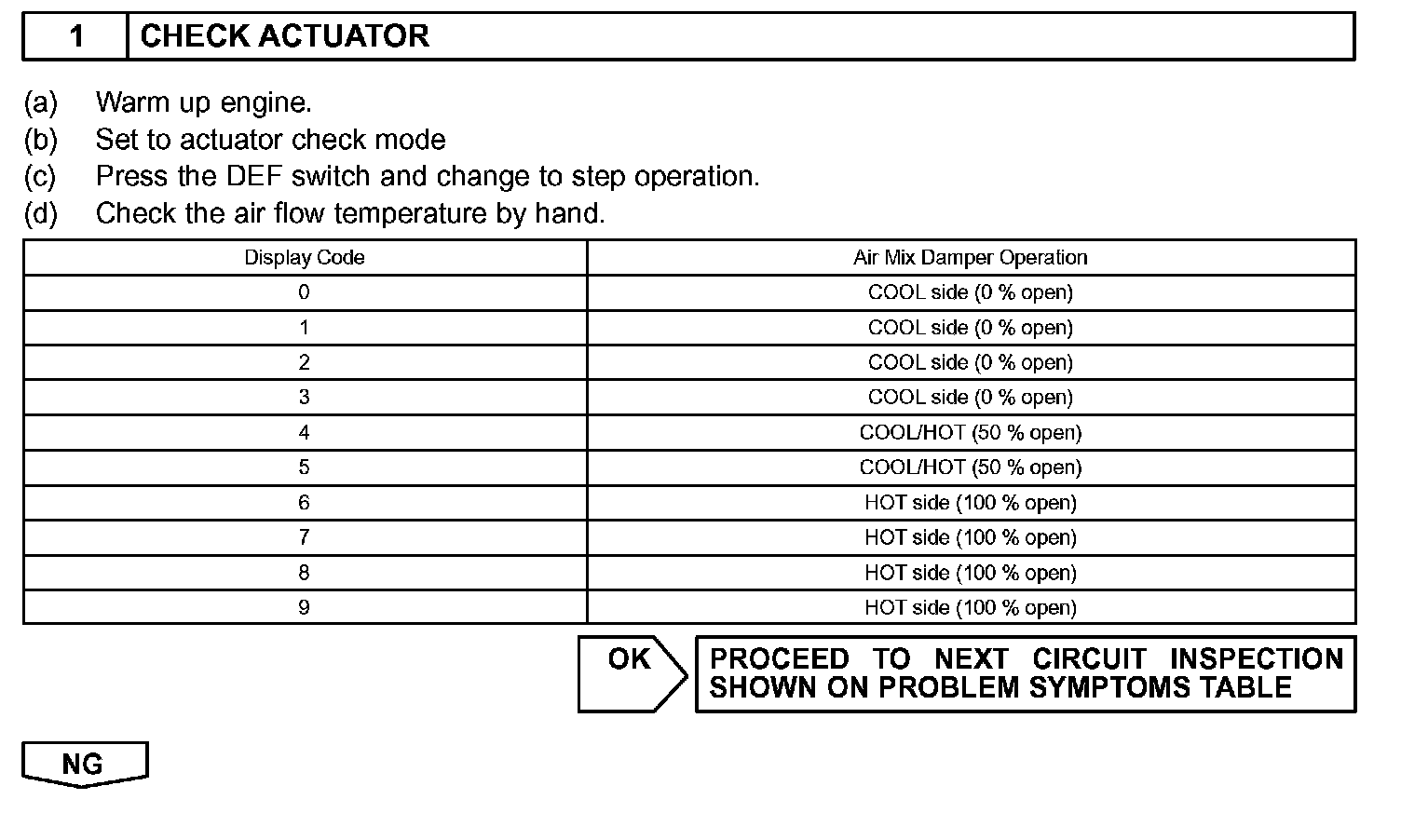

Step 1:

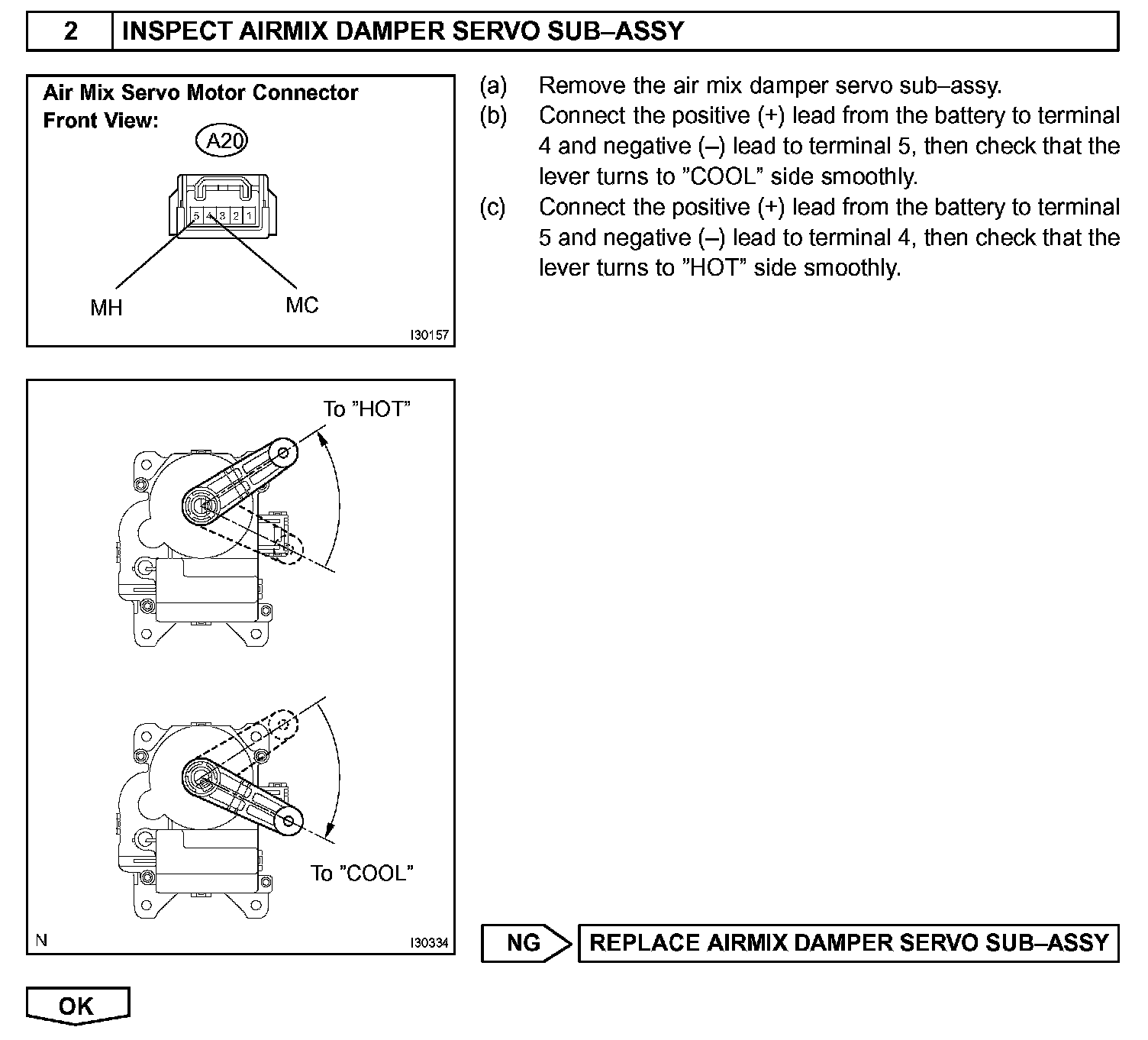

Step 2:

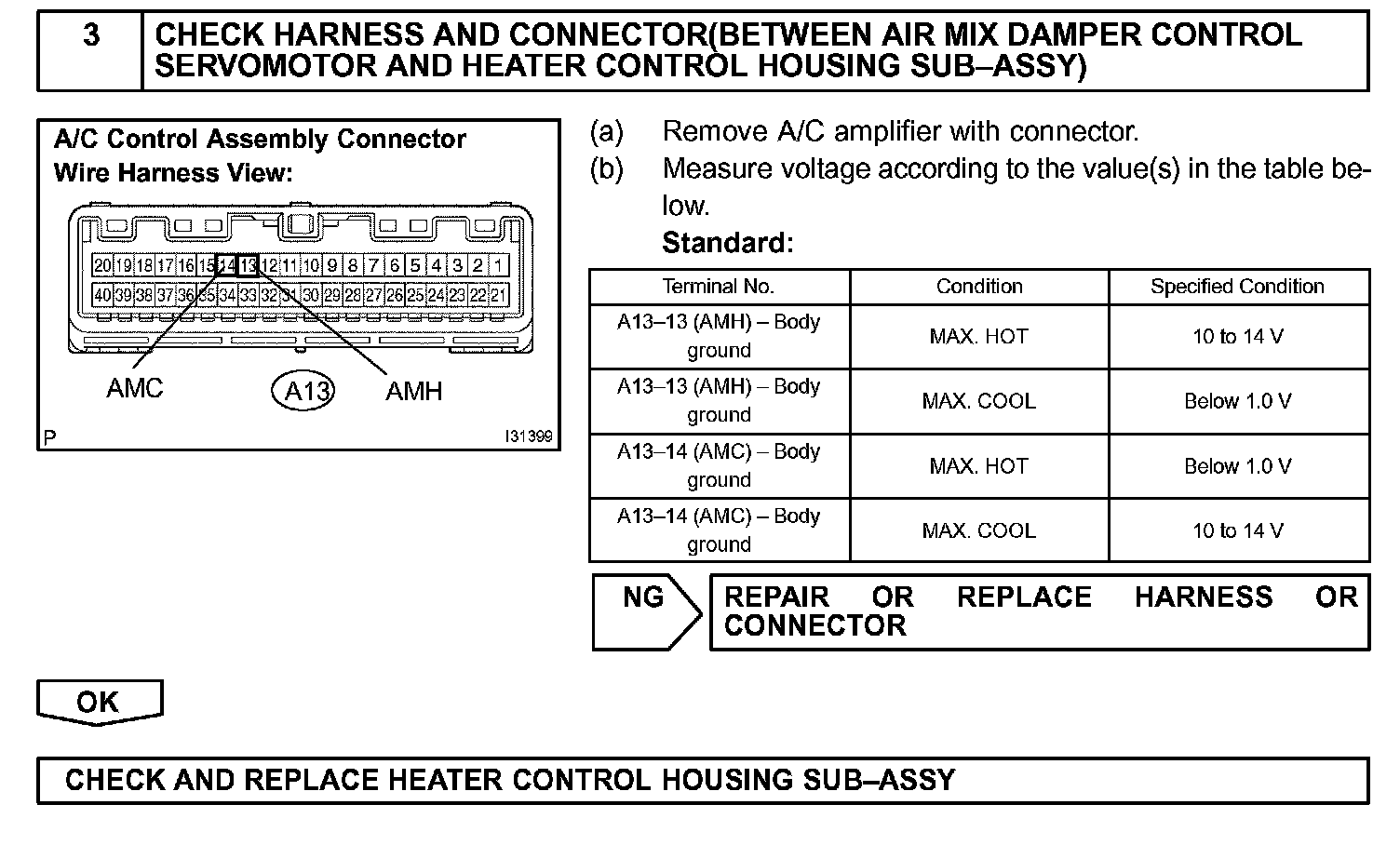

Step 3:

INSPECTION PROCEDURE
