Air Conditioning System

DTC 43 AIR OUTLET DAMPER CONTROL SERVOMOTOR CIRCUIT

CIRCUIT DESCRIPTION

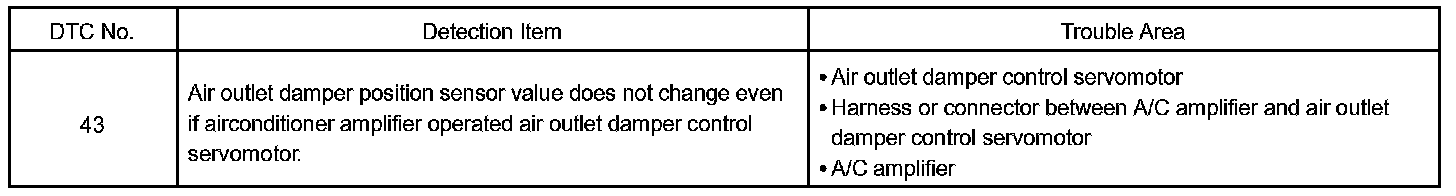

Detection Item:

This circuit turns the servomotor and changes each mode damper position by the signals from the air conditioner amplifier. When the AUTO switch is on, the air conditioner amplifier changes the mode automatically between (FACE), (BI-LEVEL) and (FOOT) according to the temperature setting.

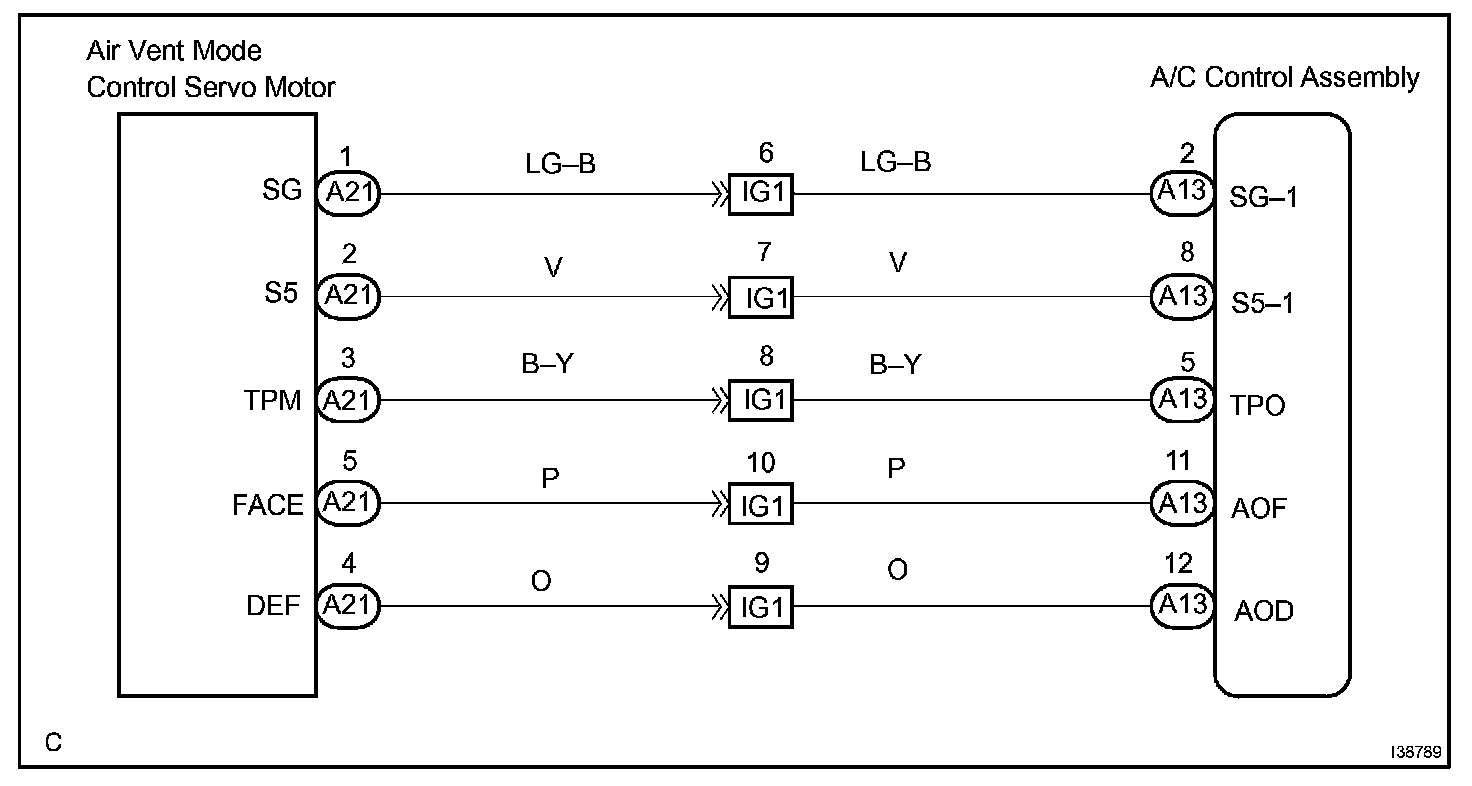

Wiring Diagram:

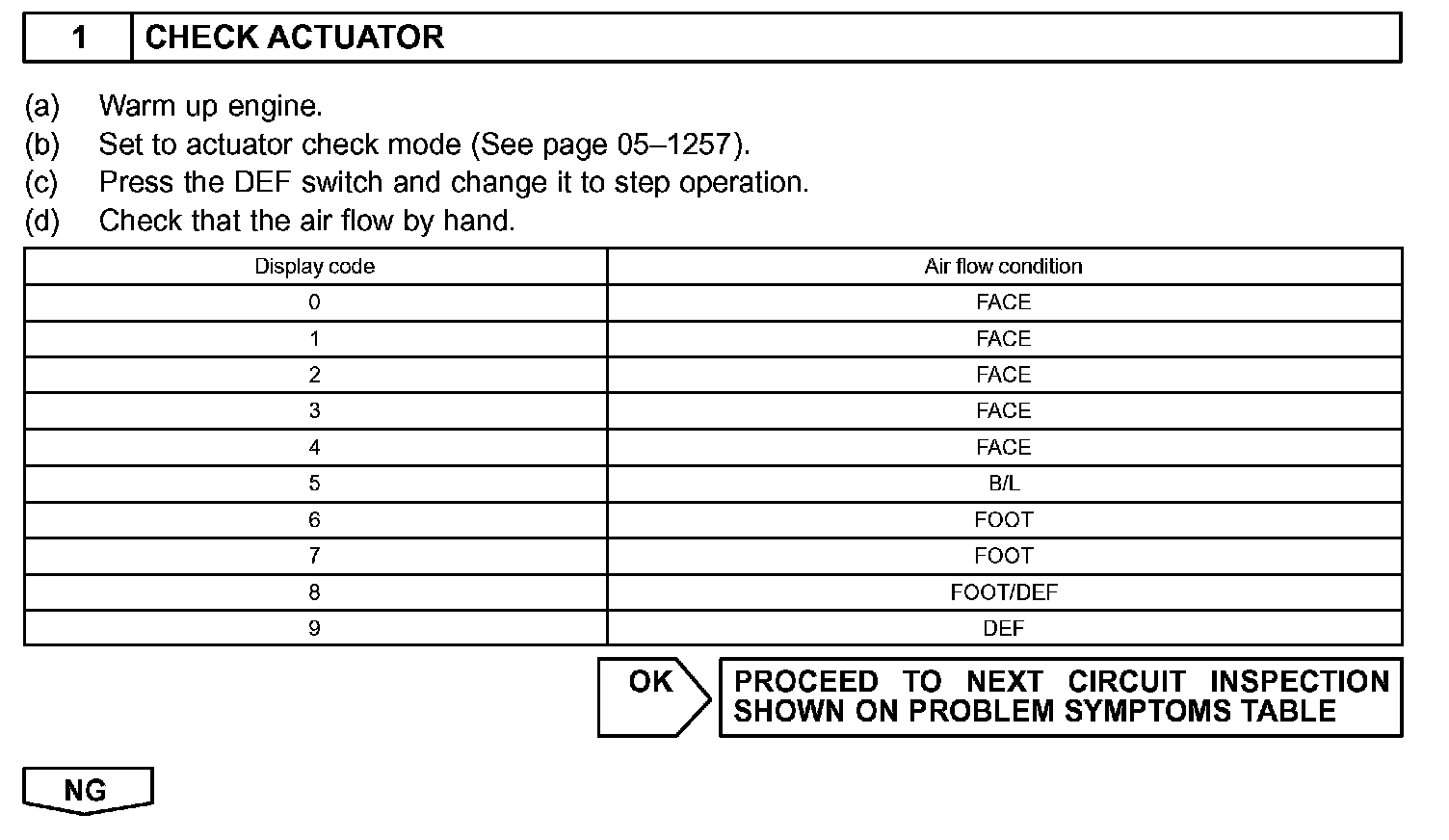

Step 1:

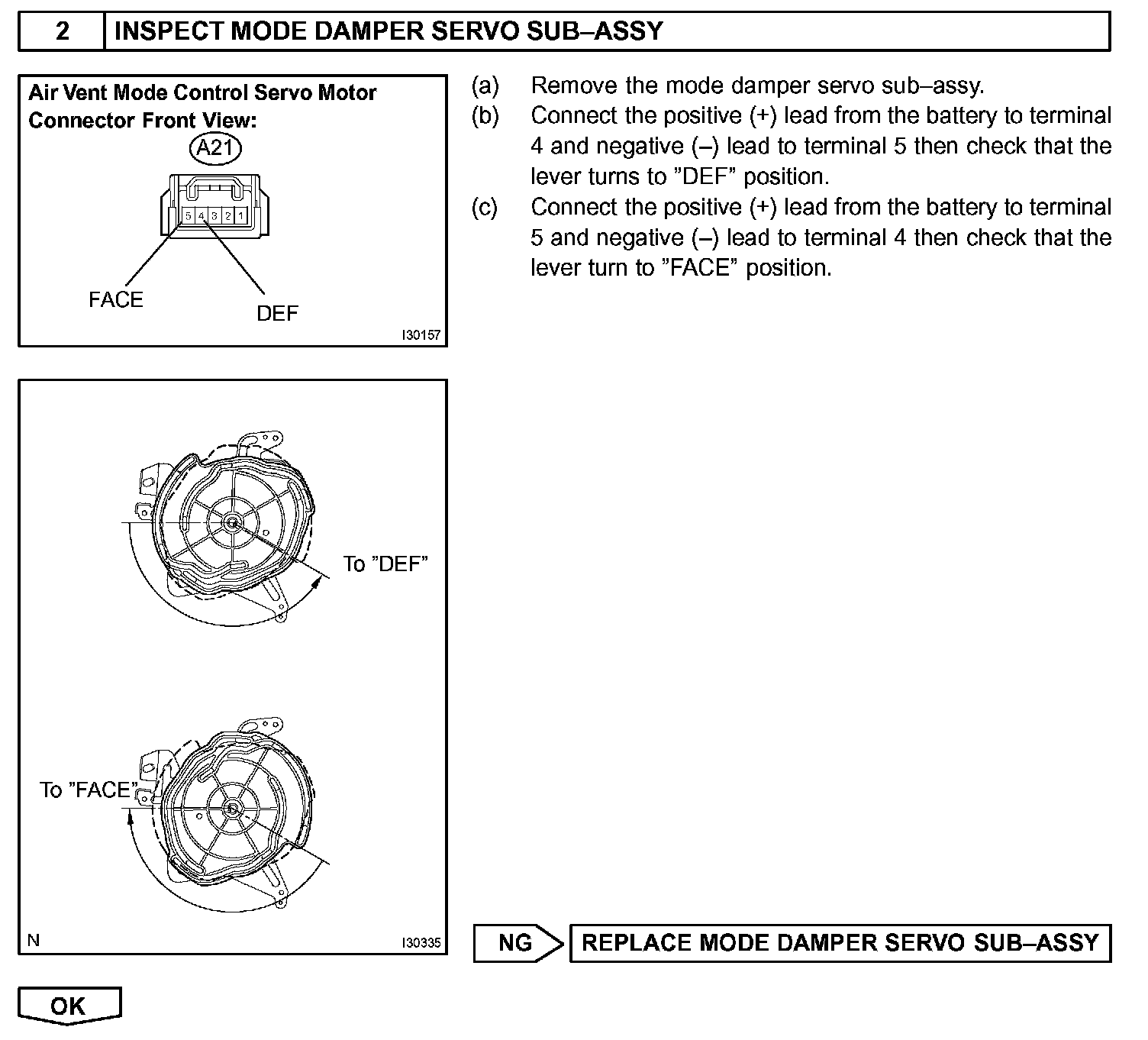

Step 2:

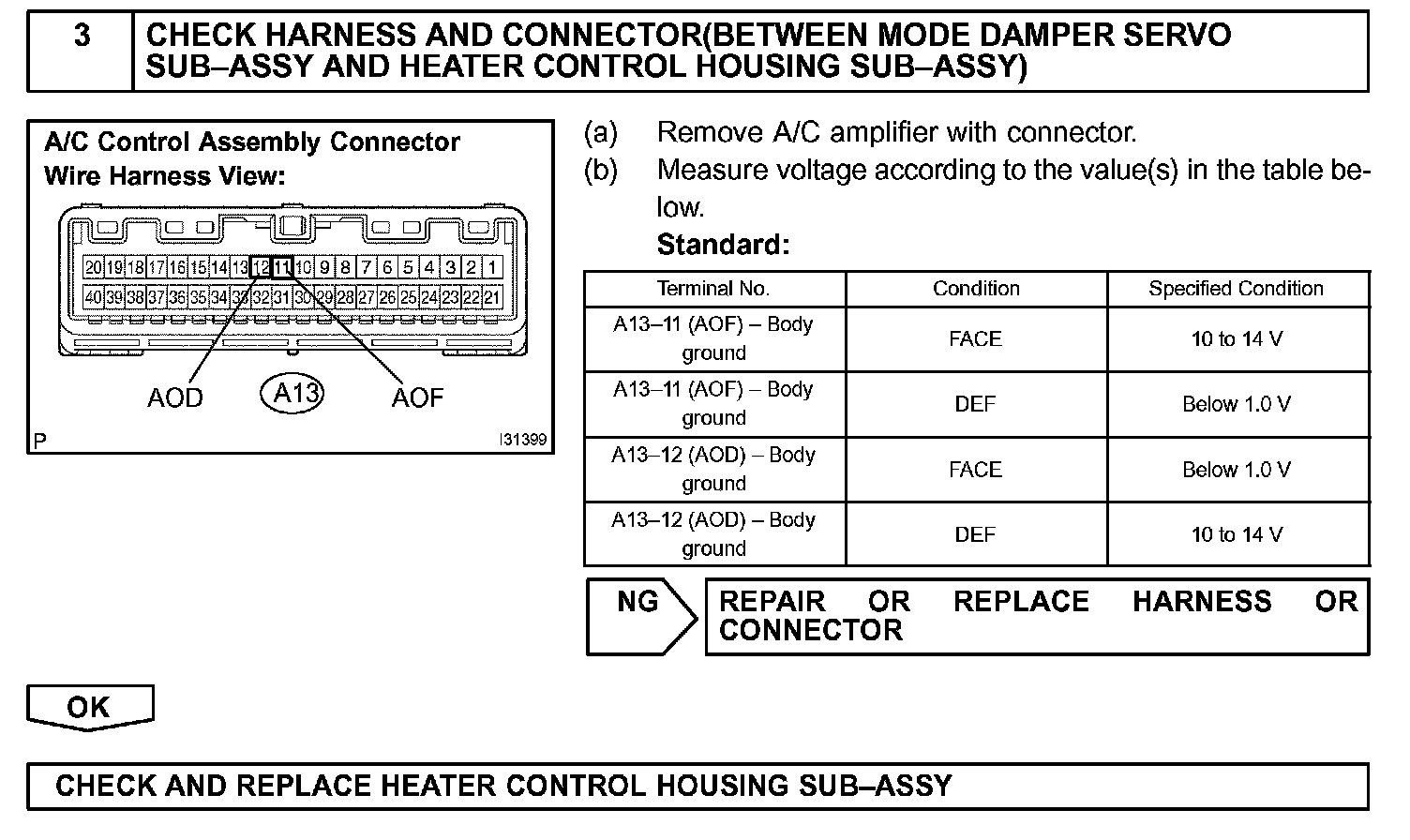

Step 3:

INSPECTION PROCEDURE
