Replacement

REPLACEMENT




1. REMOVE HOOD SUPPORT ROD

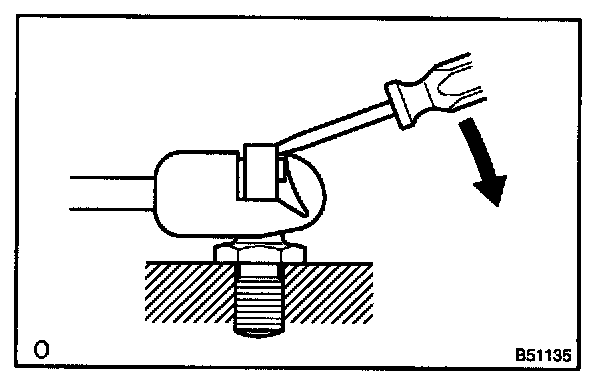

a. Using a screwdriver to hold the left spring, disengage the upper and lower parts of the support rod, and then remove the hood support rod.

NOTE: Removal should be done while the hood is being held up.

2. INSTALL HOOD SUPPORT ROD

NOTE:
- Install a metal socket onto the hood except a resinous one onto the body.
- After the installation, make sure that the socket is securely attached.
