Brakes - Brake Pedal Vibration on Initial Downstroke

BRAKES
BR001-06
REVISED

Title:
BRAKE PEDAL VIBRATION FEELING

Models:
'02 - '04 Camry

January 11, 2006

TSB REVISION NOTICE:

^ January 13, 2006: This TSB has been updated to include a "TSB UPDATE NOTICE" reference to the preceding TSB on this subject.

Previous versions of this TSB should be discarded.

TSB UPDATE NOTICE:
The information contained in this TSB supercedes TSB No. BR002-05.
TSB No. BR002-05 is now obsolete and should be discarded.

Introduction

In some cases, the customer may feel slight vibration in the brake pedal during initial pedal stroke. The vehicle does not have to be in motion to feel the vibration. A new brake master cylinder service part was developed to address this slight vibration concern.

Applicable Vehicles

2002 - 2004 model year Camry vehicles with 4-cylinder engines and without ABS.

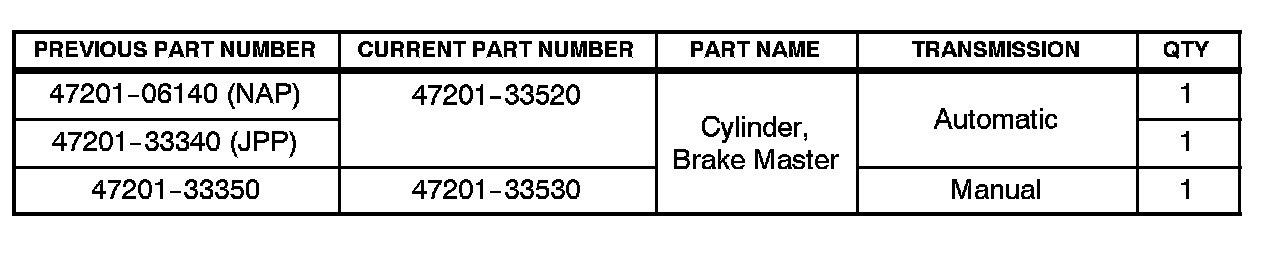

Parts Information

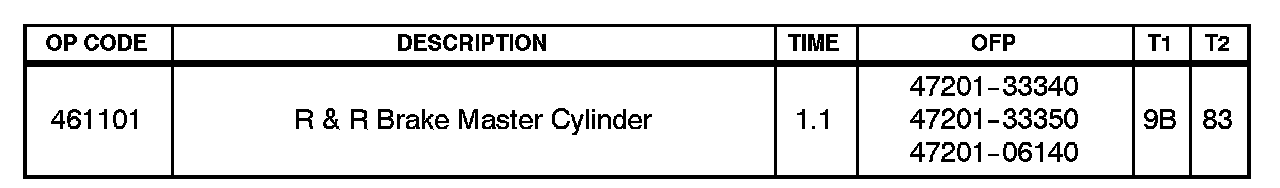

Warranty Information

Applicable Warranty*:
This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.

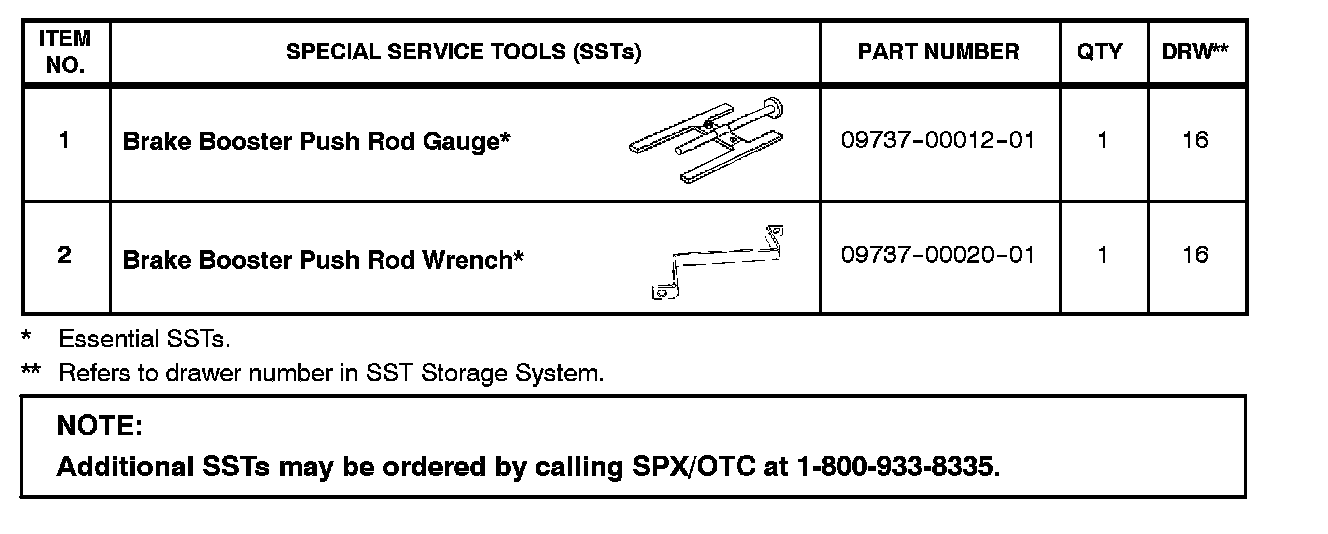

Required SSTs

Repair Procedure

Replace the master cylinder according to the procedures in the Technical Information System (TIS), 2002 - 2004 model year Camry Repair Manual: Brake: Brake Master Cylinder: Overhaul.
