Cruise Main Indicator Light Circuit

CRUISE MAIN INDICATOR LIGHT CIRCUIT

CIRCUIT DESCRIPTION
When the cruise control main switch is turned ON, CRUISE MAIN indicator light comes on.

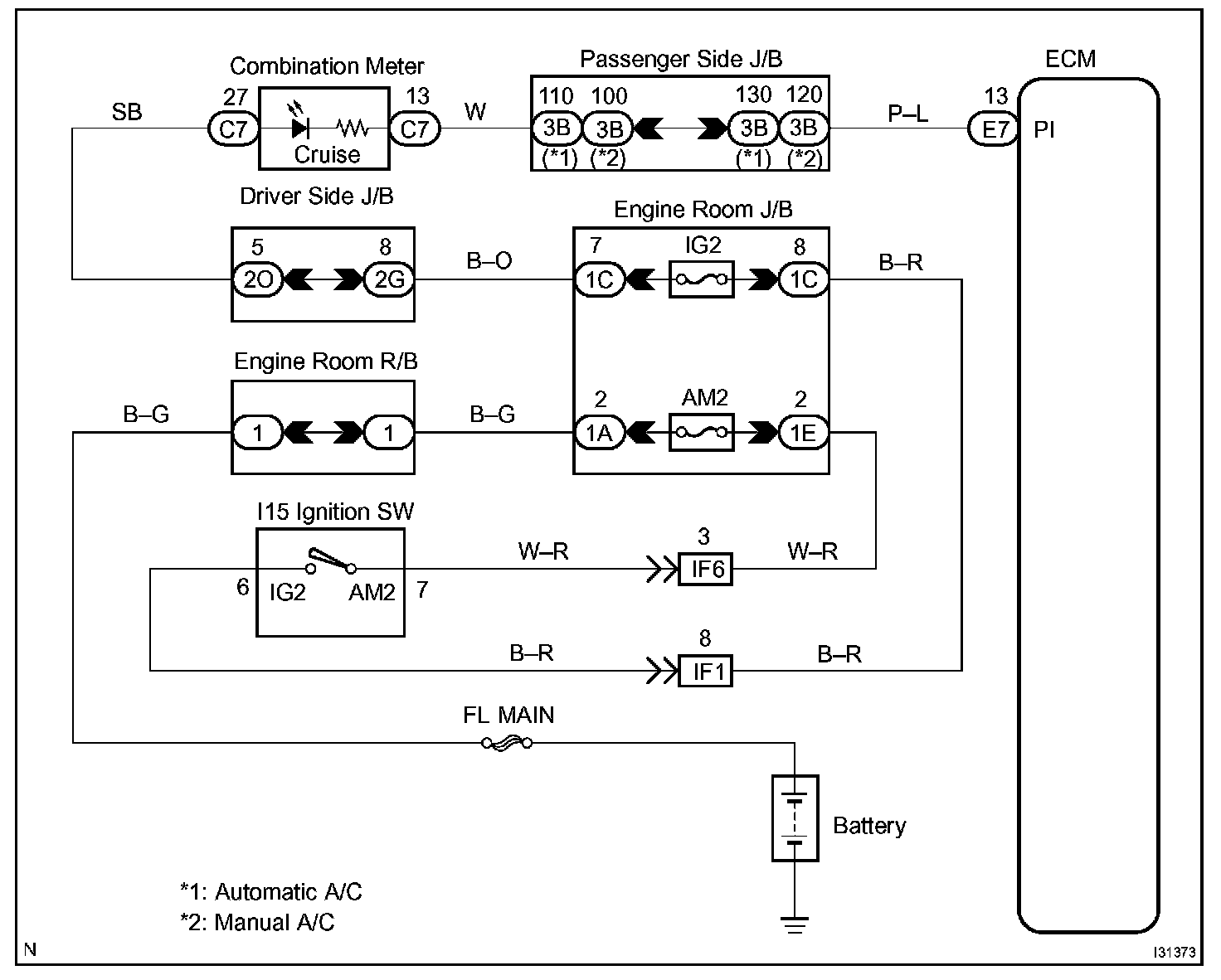

Wiring Diagram:






Step 1 - 3:

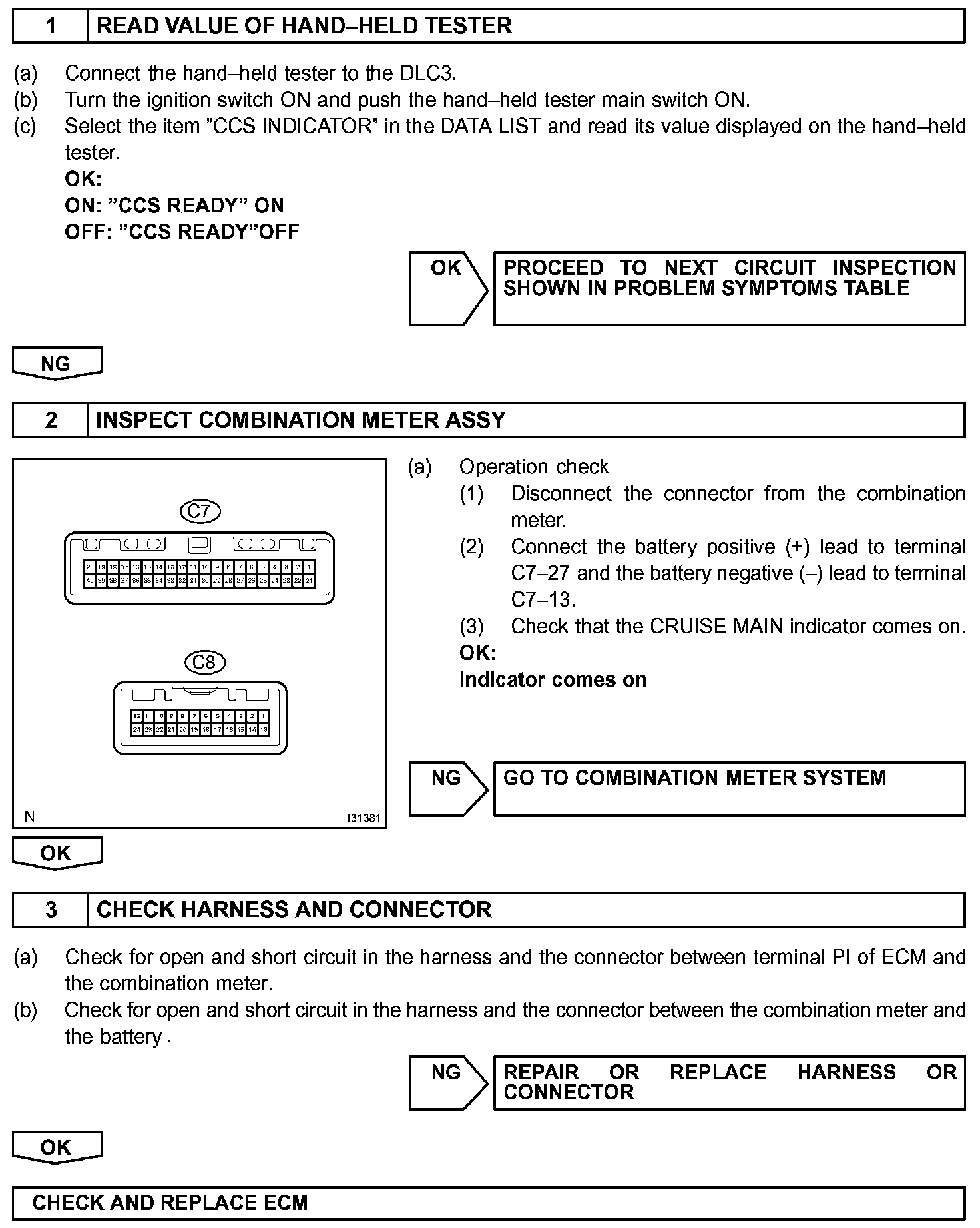

INSPECTION PROCEDURE
