Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
Camry L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

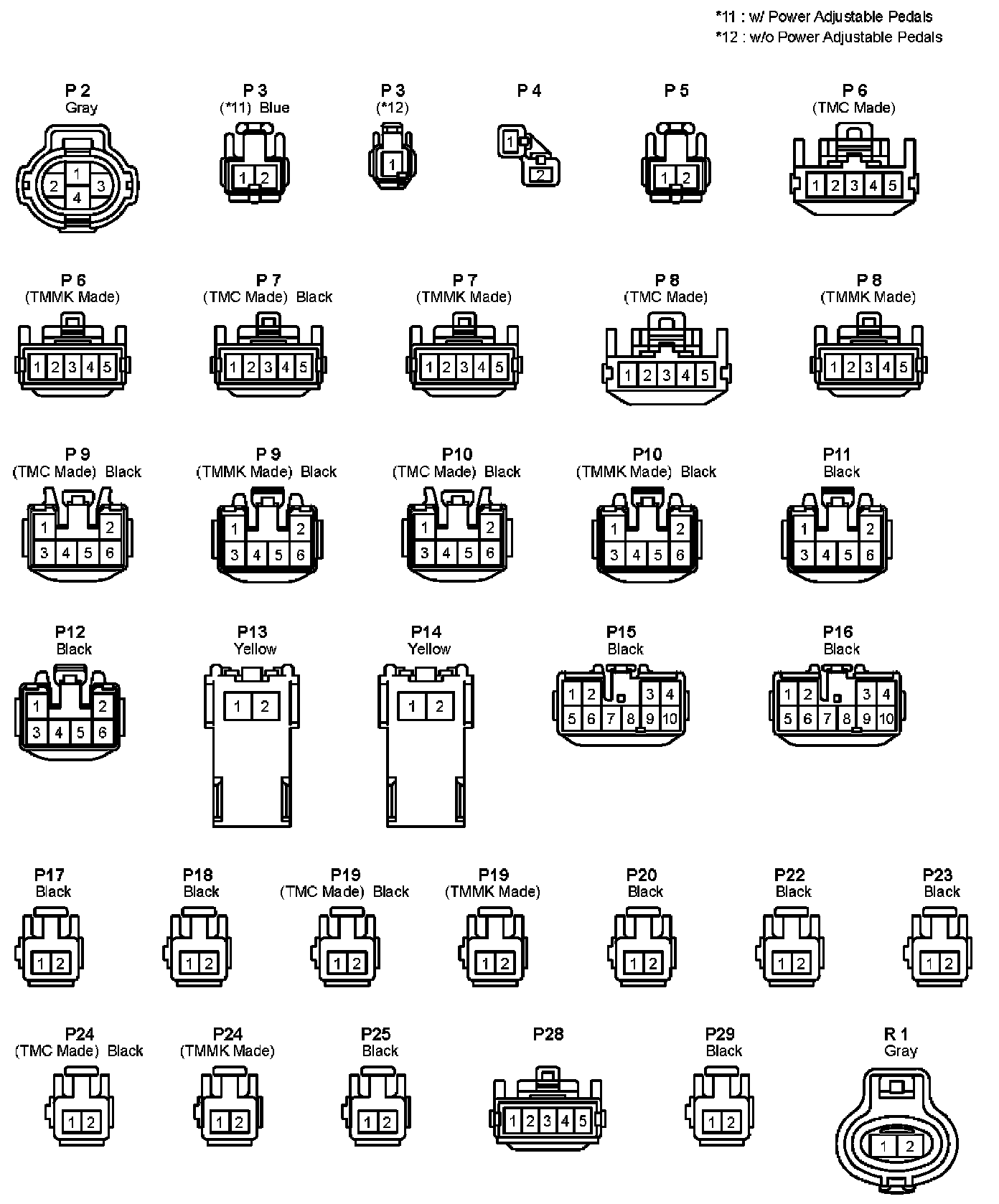

Connector Views By Connector Number
>>
P2 - R1
P2 - R1
P2 - R1:
