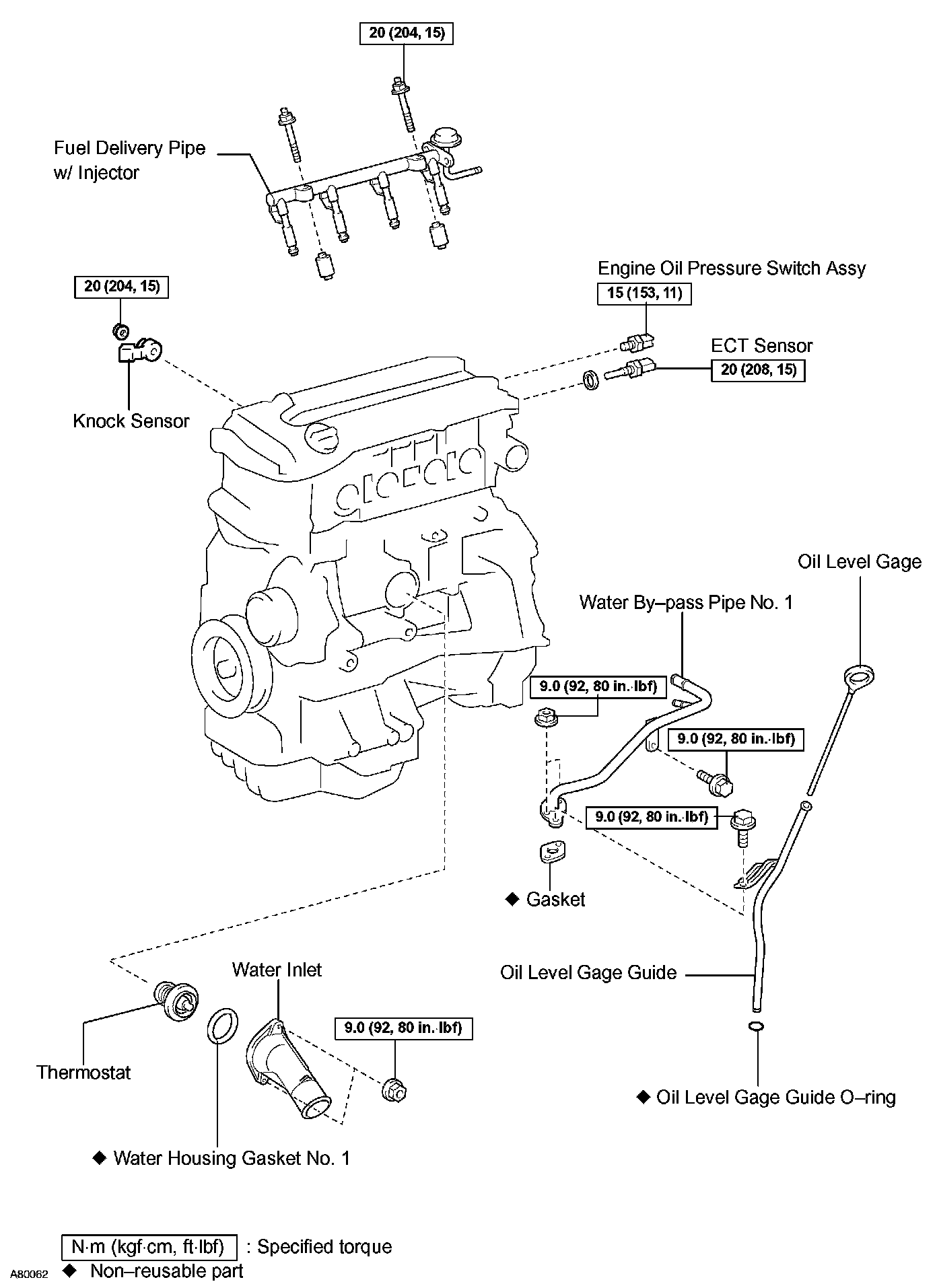

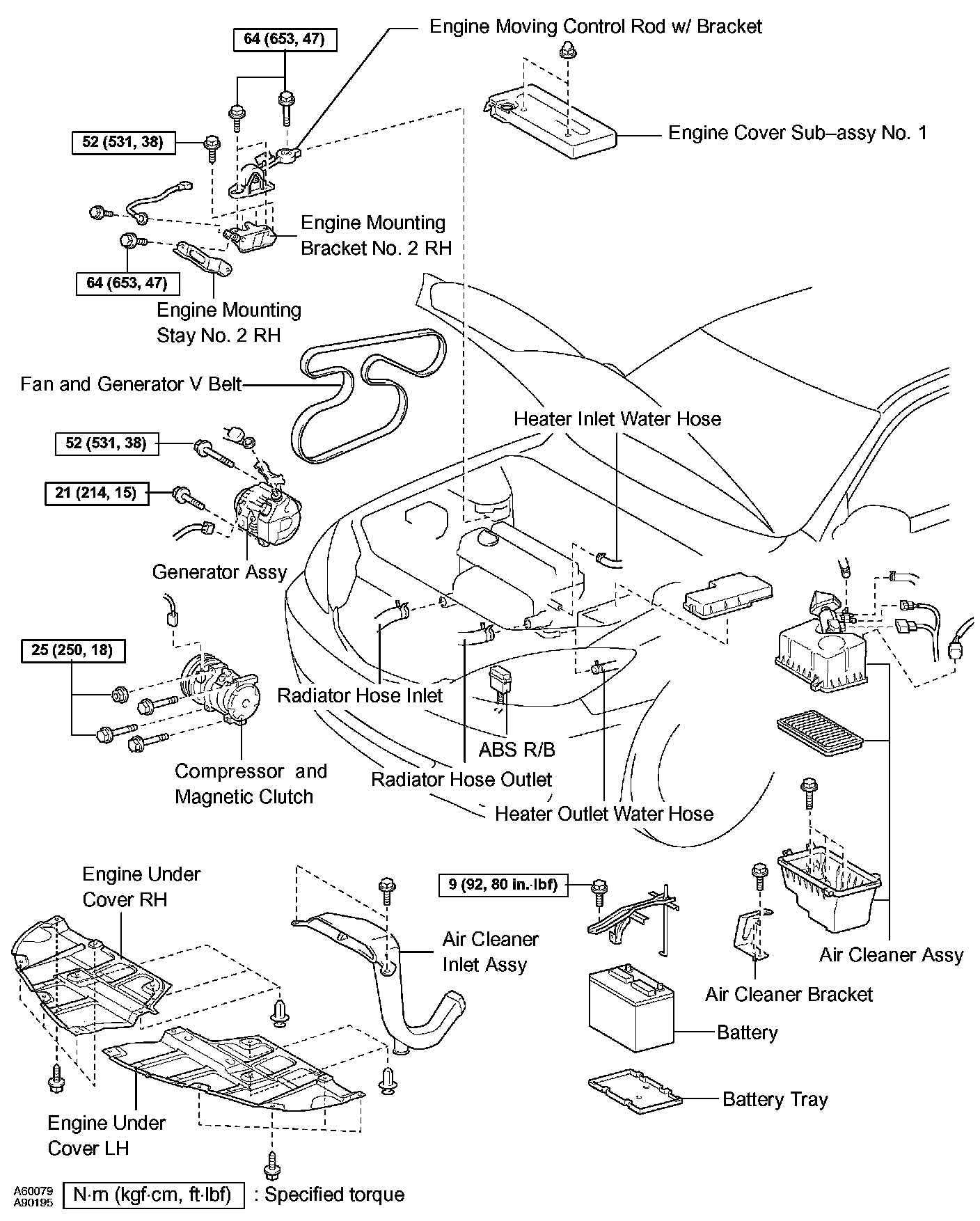

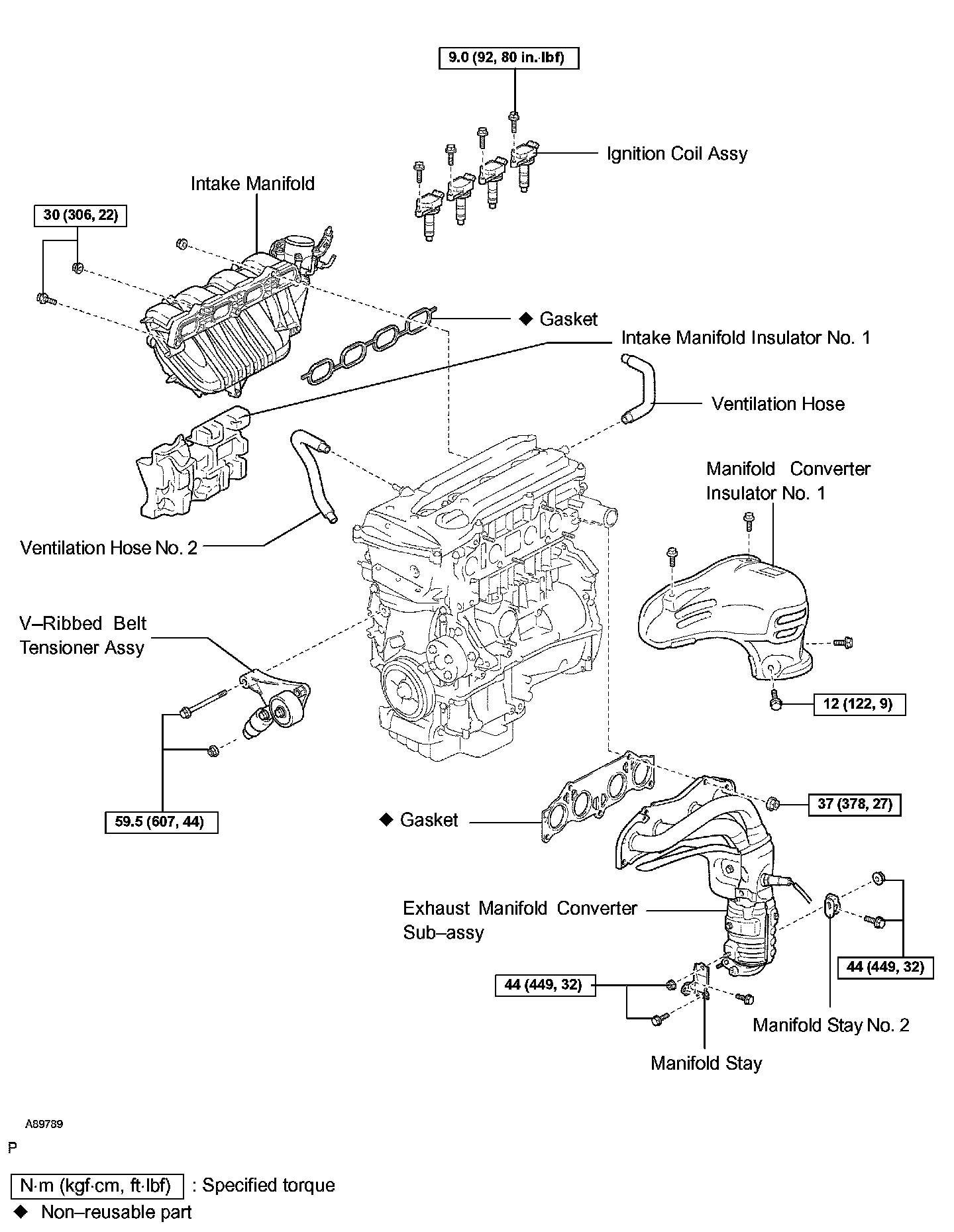

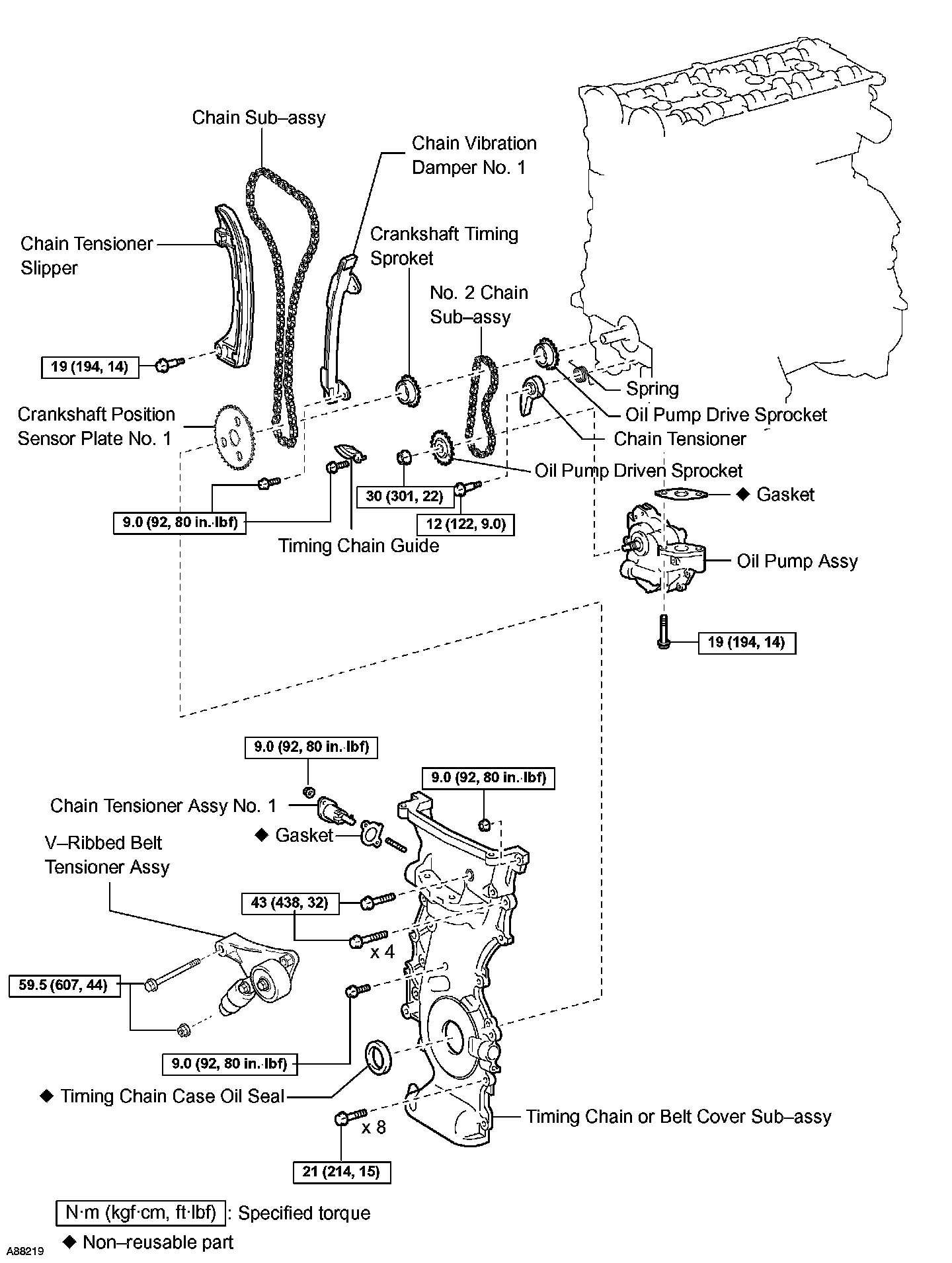

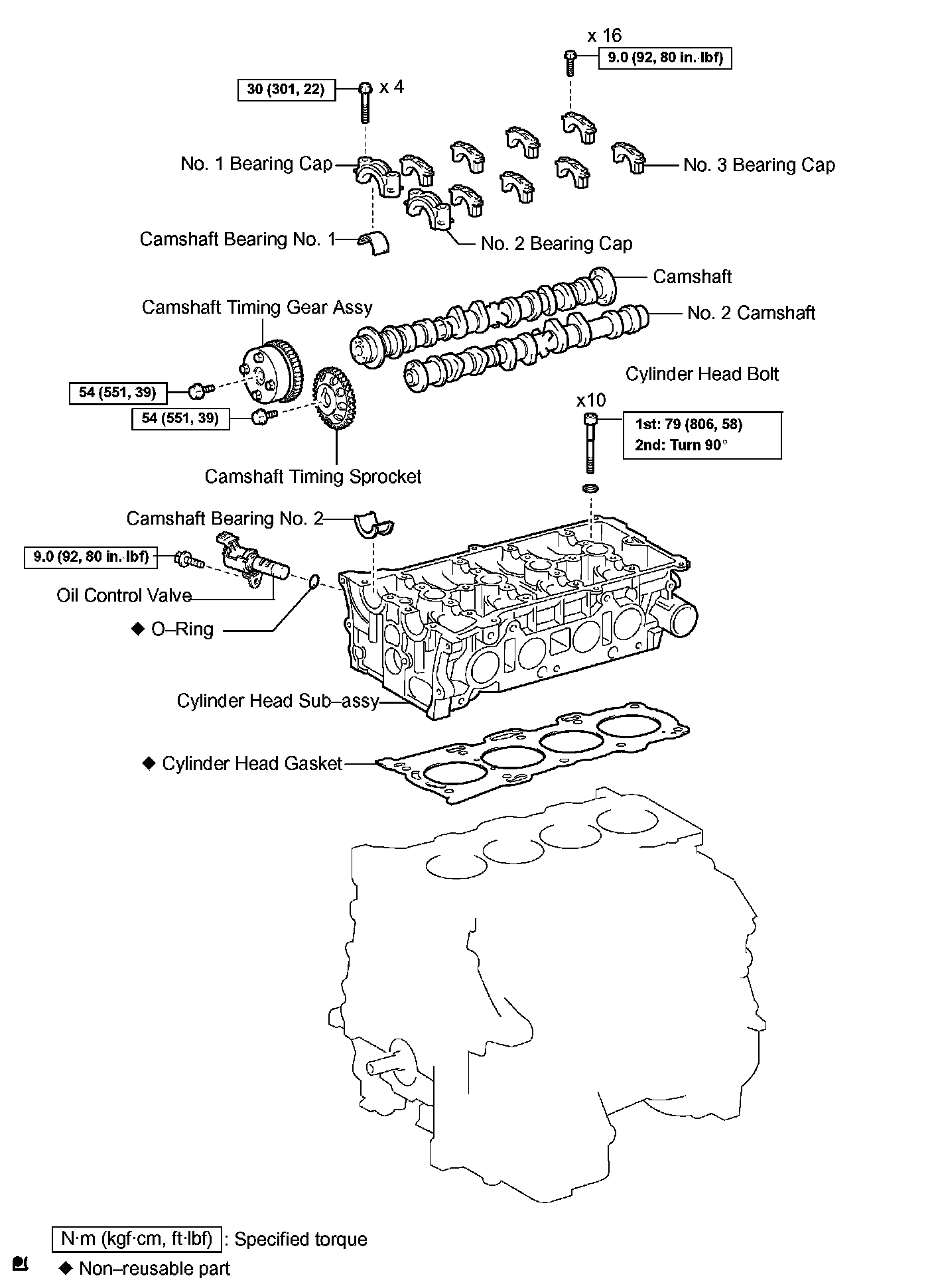

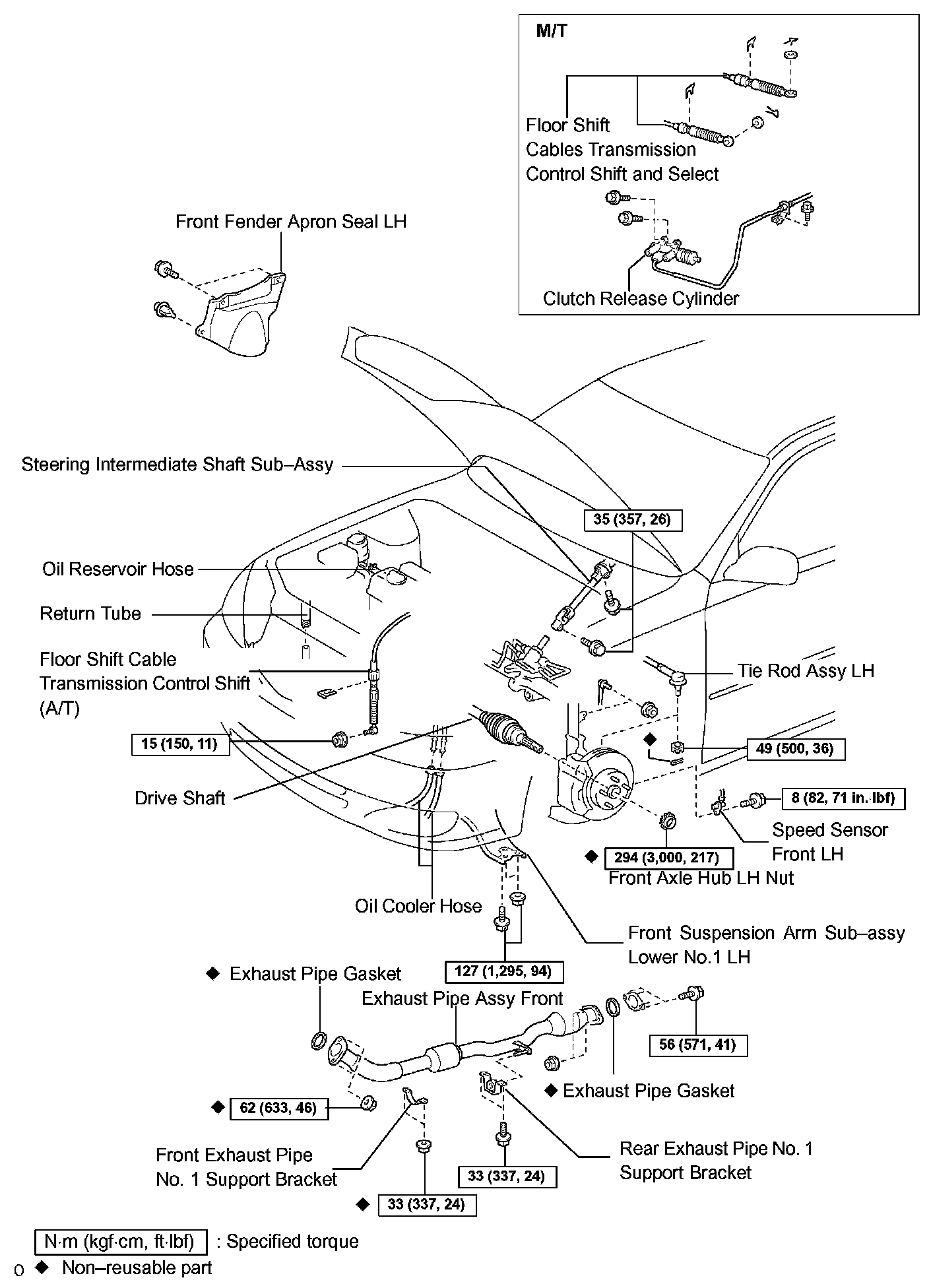

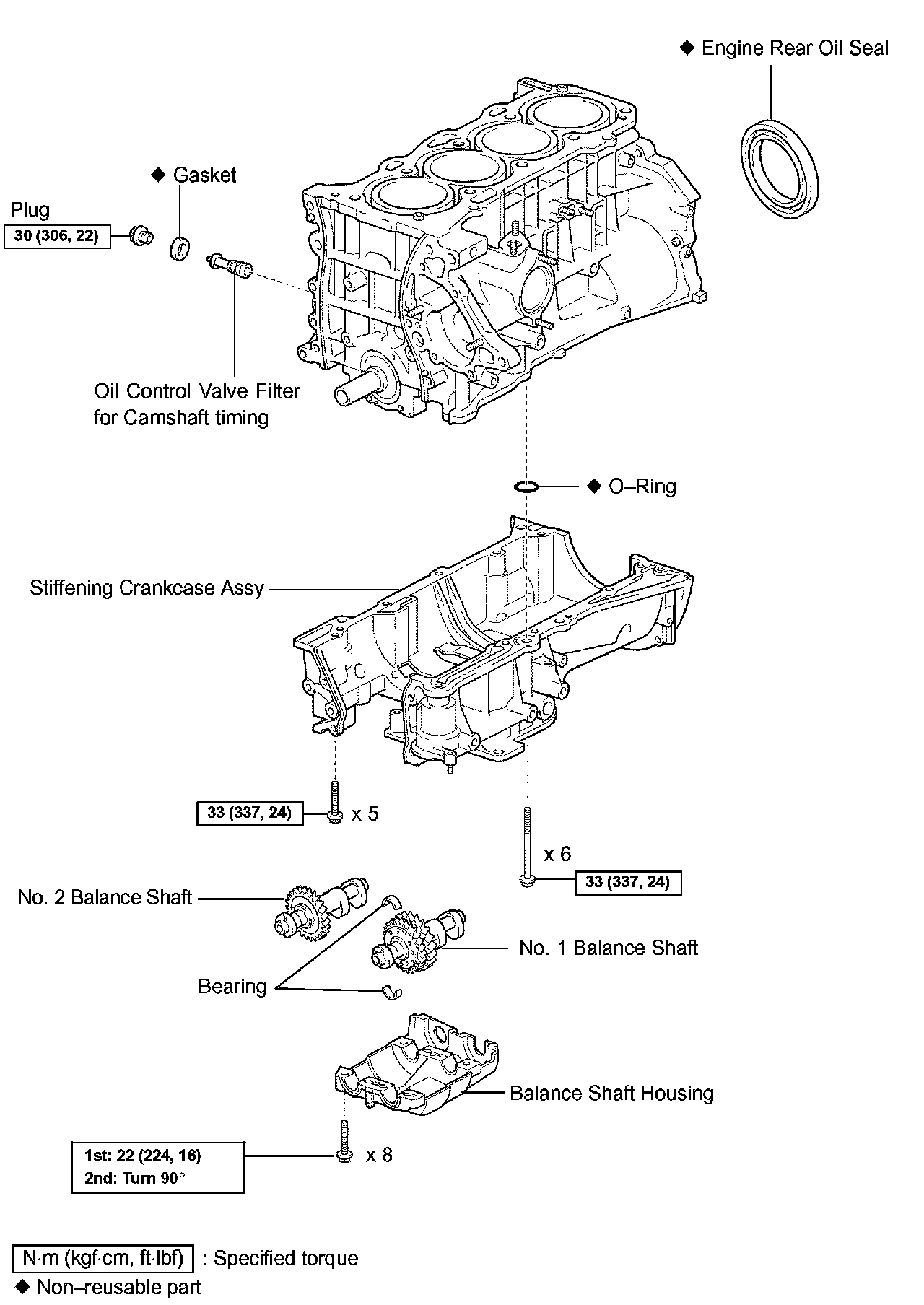

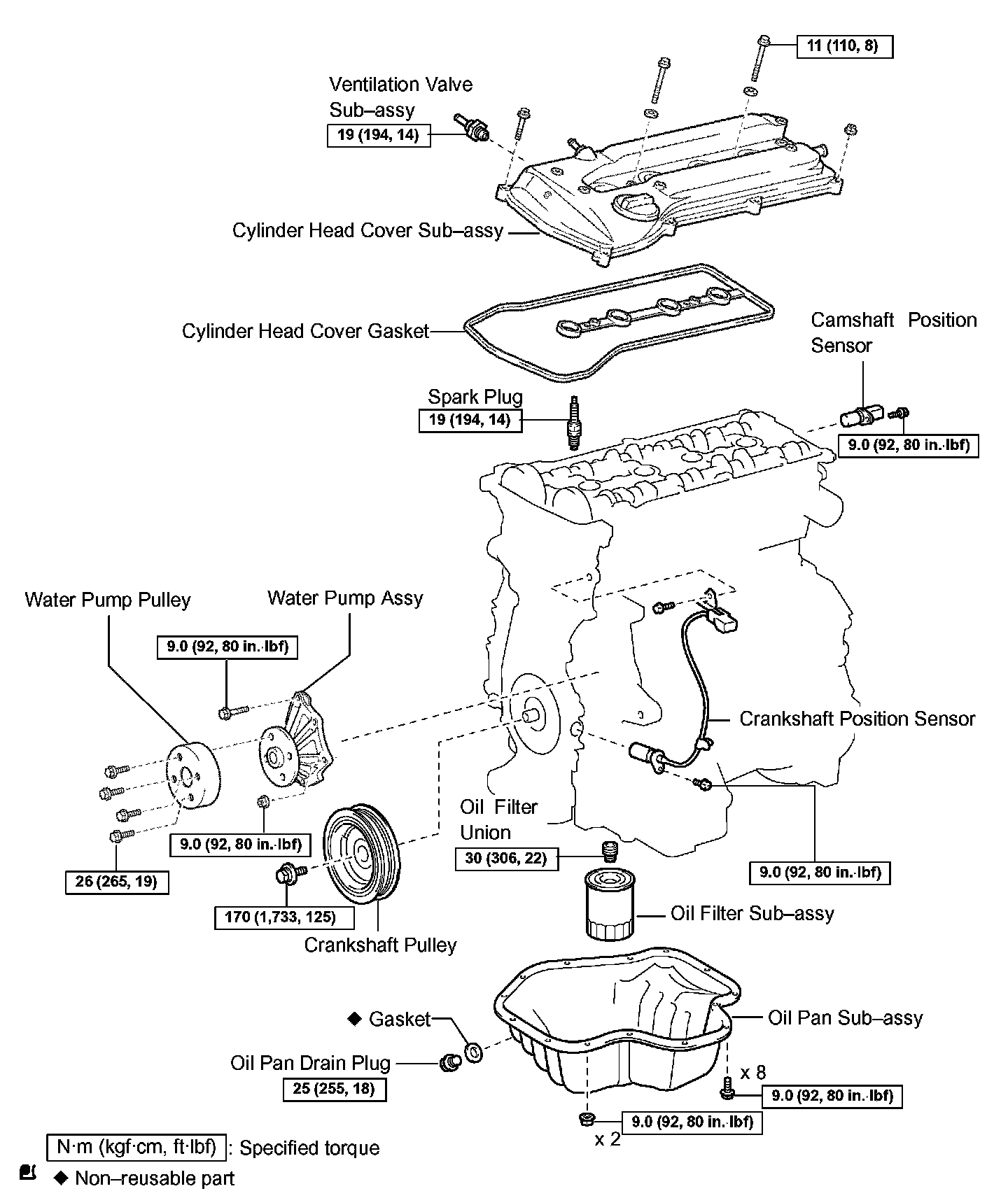

Partial Engine Assembly

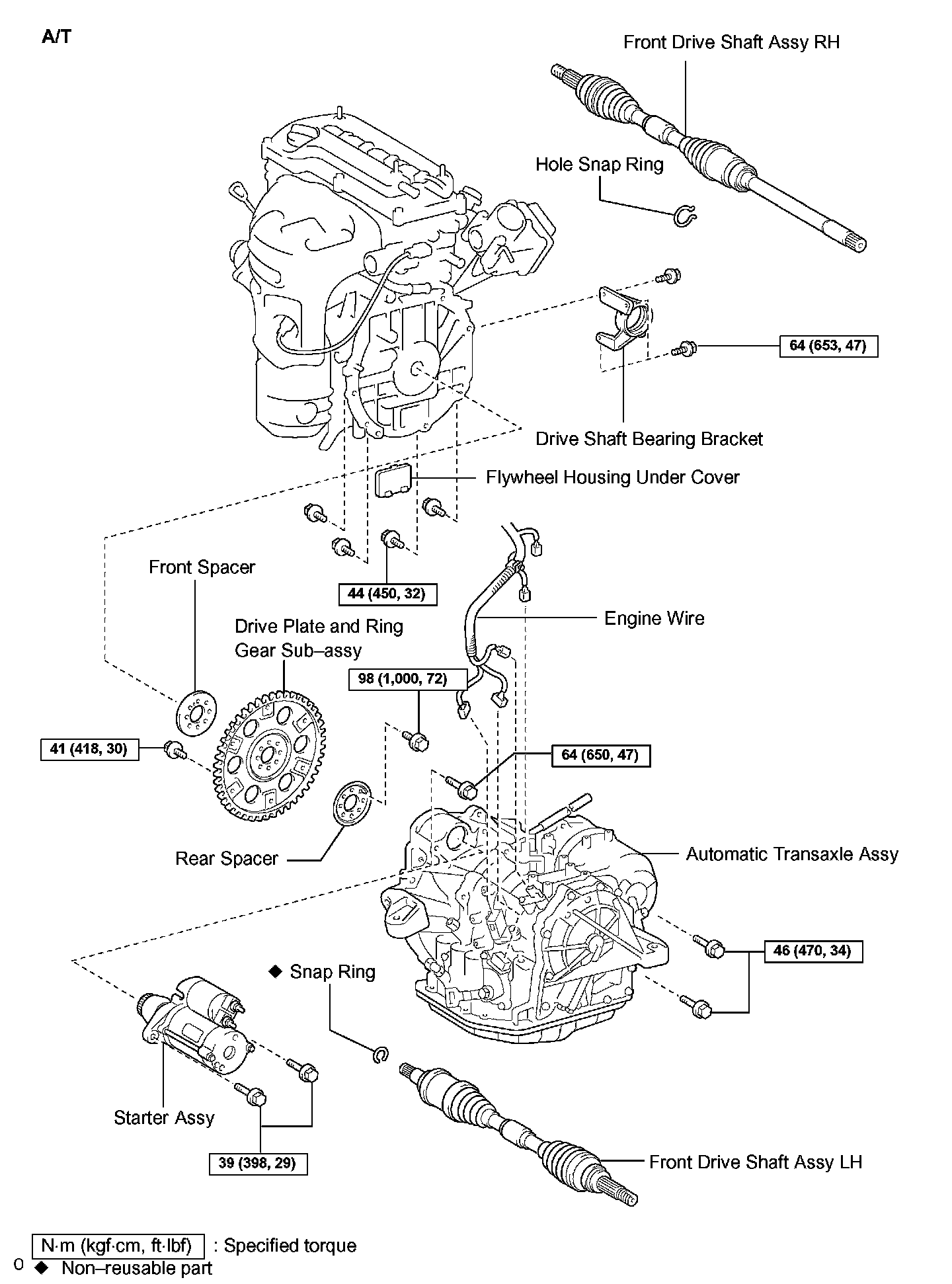

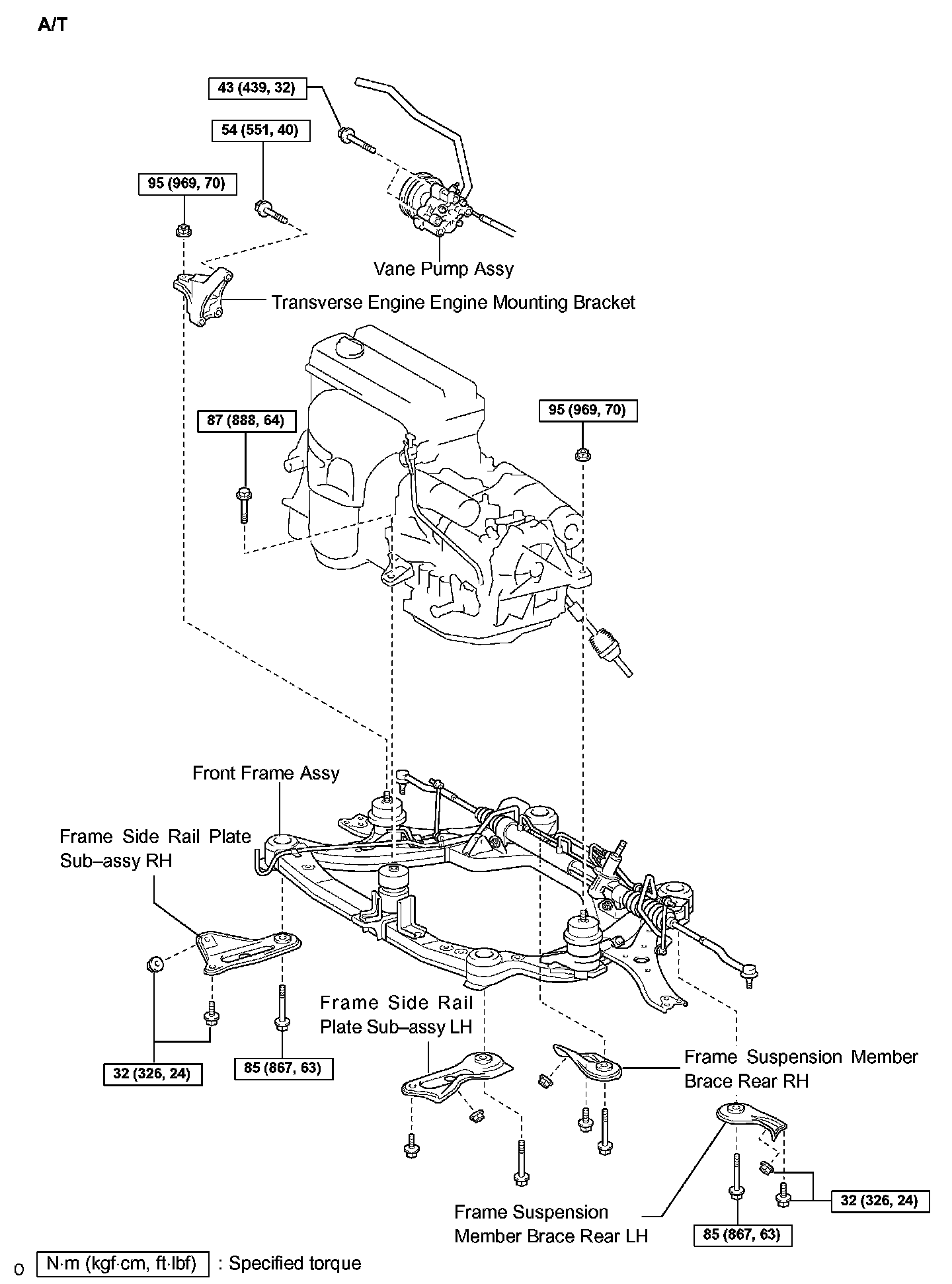

With A/T:

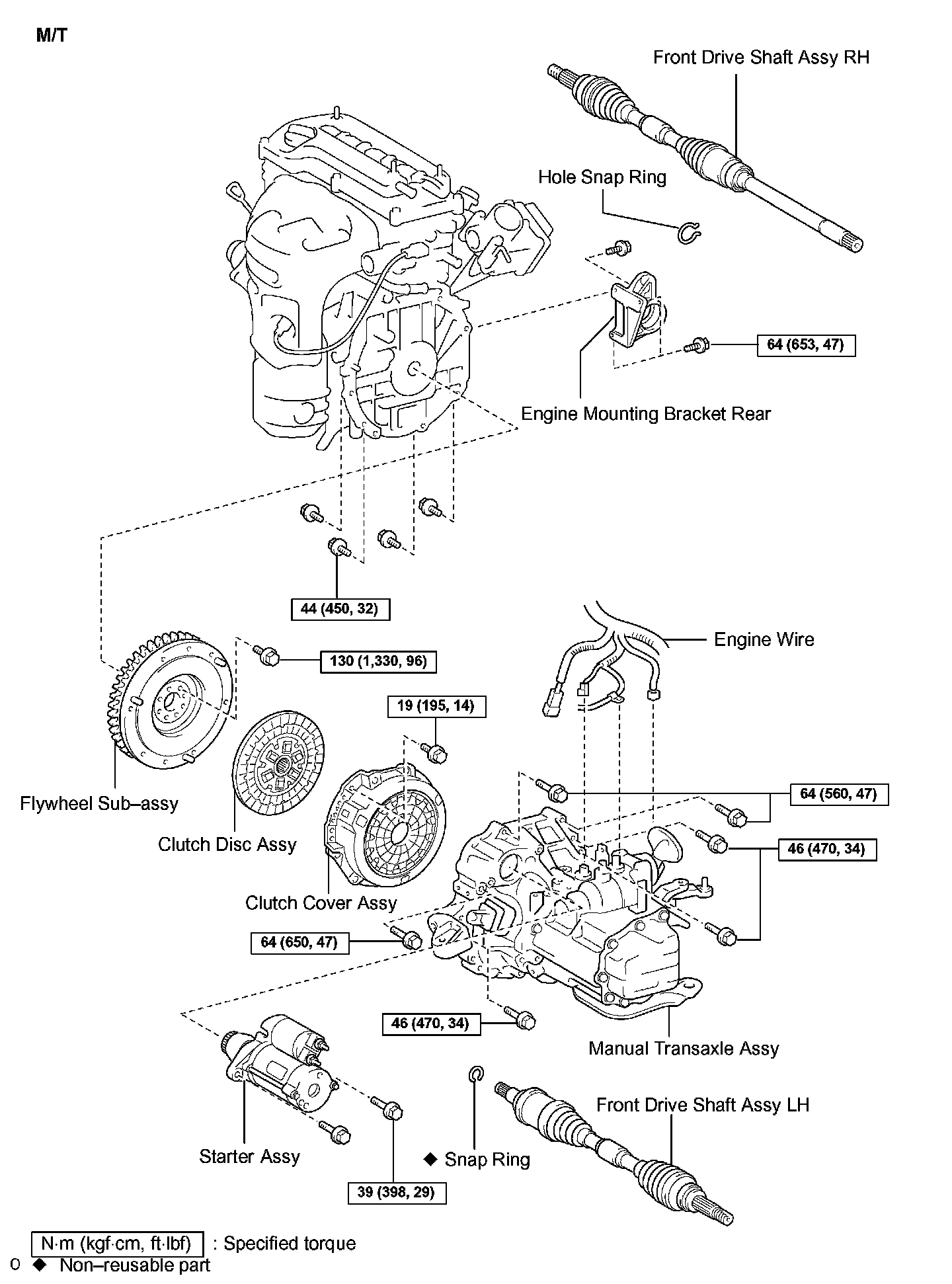

With M/T:




With A/T:

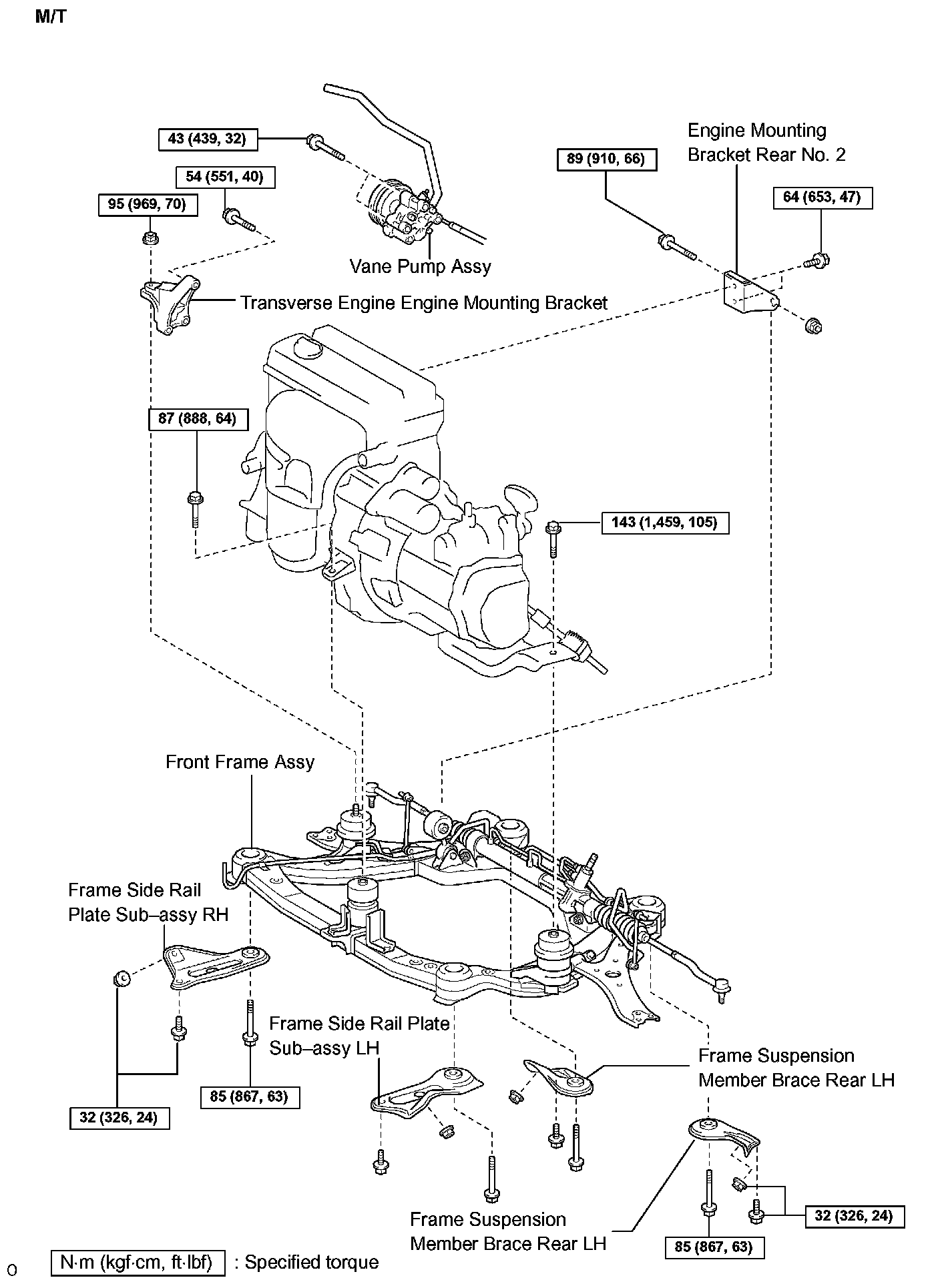

With M/T:




PZEV:




Except PZEV:




















PARTIAL ENGINE ASSY REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
