System Diagram

FUSE BOX LAYOUT

Engine Room Junction Block Assy

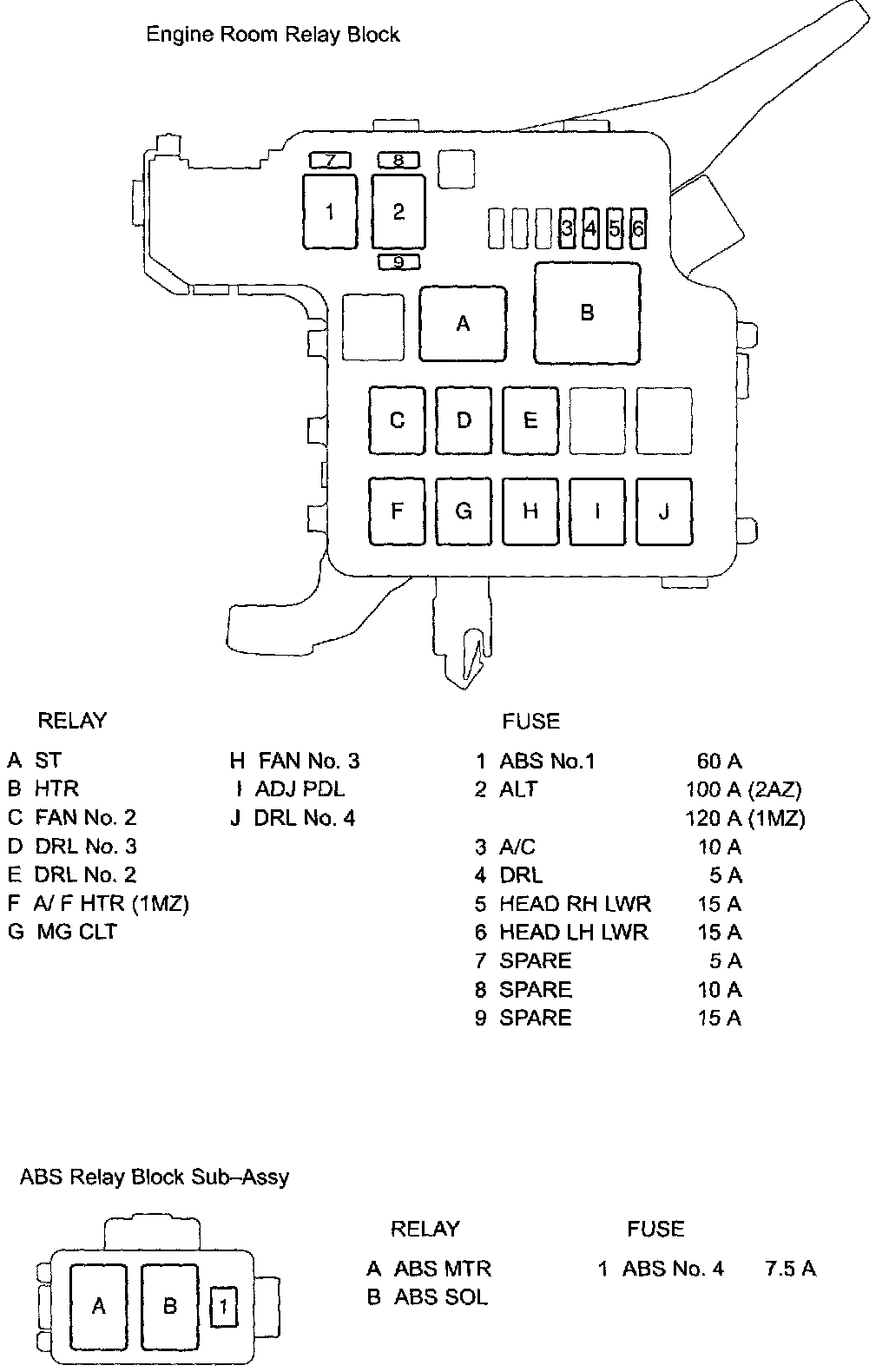

Engine Room Relay Block





Instrument Panel Junction Block Assy

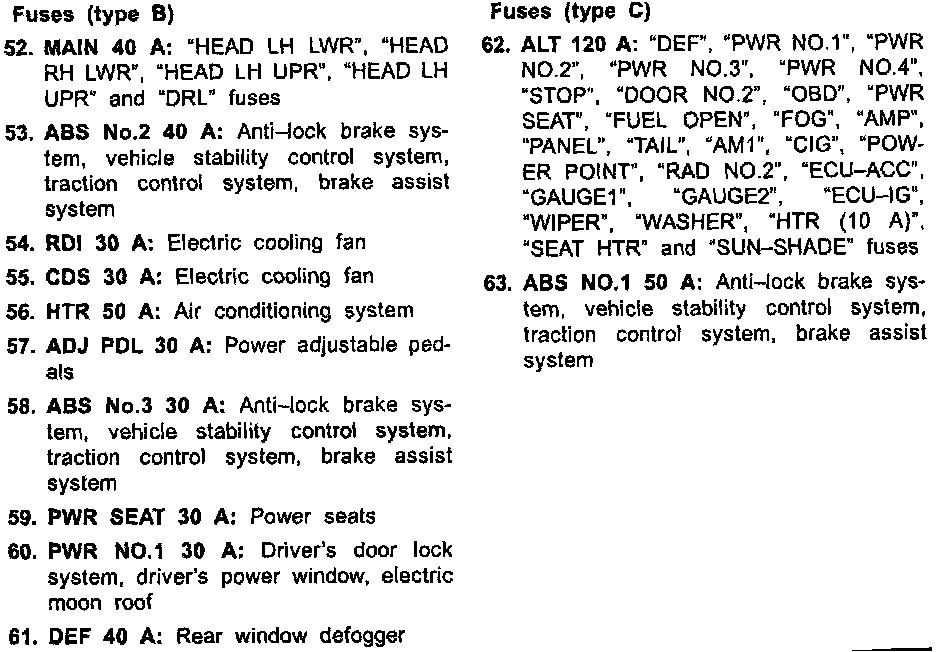

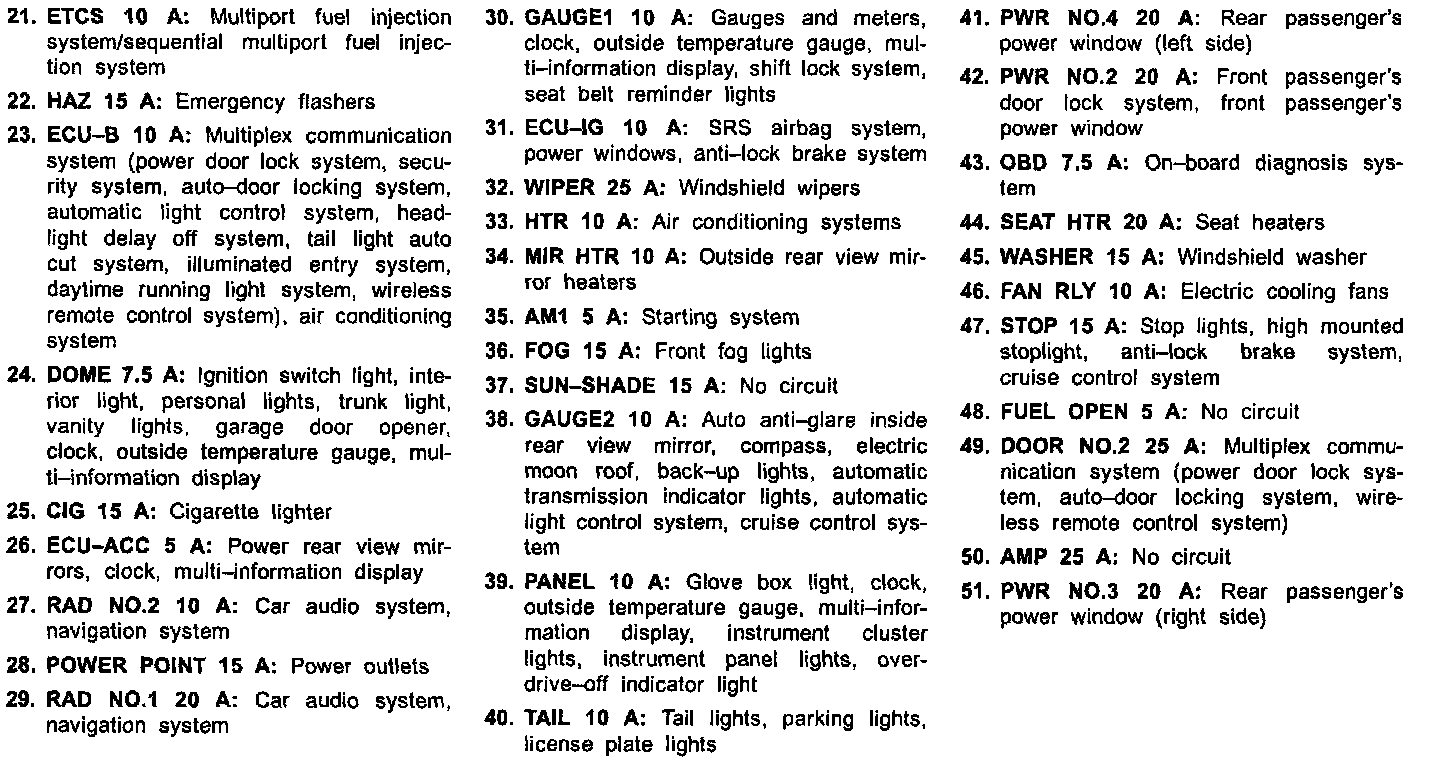

Fuse Assignments
