Radiator: Testing and Inspection

RADIATOR ASSY
ON-VEHICLE CLEANING

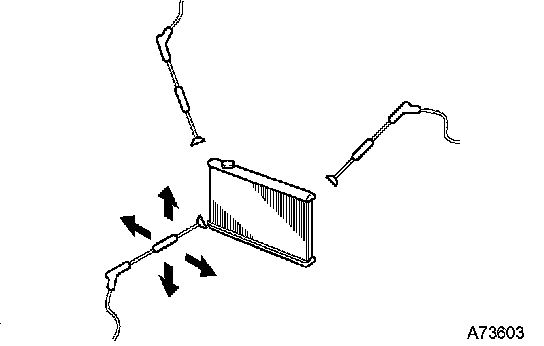

1. INSPECT FINS BLOCKAGE
If the fins are clogged, wash them with water or a steam cleaner.
Dry with compressed air.

NOTICE:
^ If the distance between the steam cleaner and the core is too close, the fins may become damaged.
^ Keep the following injection distance.





Standard

^ If the fins are bent, straighten them with a screwdriver or pliers.
^ Never apply water directly onto the electronic components.
