Cylinder Head Torque & Sequence

Cylinder Head Bolt Torque

79 Nm(58 ft. lbs.)Initial +90°




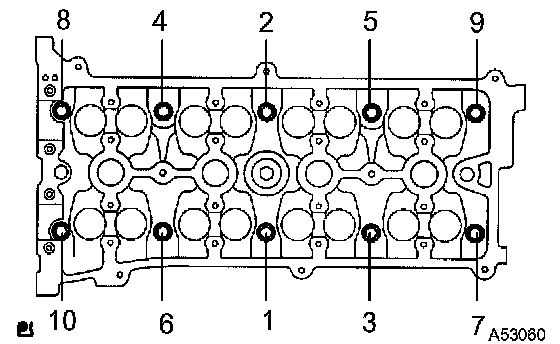

Sequence


CAMSHAFT BEARING





Examine the front marks and numbers of the 5 bearing caps and install them. Then install the 10 bearing cap bolts. Uniformly tighten the bolts in the sequence shown in the illustration.
Torque
30 Nm (301 kgf-cm, 22 ft. lbs.) for bearing cap No. 1
9.0 Nm (92 kgf-cm, 80 inch lbs.) for bearing cap No. 3

INTAKE MANIFOLD
INSTALL INTAKE MANIFOLD
Install a new gasket and the intake manifold with the 5 bolts and 2 nuts.
Torque 30 Nm (306 kgf-cm, 22 ft. lbs.)

CRANKSHAFT PULLEY
Using SST, tighten the bolt.
Torque 170 Nm (1,733 kgf-cm, 125 ft. lbs.)

EXHAUST MANIFOLD





a) Install a new gasket and the exhaust manifold converter with the 5 nuts. Uniformly tighten the 5 nuts in the sequence shown in the illustration.
Torque: 37 Nm (378 kgf-cm, 27 ft. lbs.)





Install the No.1 and No.2 exhaust manifold stays with the 3 bolts and 2 nuts.
Torque 44 Nm (449 kgf-cm, 32 ft. lbs.)
