Canada - Engine - Updated Short Block Part Number

Bulletin
T-TCI-3691

Issue Date
January 11, 2012

Market
Canada

Title
2AZ-FE ENGINE BLOCK

Service Category
Engine/Hybrid System

Section
Engine Mechanical

Market
Canada

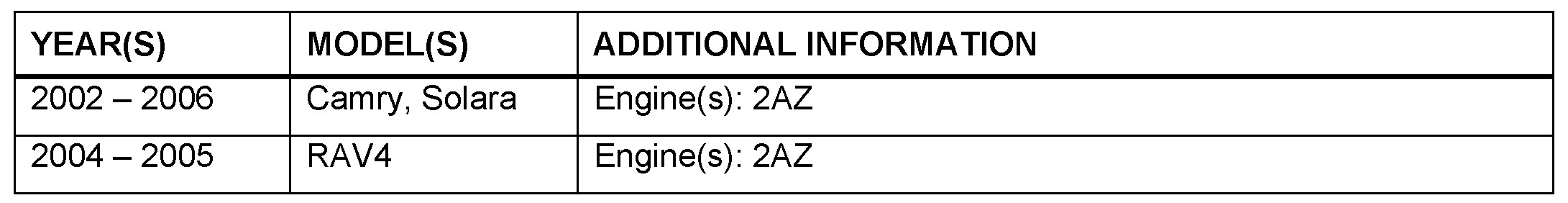

APPLICABILITY:

TSB SUPERSESSION NOTICE

The information contained in this TSB supersedes TSB2740.
- Applicability has been updated - this TSB no longer applies to 2006 - 2007 model year RAV4 or 2007 model year Camry and Solara vehicles.
- Parts Information has been updated.

TSB2740 is Obsolete and any printed versions should be discarded. Be sure to review the entire content of this service bulletin before proceeding.

INTRODUCTION:

The purpose of this TSB is to provide updated short block part number information for certain vehicles equipped with the 2AZ-FE engine. Please use the information below when replacing the engine short block assembly.

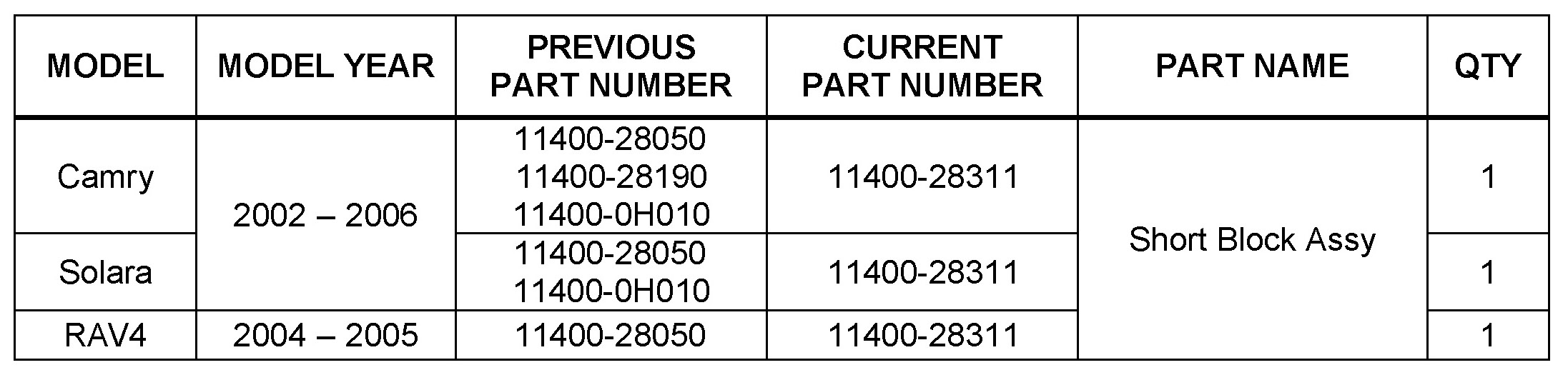

PARTS INFORMATION:

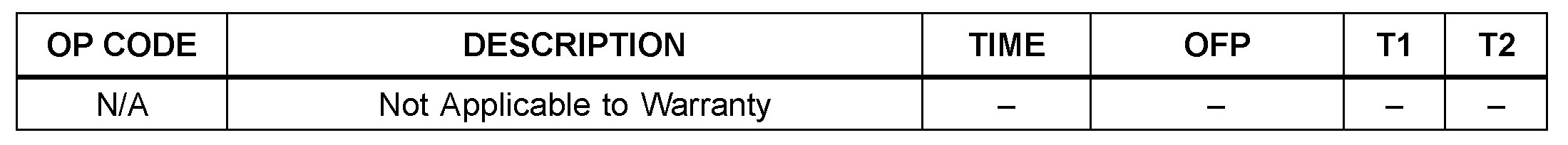

WARRANTY INFORMATION:

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
