Engine - Drive Belt Squeal/Tensioner Rattle
ENGINEEG040-04
Title:
ACCESSORY DRIVE BELT SQUEAL/
BELT TENSIONER RATTLE
Models:
'01 - '04 Camry, Highlander, Solara & '04 RAV4
September 8, 2004
Introduction
Some 2001 - 2004 model year Camry, Highlander, Solara and 2004 model year RAV4 vehicles with the 2AZ-FE engine may exhibit squealing and/or rattling noises coming from the engine compartment during vehicle operation especially after a cold soak. The belt tensioner assembly has been improved to correct this condition.
Applicable Vehicles
^ 2001 - 2004 model year Camry, Highlander and Solara vehicles equipped with 2AZ-FE engines produced BEFORE the Production Change Effective VINs shown below.
^ 2004 model year RAV4 vehicles produced BEFORE the Production Change Effective VINs shown below.

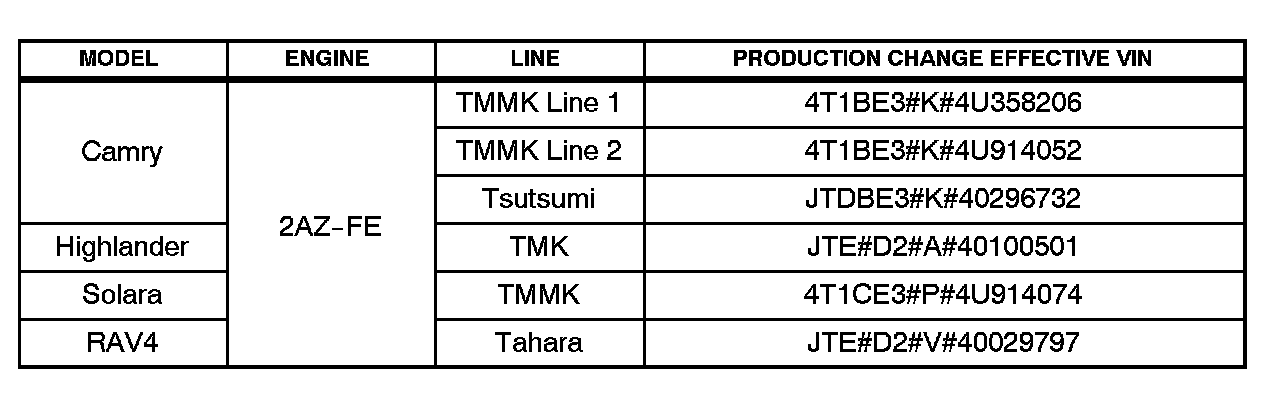

Production Change Information
Parts Information

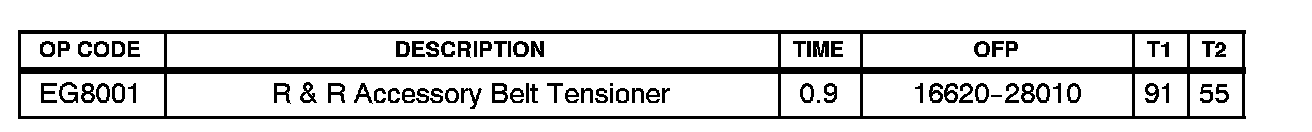

Warranty Information
Applicable Warranty*:
This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.
* Warranty application is limited to correction of a problem based upon a customer's specific complaint.

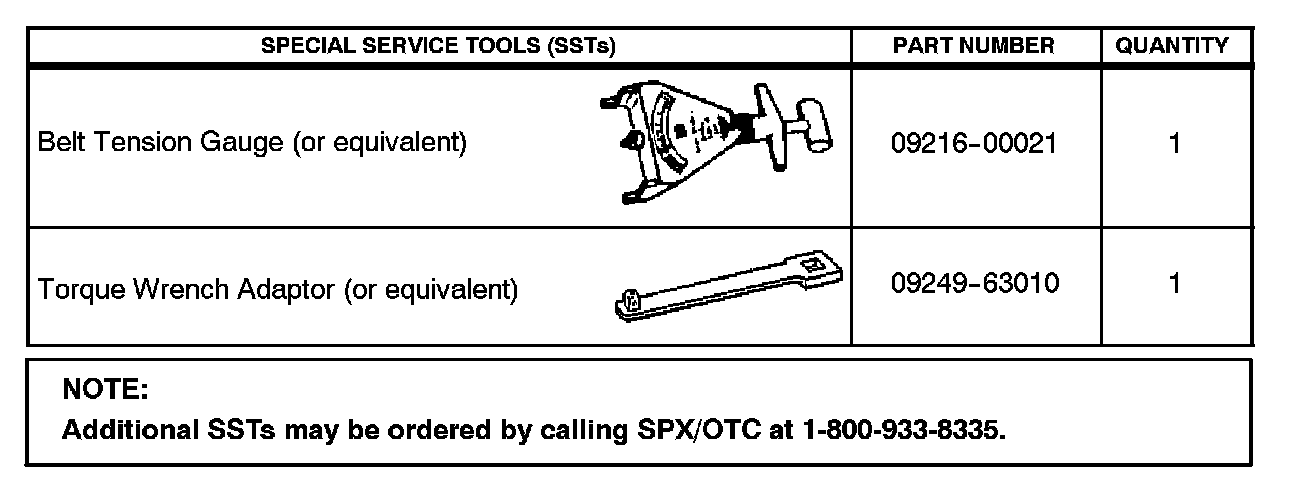

Required SSTs
Repair Procedure
1. Remove the accessory drive belt per the instructions contained in the Technical Information System (TIS), applicable model year, applicable model Repair Manual:
Engine Mechanical: Drive Belt (2AZ-FE).
2. Remove and replace the Accessory Belt Tensioner per the instructions contained in TIS, applicable model year, applicable model Repair Manual: Engine Mechanical:
Partial Engine Assembly (2AZ-FE).
3. Replace the accessory drive belt per the instructions contained in TIS, applicable model year, applicable model Repair Manual: Engine Mechanical:
Drive Belt (2AZ-FE).
