Air Conditioning Panel Sub-Assy

Air Conditioning Panel Sub-Assy:

AIR CONDITIONING PANEL SUB-ASSEMBLY

OVERHAUL

1. REMOVE AIR CONDITIONING PANEL SUB-ASSEMBLY




2. REMOVE HEATER CONTROL HOUSING

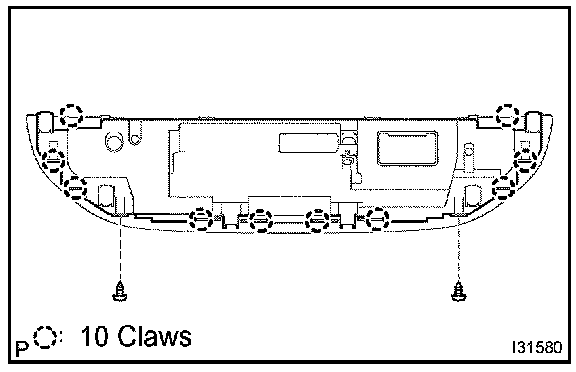

a. Remove the 2 screws.
b. Release the 10 fitting claws, remove the heater control housing.
