Pinout Values and Diagnostic Parameters

Terminals Of ECU/Pinouts - Heater Control Housing Sub-Assy (A/C Amplifier) Part 1:



Terminals Of ECU/Pinouts - Heater Control Housing Sub-Assy (A/C Amplifier) Part 2:

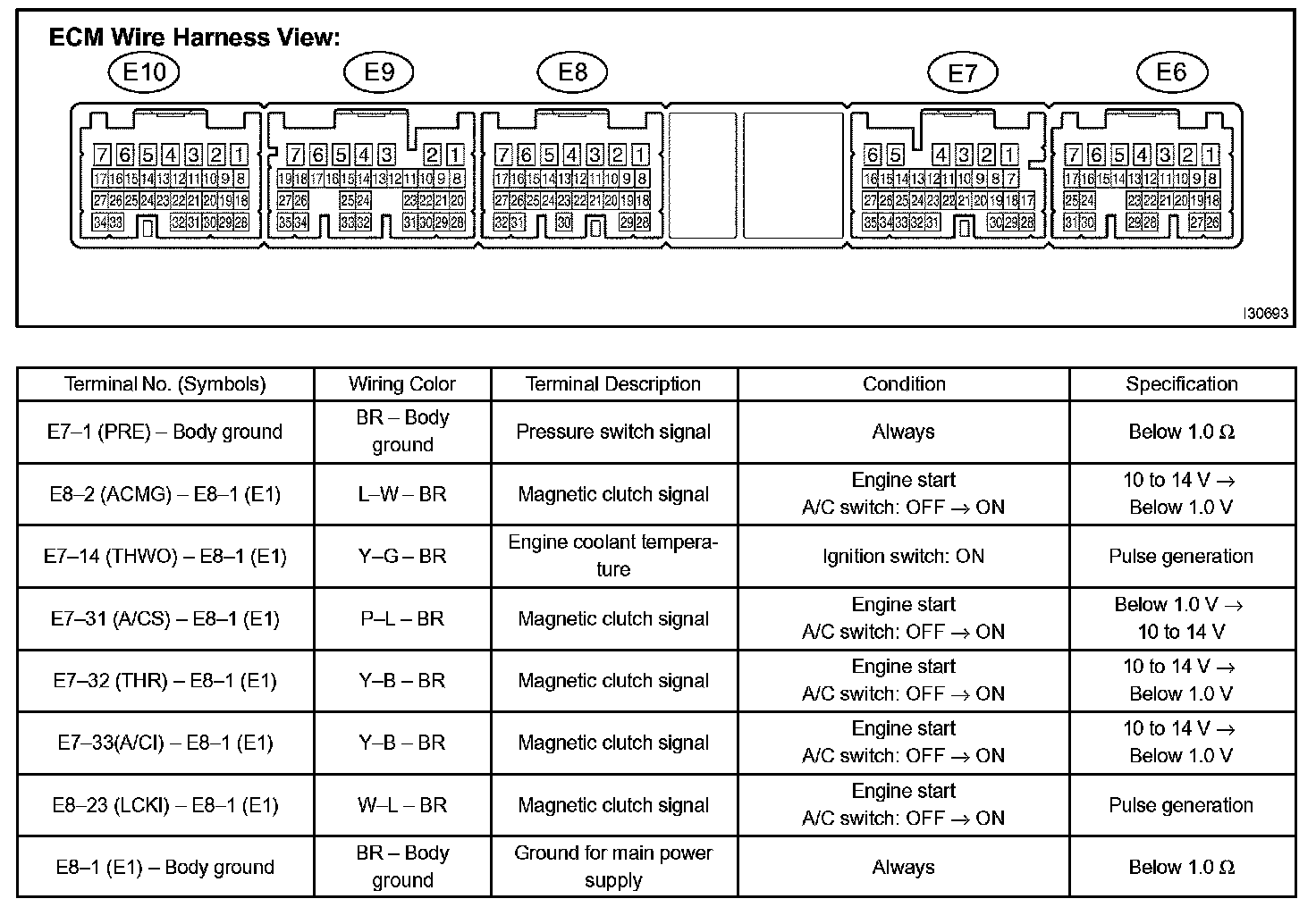

Terminals Of ECM/Pinouts (Except PZEV) Part 1:

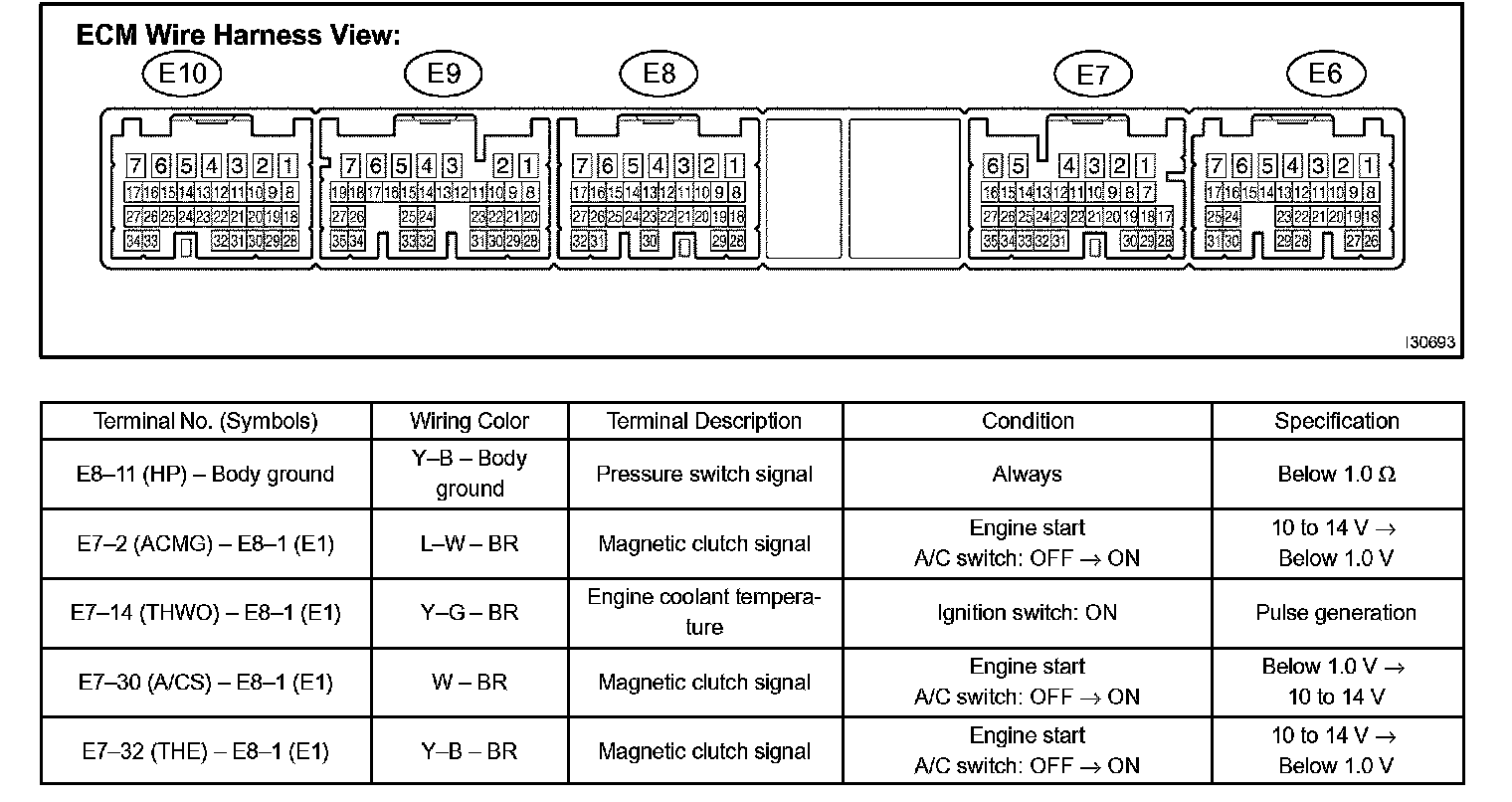

Terminals Of ECM/Pinouts (Except PZEV) Part 2:

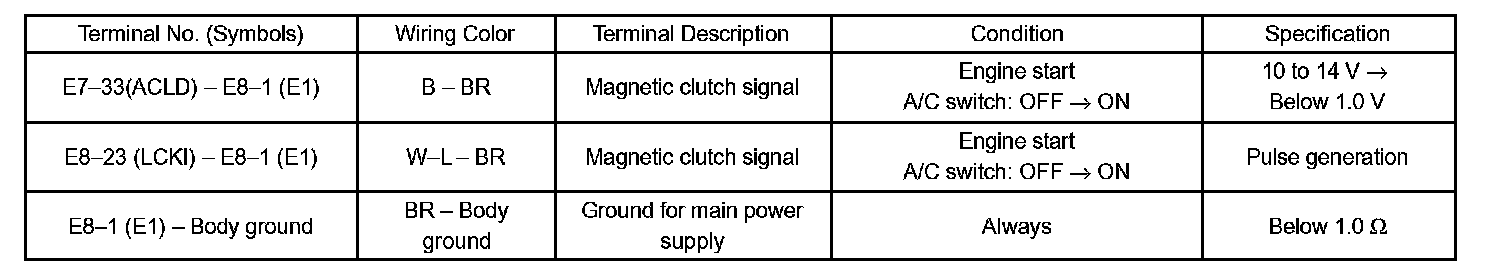

Terminals Of ECM/Pinouts (PZEV):
