Malfunction In Average/Instantaneous Fuel Consumption Display

MALFUNCTION IN AVERAGE FUEL CONSUMPTION/INSTANTANEOUS FUEL CONSUMPTION DISPLAY

CIRCUIT DESCRIPTION
This circuit is used only in the vehicle equipped with the automatic A/C.

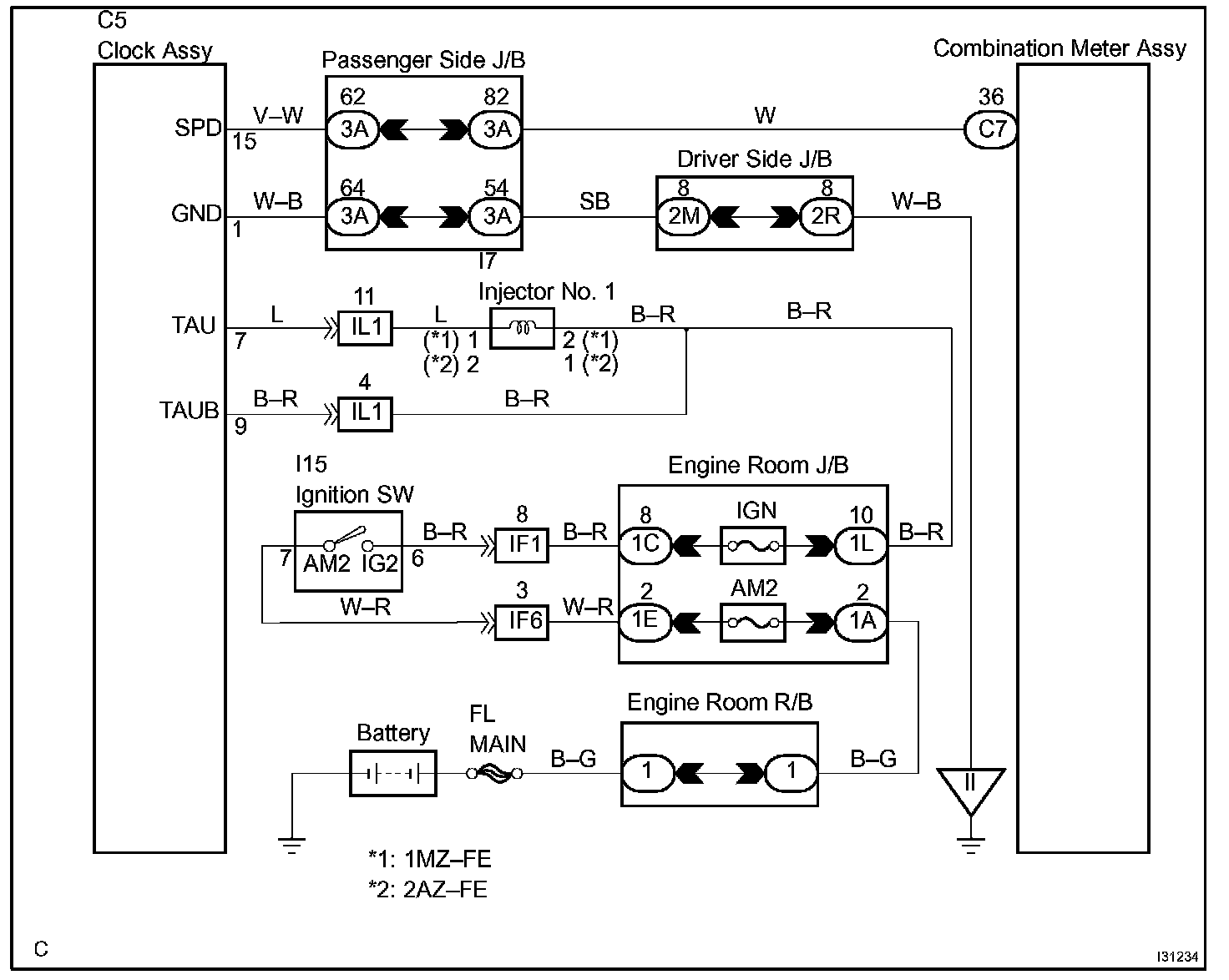

Wiring Diagram:

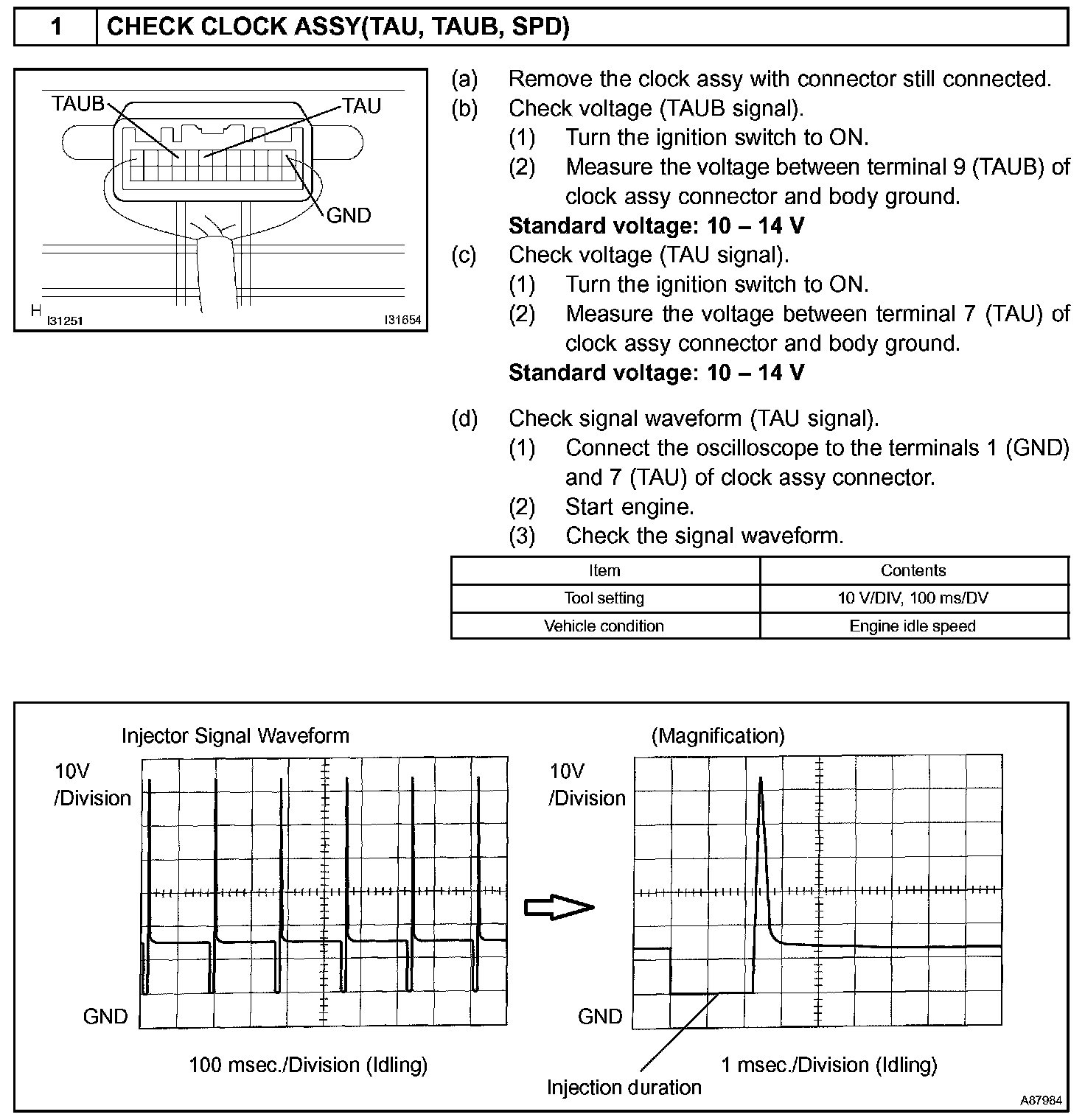

Step 1:

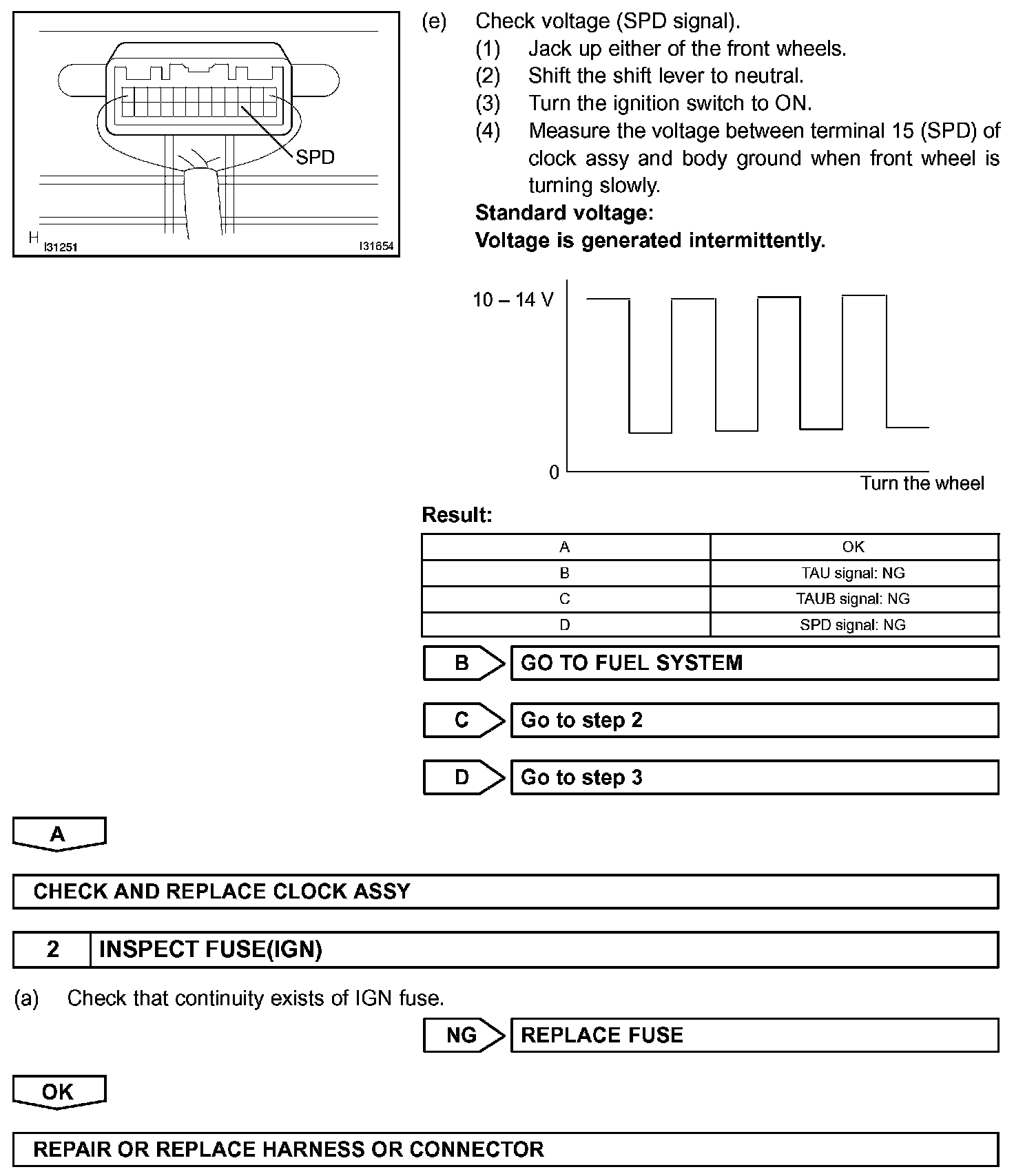

Step 1 (Continued) - 2:

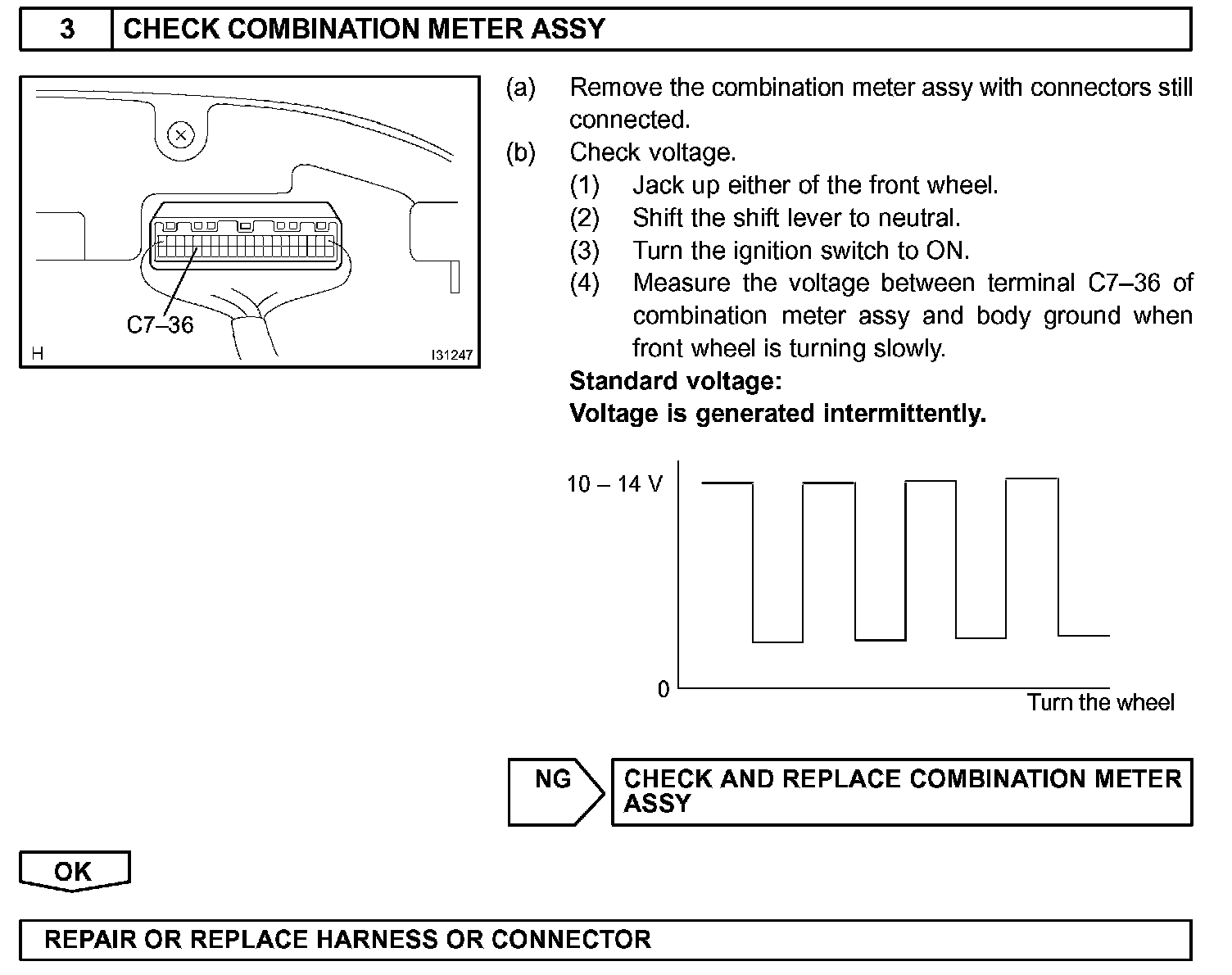

Step 3:

INSPECTION PROCEDURE
