Malfunction In Outside Temperature Display
Malfunction In Outside Temperature Display
MALFUNCTION IN OUTSIDE TEMPERATURE DISPLAY

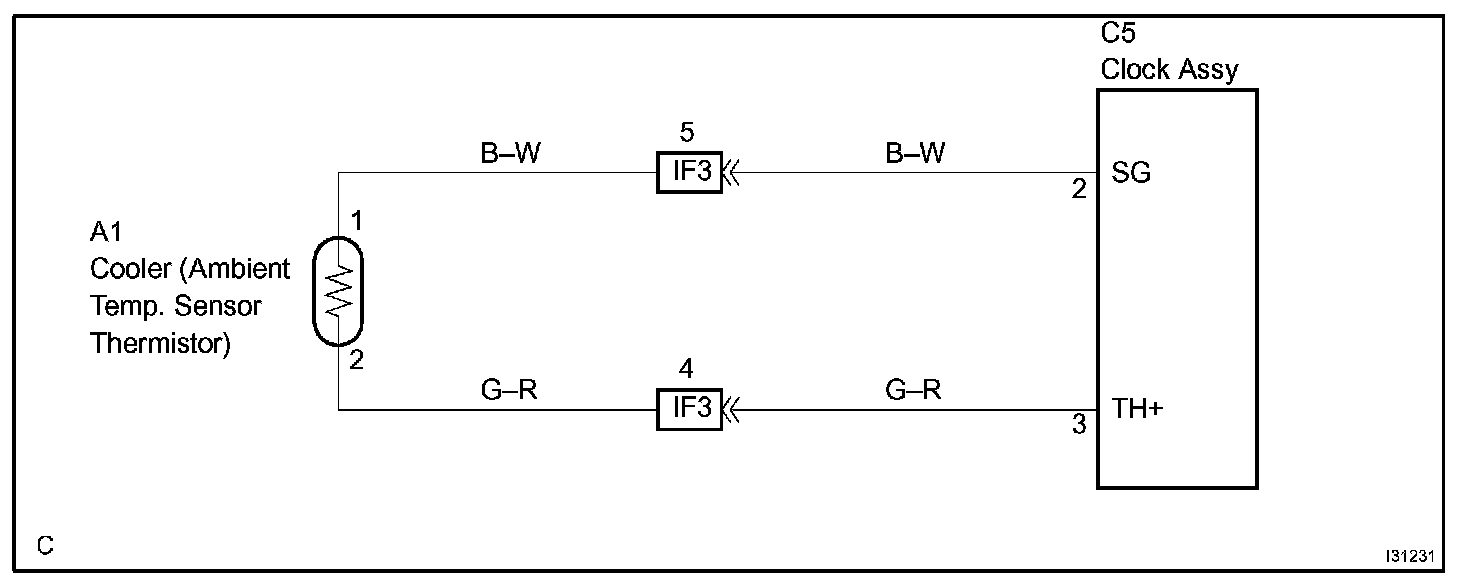

Wiring Diagram:

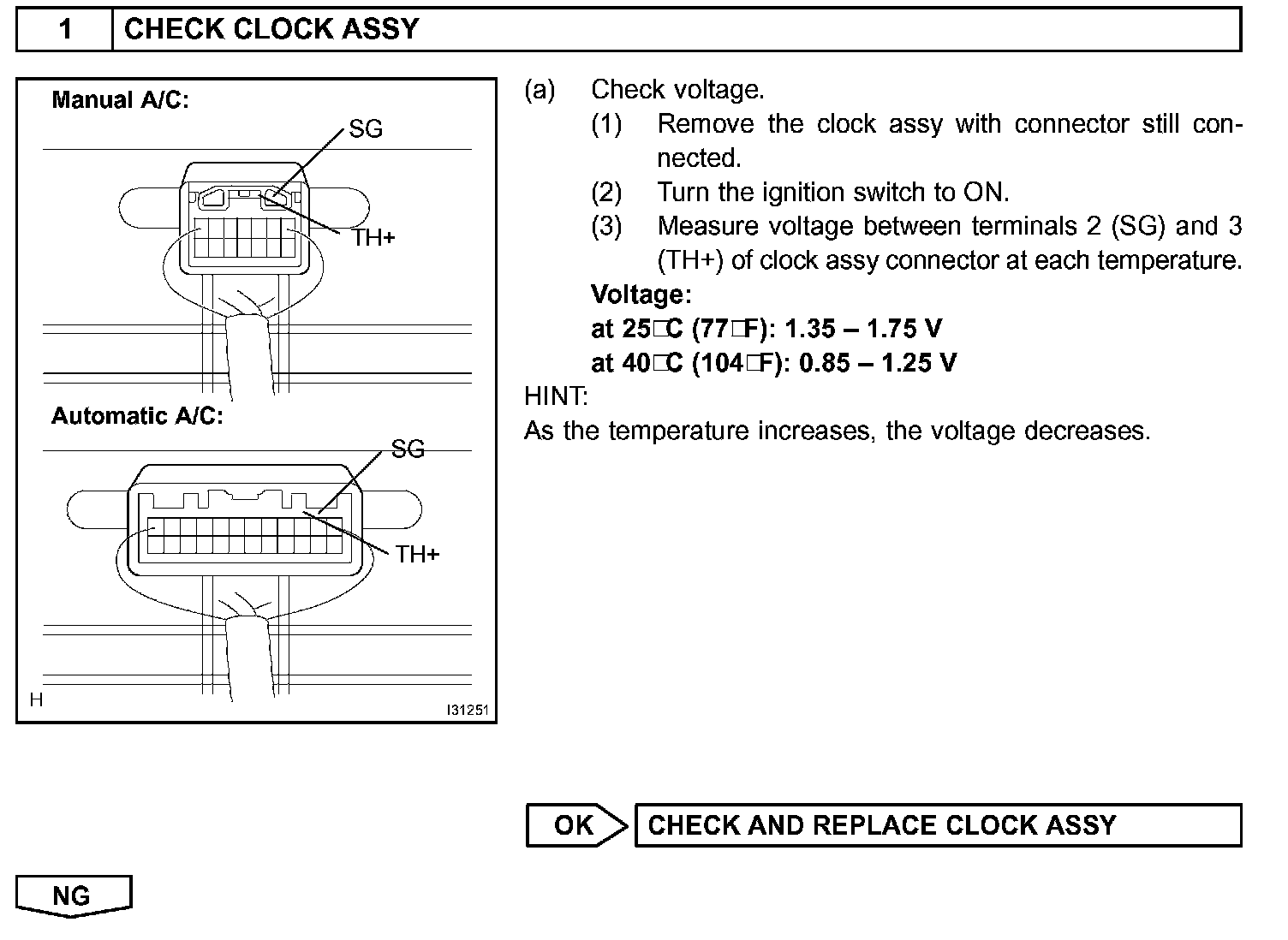

Step 1:

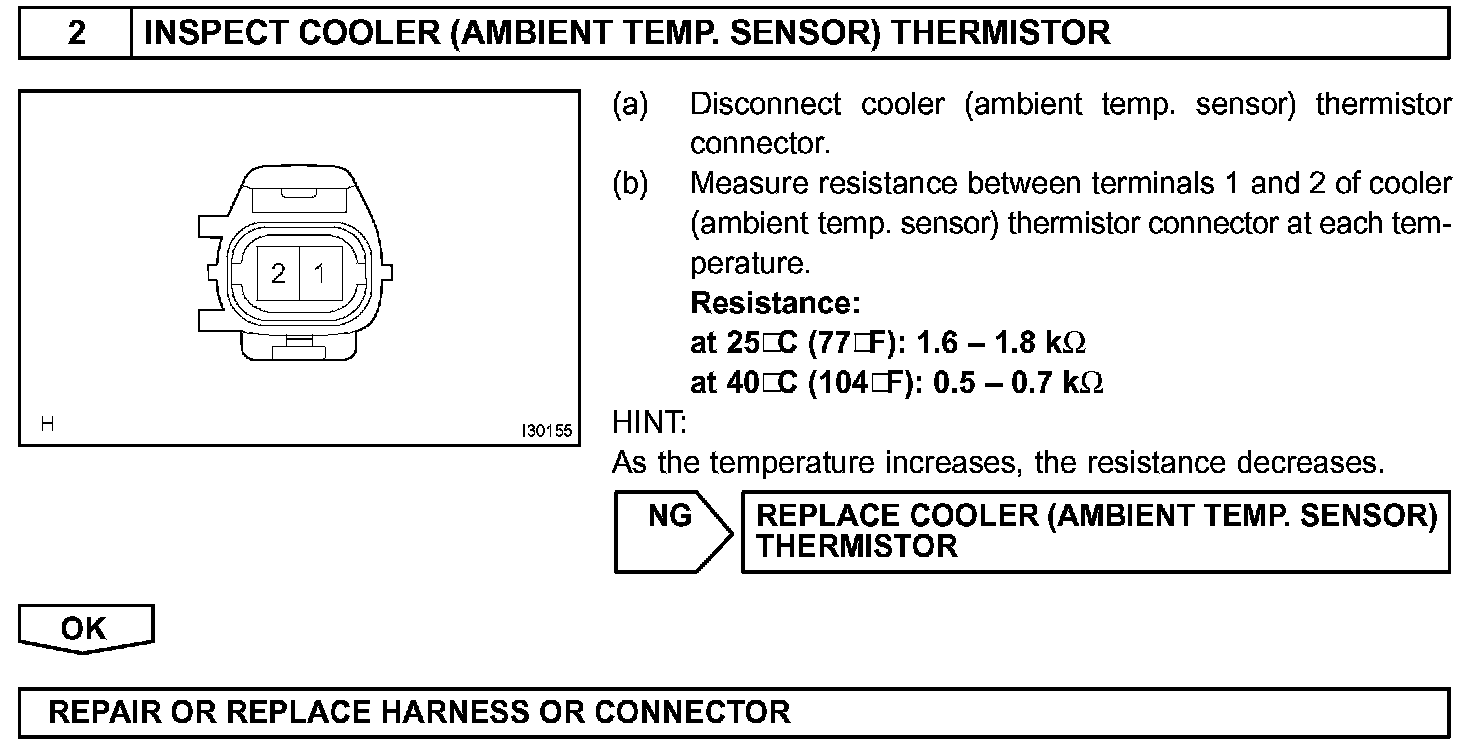

Step 2:
INSPECTION PROCEDURE
