OPERATING LIGHT CONTROL RHEOSTAT DOES NOT CHANGE LIGHT BRIGHTNESS
Wiring Diagram:

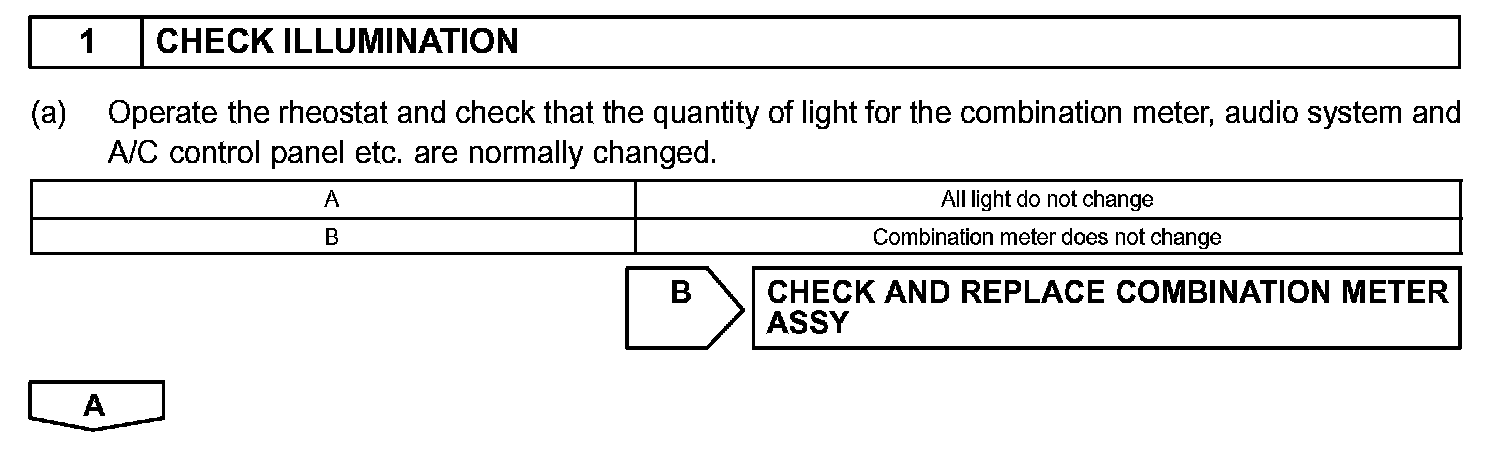

Step 1:

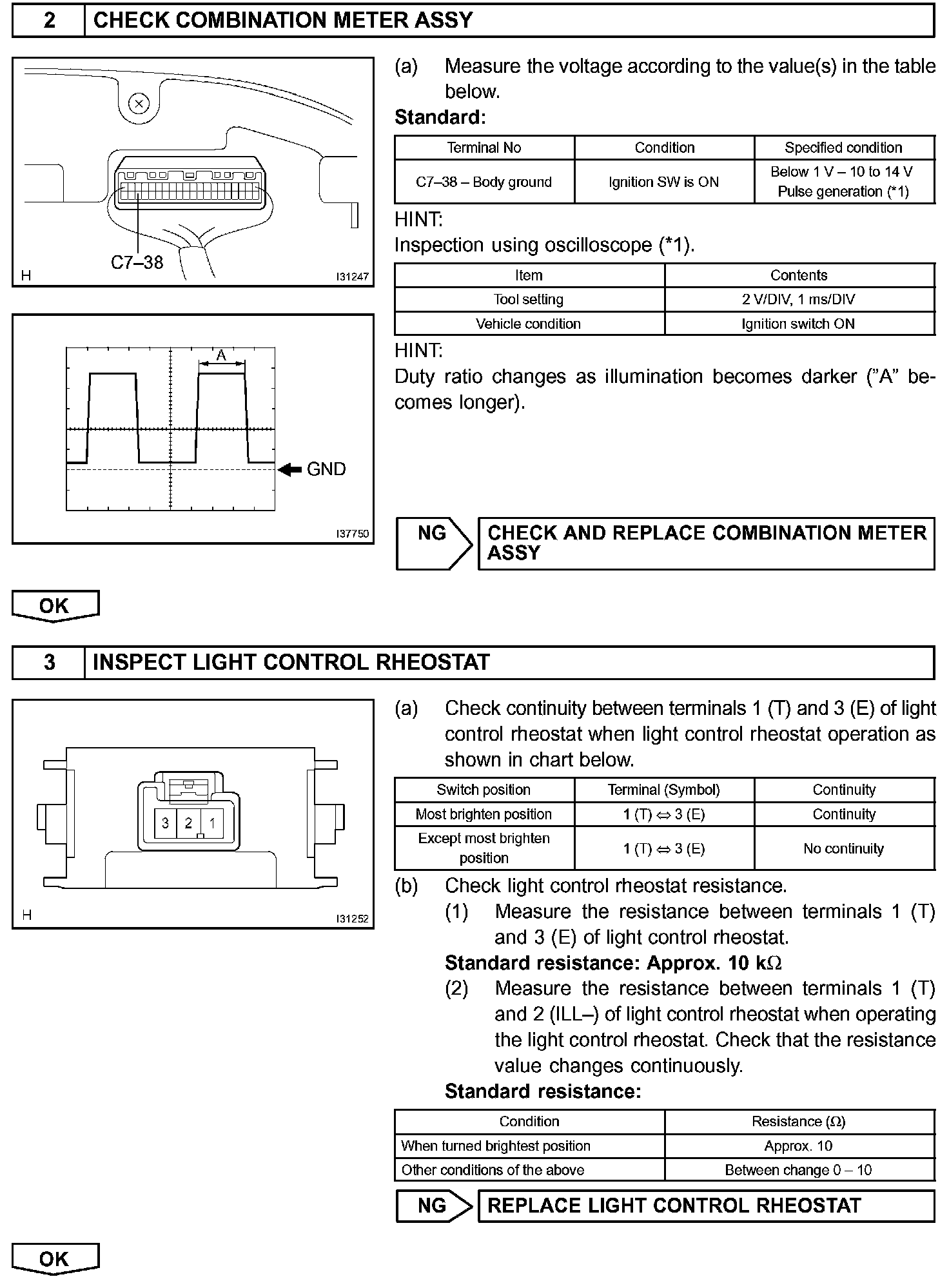

Step 2 - 3:

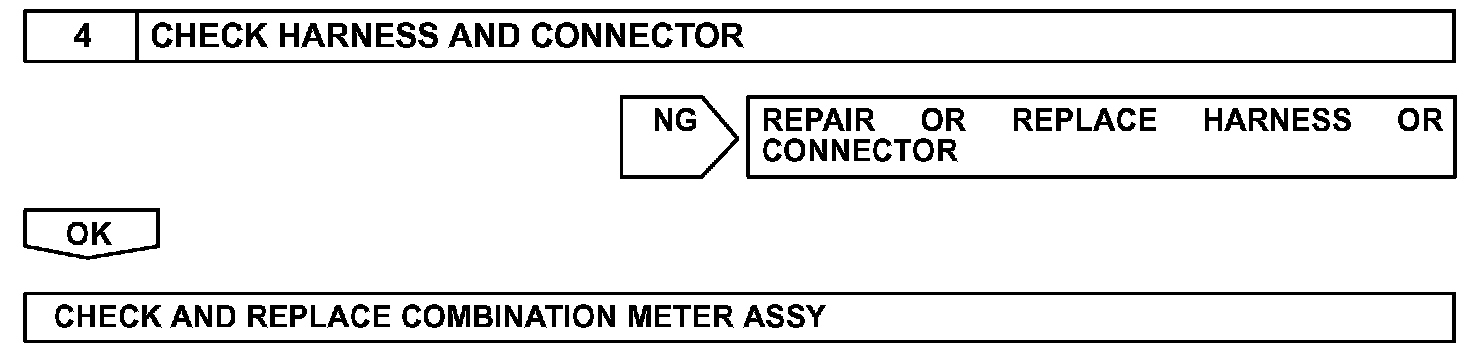

Step 4:
INSPECTION PROCEDURE
