Horn Relay: Locations

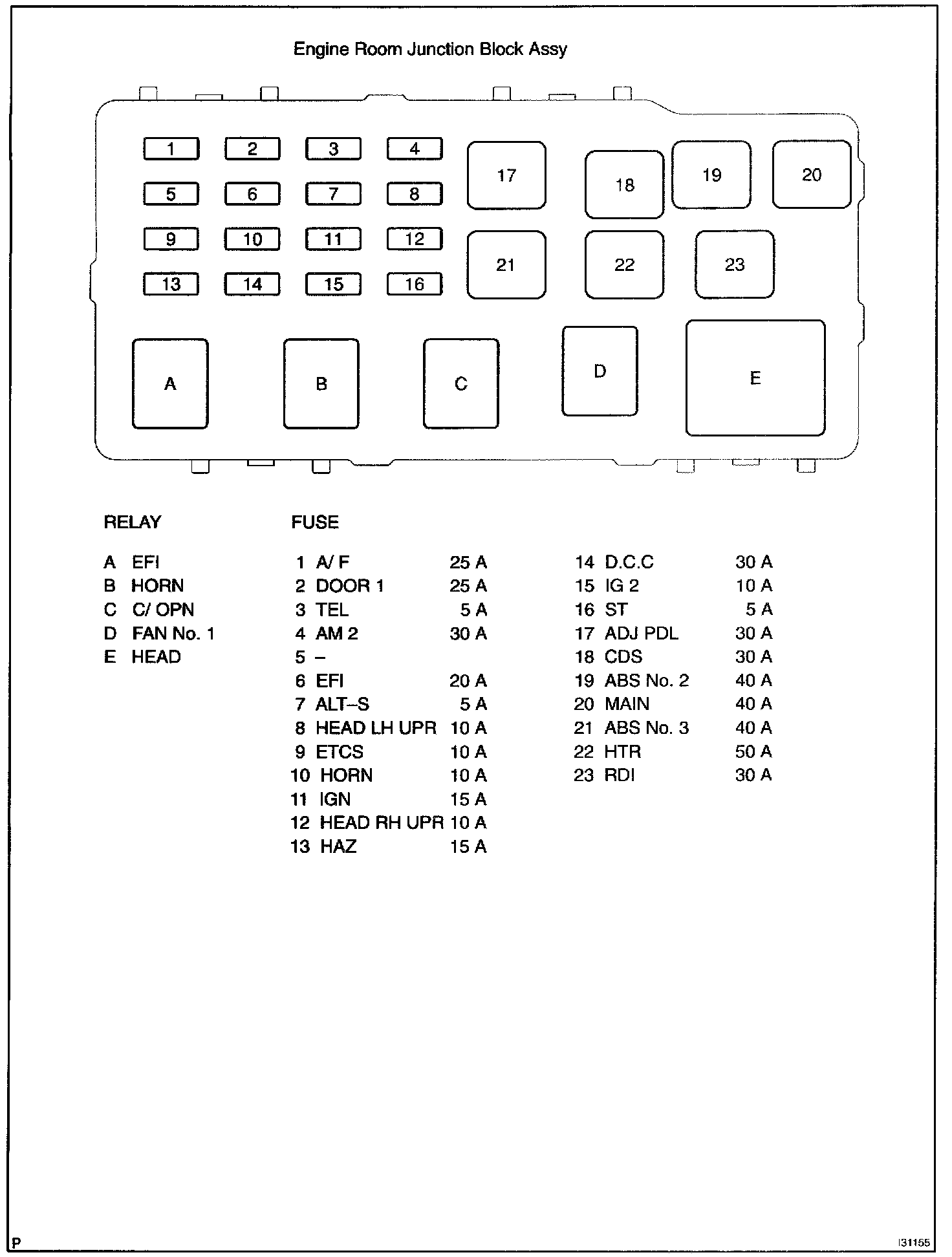

Engine Room Junction Block Assy:

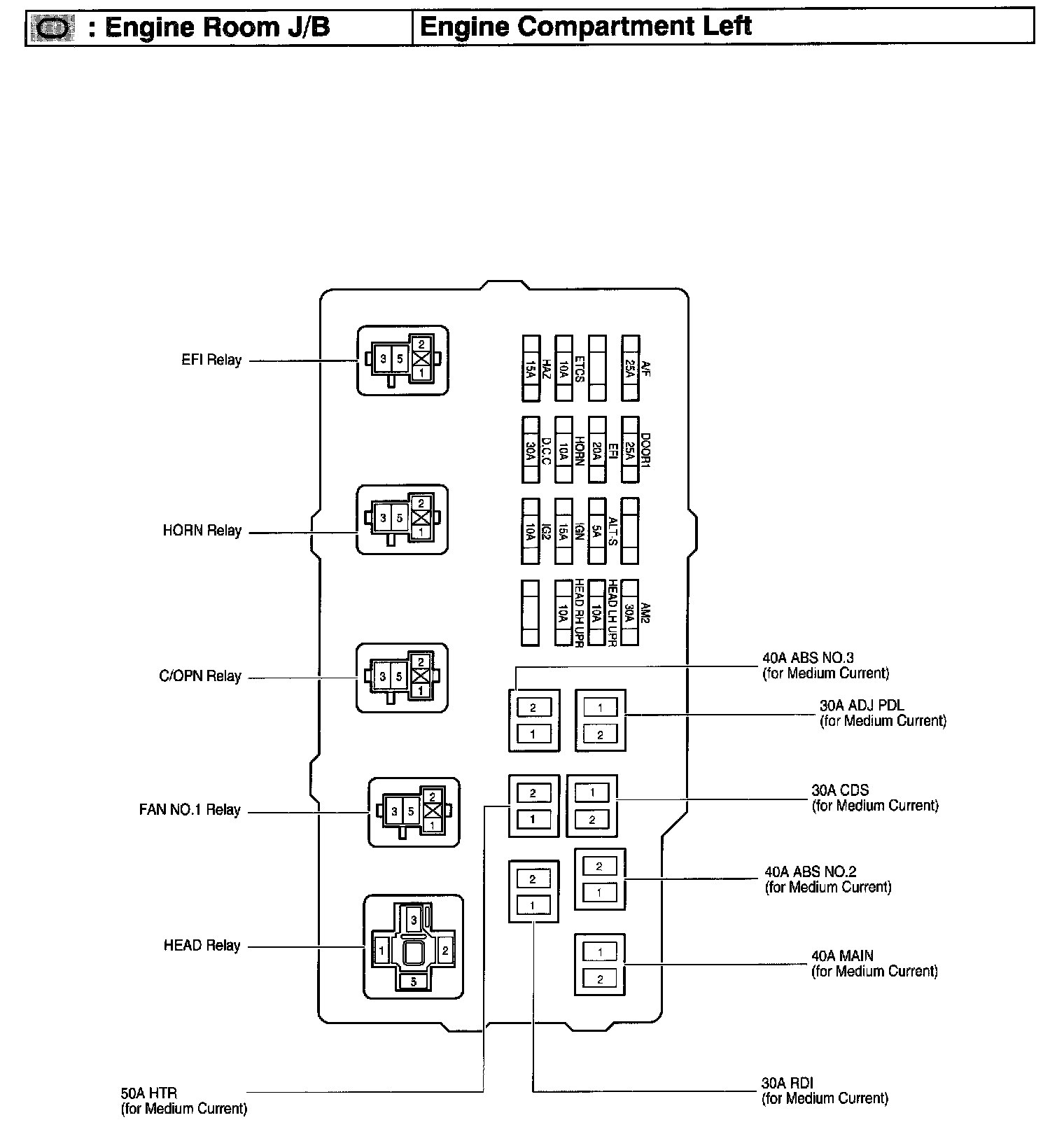

Engine Room J/B - Engine Compartment Left:



Engine Room J/B - Engine Compartment Left:



Horn System:
