Fail-Safe Chart
Fail-Safe Chart
FAIL-SAFE CHART

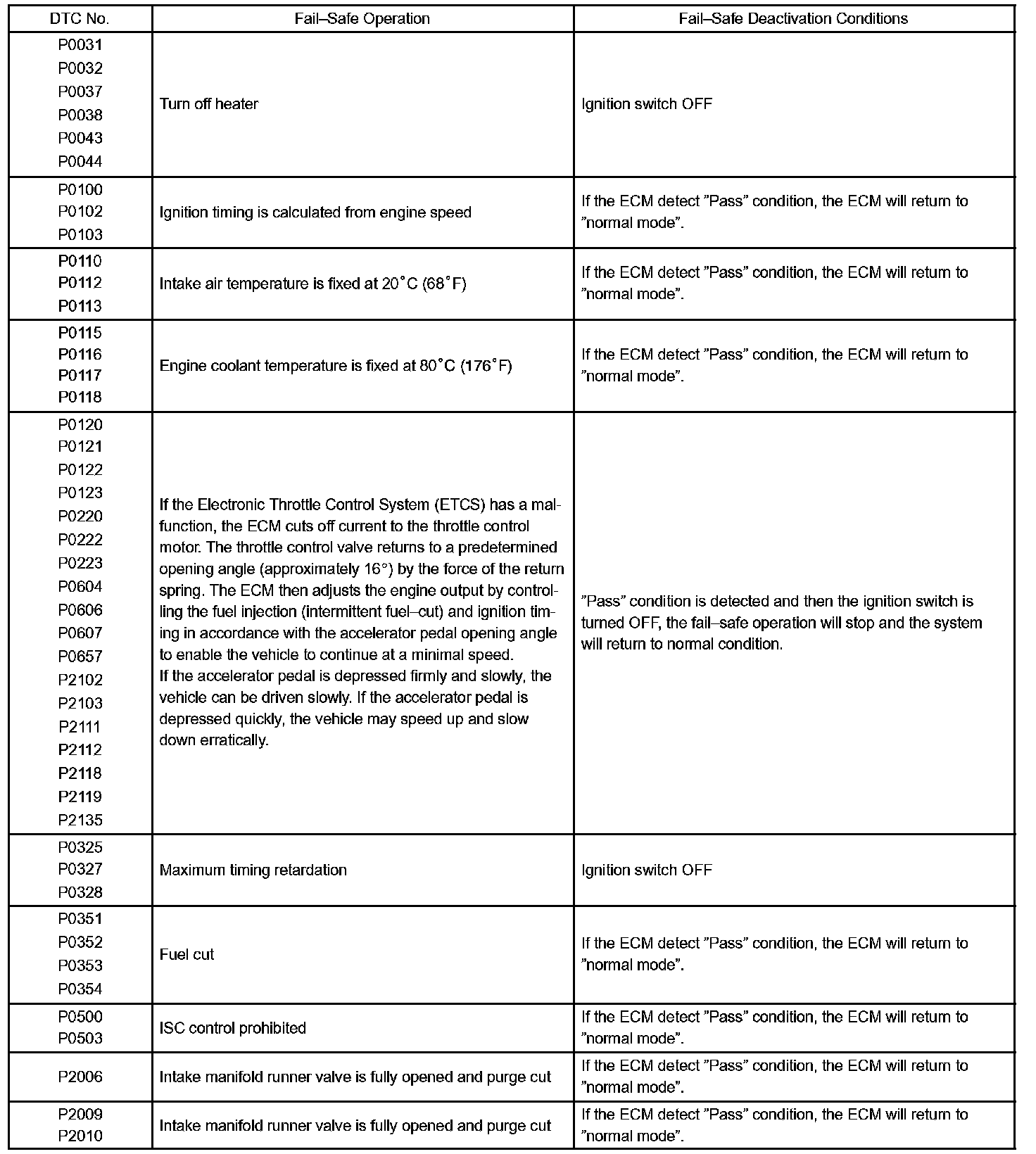

Fail-Safe Chart Part 1:

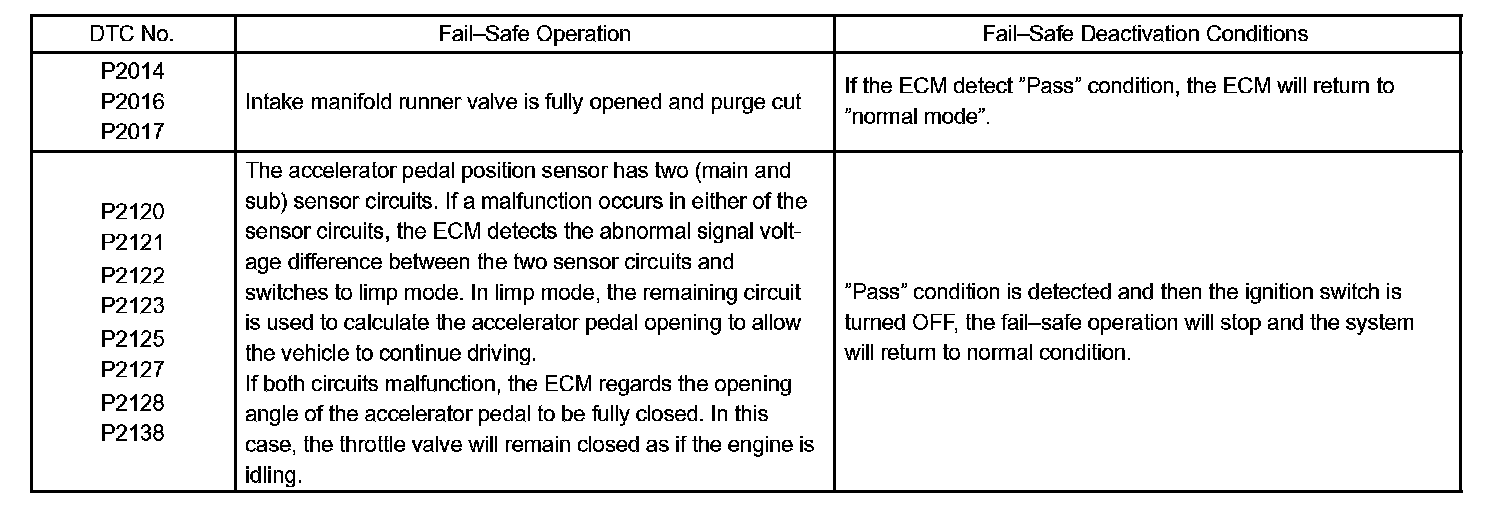

Fail-Safe Chart Part 2:
If any of the codes are recorded, the ECM enters fail-safe mode.
