Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
Camry L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Except PZEV Engine
Except PZEV Engine

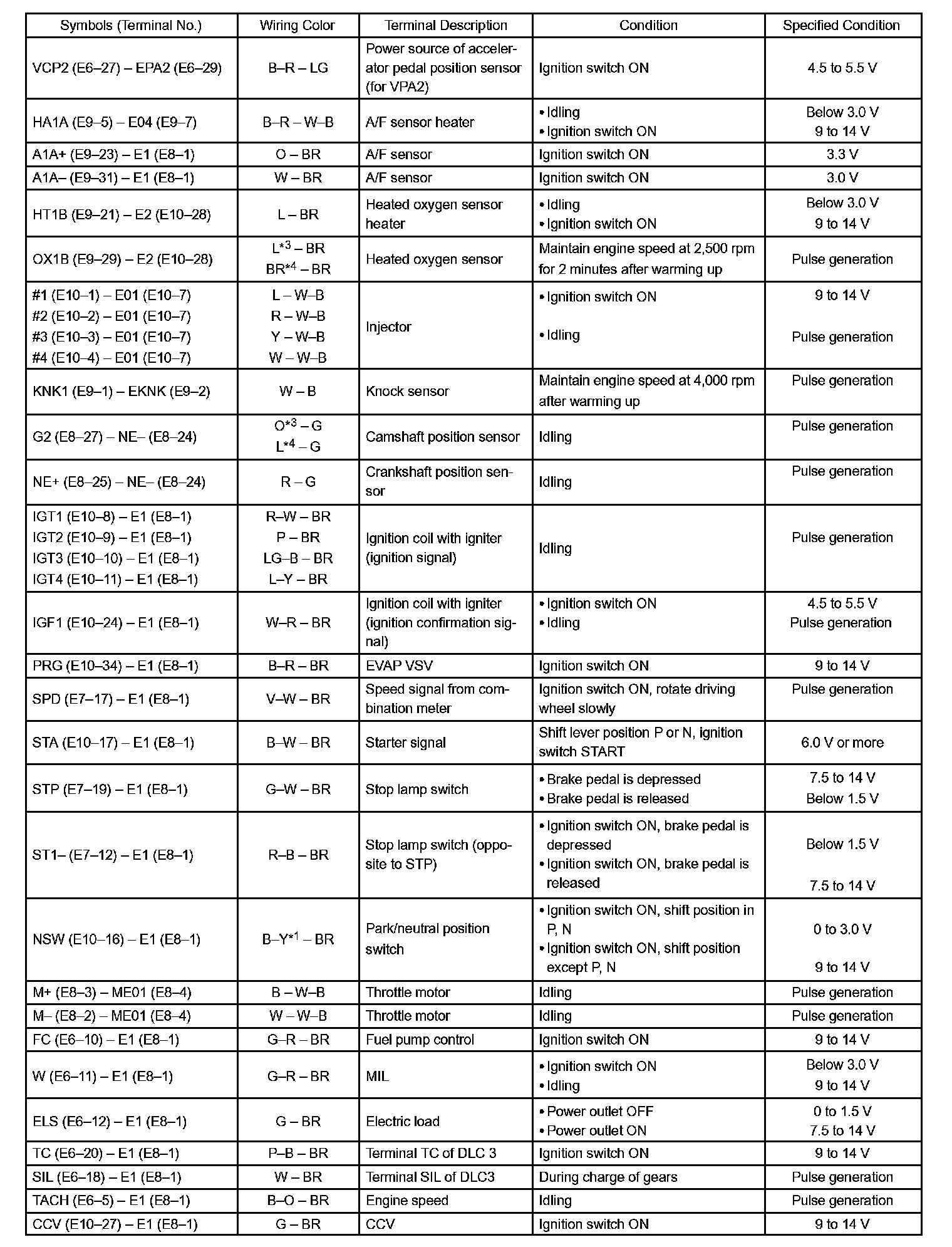

Terminals Of ECM/Pinouts Part 1:
Terminals Of ECM/Pinouts Part 2:

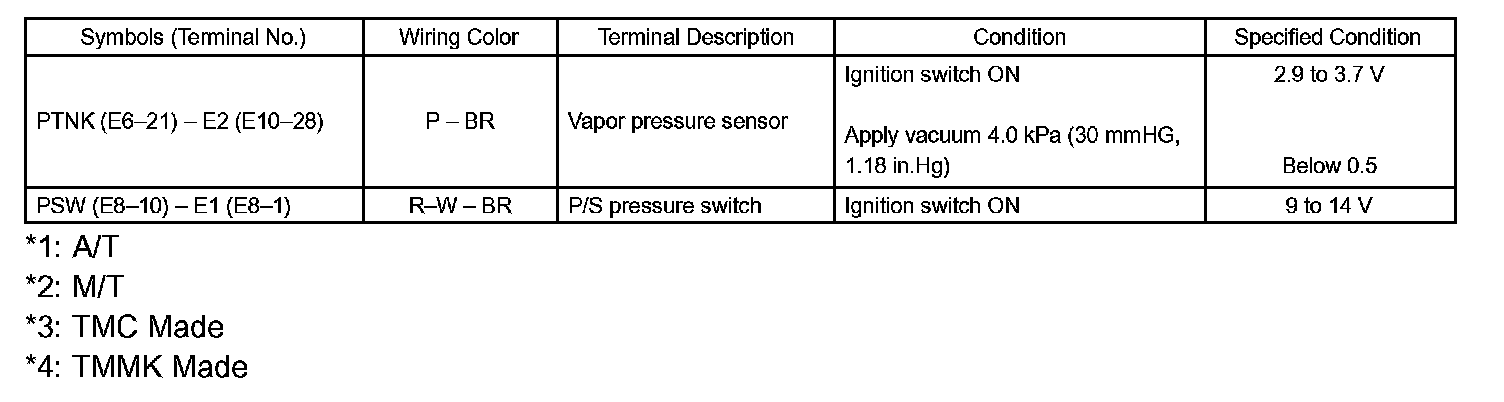

Terminals Of ECM/Pinouts Part 3:
