Positive Crankcase Ventilation Valve: Service and Repair

REPLACEMENT (From July 2003)

1. REMOVE VENTILATION VALVE SUB-ASSY
a. Disconnect the PCV hose from the PCV valve.
b. Remove the PCV valve.

2. INSTALL VENTILATION VALVE SUB-ASSY




a. Reinstall the PCV valve.

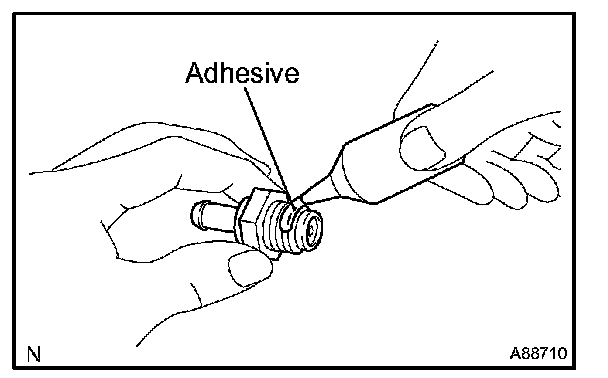

1. Apply adhesive to 2 or 3 threads.

Adhesive: Part No. 08833-00070, THREE BOND 1324 or equivalent

2. Reinstall the PCV valve.

Torque: 19 N.m (193 kgf.cm, 14 ft.lbf)

b. Connect the PCV hose to the PCV valve.
