Component Inspection

INSPECTION (From July 2003)

1. FUEL INJECTOR ASSY

a. Check the injector resistance.
1. Measure the resistance between the terminals.

Standard: 11.6 to 12.4 Ohms at 20 °C (68 °F)

If the result is not as specified, replace the injector.

b. Check the injector injection.

CAUTION:
- This test involves high pressure fuel and electricity.
- Take every precaution regarding safe handling of both the fuel and the electricity.
- Perform this test in a safe area, and avoid any sparks or flame.
- Do not smoke.

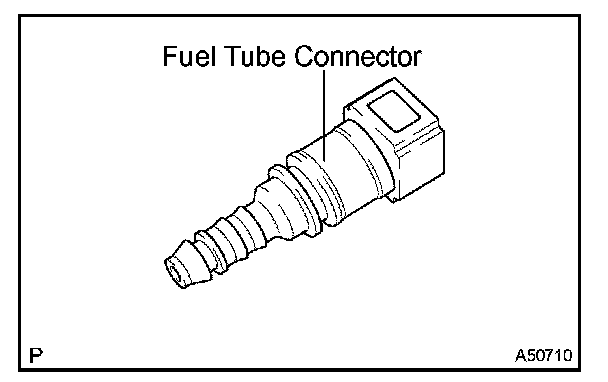

1. Purchase a new fuel tube and take out the fuel tube connector from its pipe.

Part No. 23801-20190

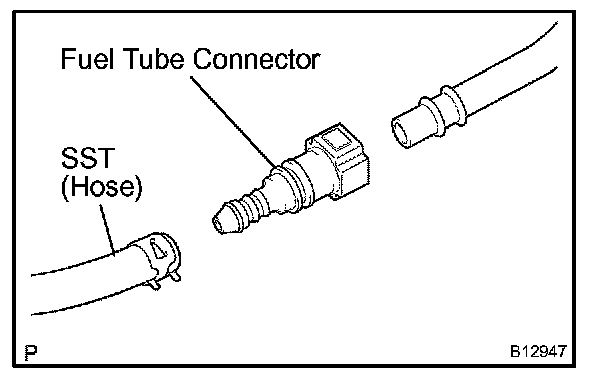

2. Connect SST and fuel tube connector to the fuel pipe.

SST 09268-41047

CAUTION: Always read the precautions before connecting the fuel tube connector (quick type).




3. Install the O-ring to the injector.

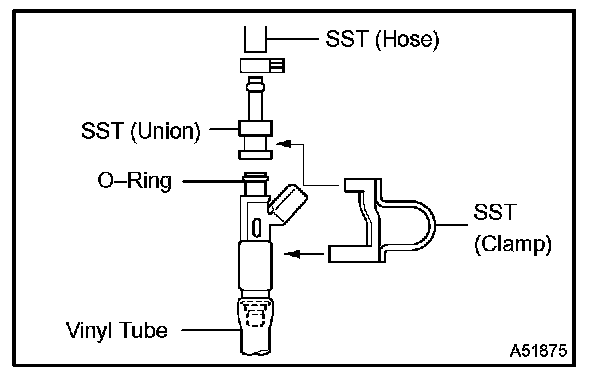

4. Connect SST (union and hose) to the injector, and hold the injector and union with SST (clamp).

SST 09268-41047 (09268-41110, 09268-41300)

5. Put the injector into a graduated cylinder.

HINT: Install a suitable vinyl tube onto the injector to contain the gasoline spray.

6. Operate the fuel pump.

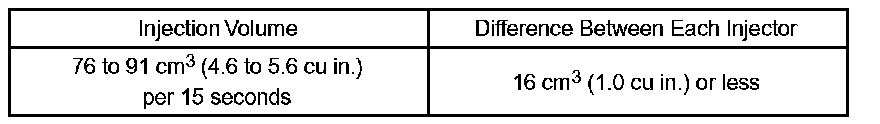

Standard:

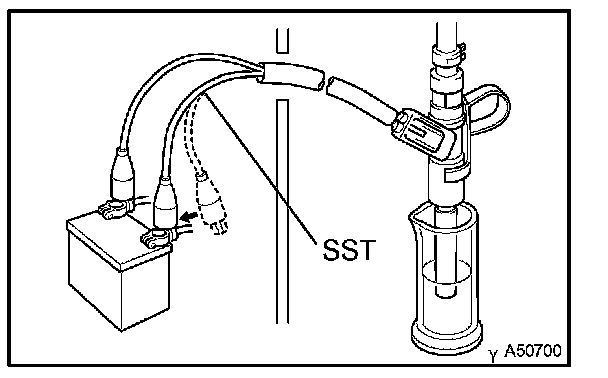

7. Connect SST (wire) to the injector and the battery for 15 seconds, and measure the injection volume with a graduated cylinder. Test each injector 2 or 3 times.

SST 09842-30080

NOTE: Always turn on and off the voltage on the battery side, not the fuel pump side. If the injection volume is not as specified, replace the injector.




c. Check fuel leakage.

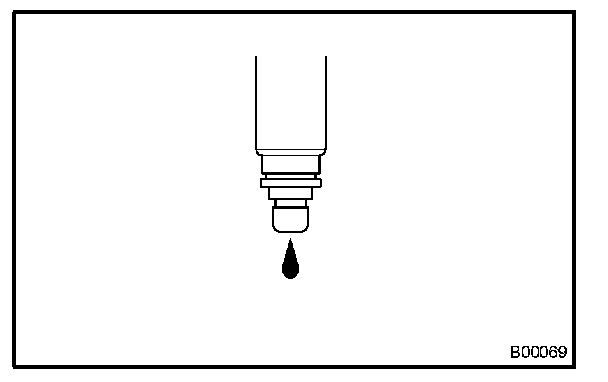

1. In the condition above, disconnect the test probes of SST (wire) from the battery and check the fuel leakage from the injector.

Fuel drop: 1 drop or less per 12 minutes




2. FUEL PUMP

a. Check fuel pump resistance.

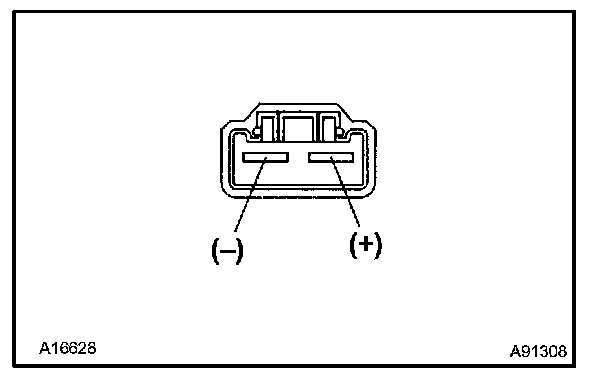

1. Measure the resistance between the terminals.

Resistance: 0.2 to 3.0 Ohms at 20 °C (68 °F)

b. Check fuel pump operation.
1. Apply battery voltage to both terminals. Check that the pump operates.

NOTE:
- These tests must be done within 10 seconds to prevent the coil from burning out.
- Keep fuel pump as far away from the battery as possible.
- Always turn on and off the voltage on the battery side, not the fuel pump side.
