Home >> Toyota >> 2004 >> Camry L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Variable Induction System >> Variable Induction Control Valve >> Locations

Variable Induction Control Valve: Locations

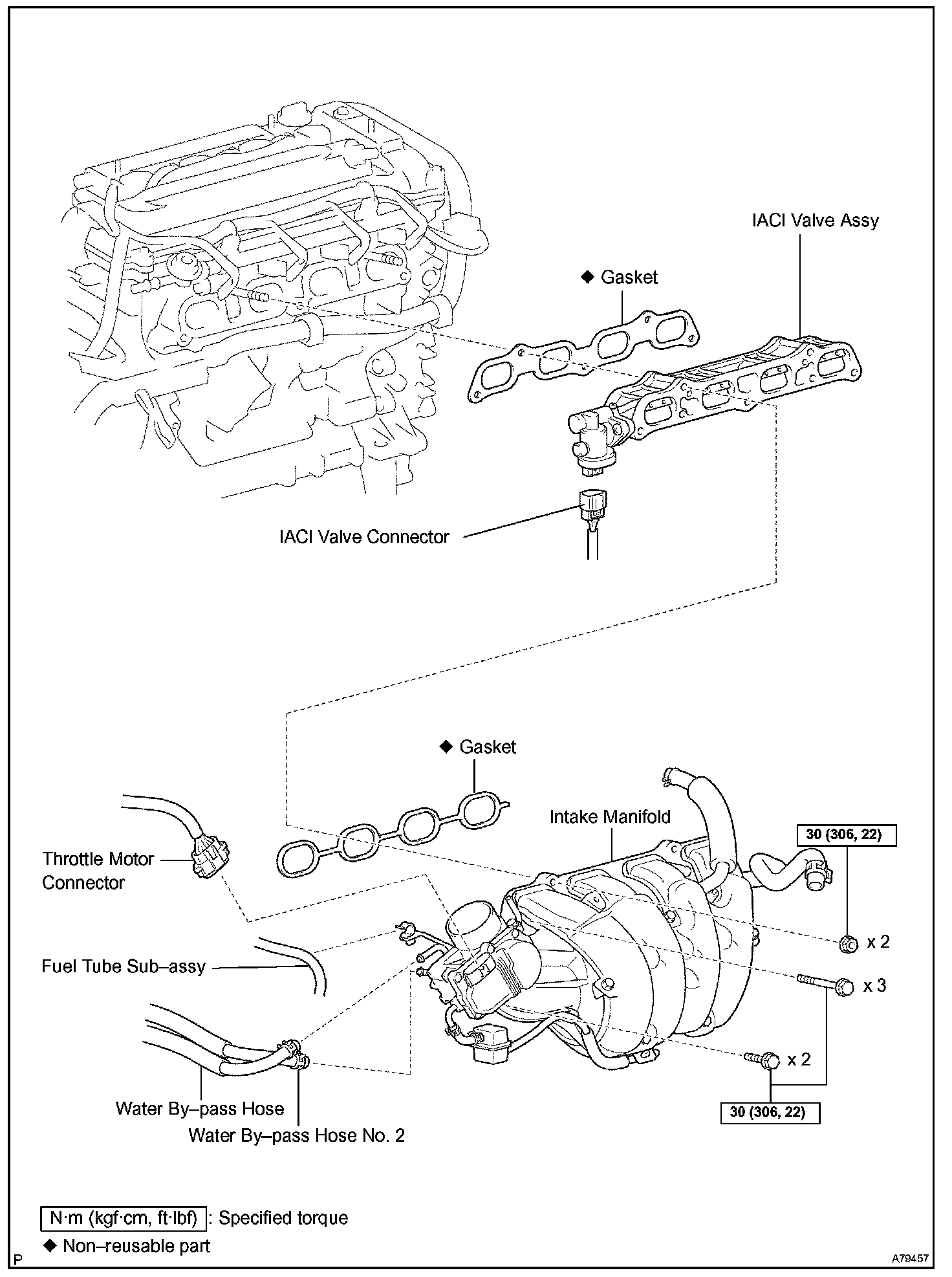

Intake Manifold Runner Valve Assy (PZEV):
