Balance Shaft

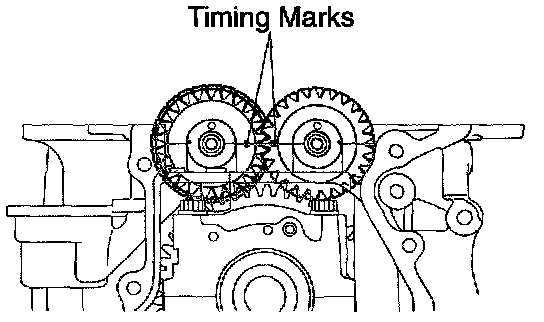

Timing Marks





Housing Bolt Torque
Torque 22 Nm (16 ft lbs)

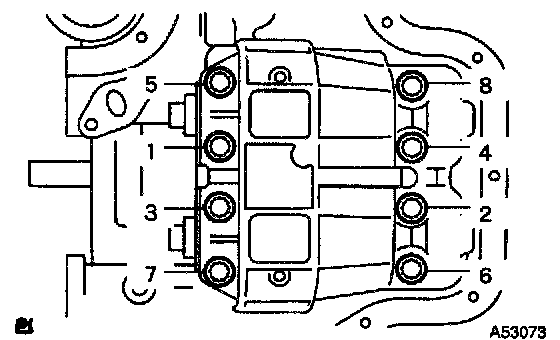

Torque Sequence





NOTE: Temporarily tighten 8 bolts in several passes as the sequence shows, then fully tighten with specified torque.
