Mechanical Specifications
>>

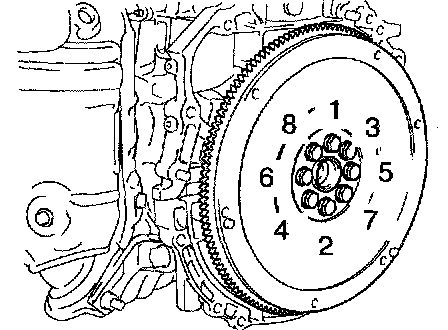

Flywheel
Flywheel
Flywheel
sub-assy
130 Nm (1,330 kgf-cm, 96 ft. lbs.)
Clutch cover assy x
Flywheel
19.1 Nm (195 kgf-cm, 14 ft. lbs.)
Flywheel
runout (Maximum)
0.1 mm (0.004 inch)
