Multiple Junction Connector: Application and ID

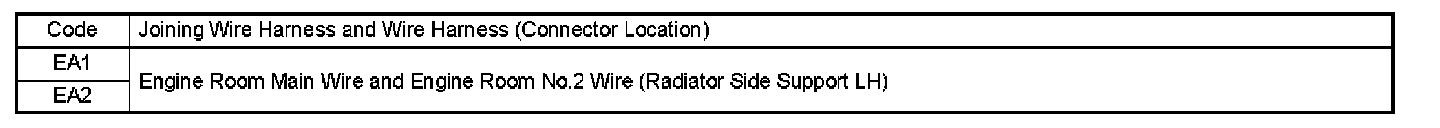

EA1 - EA2:

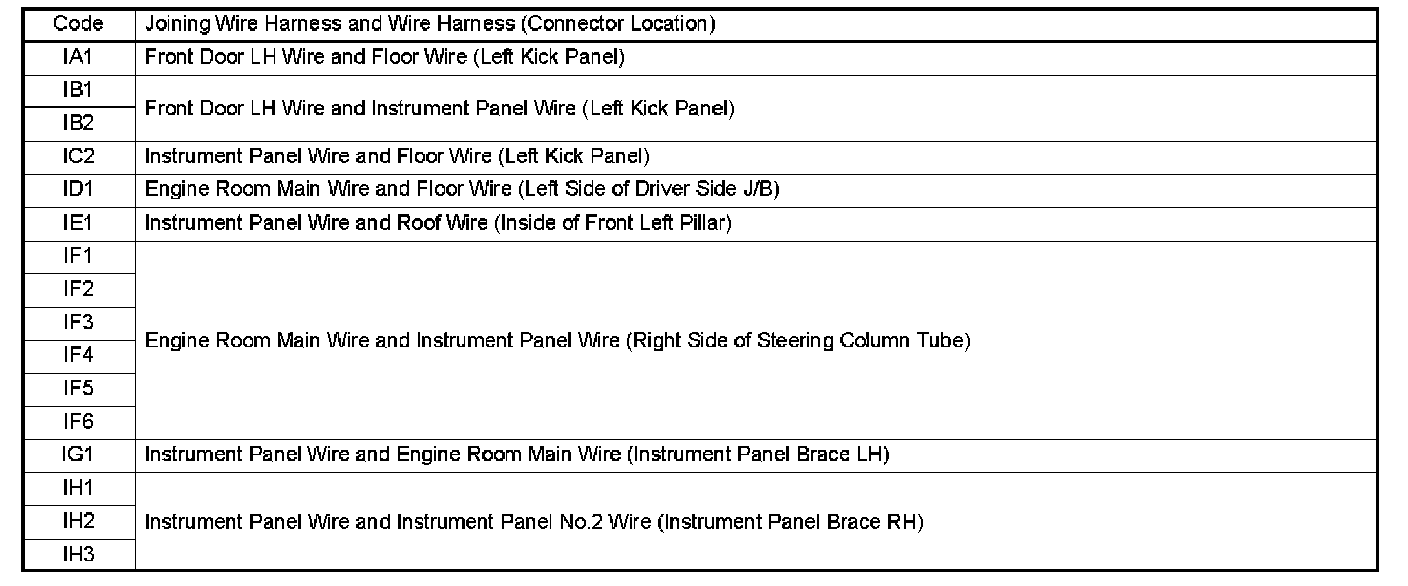

IA1 - IH3:

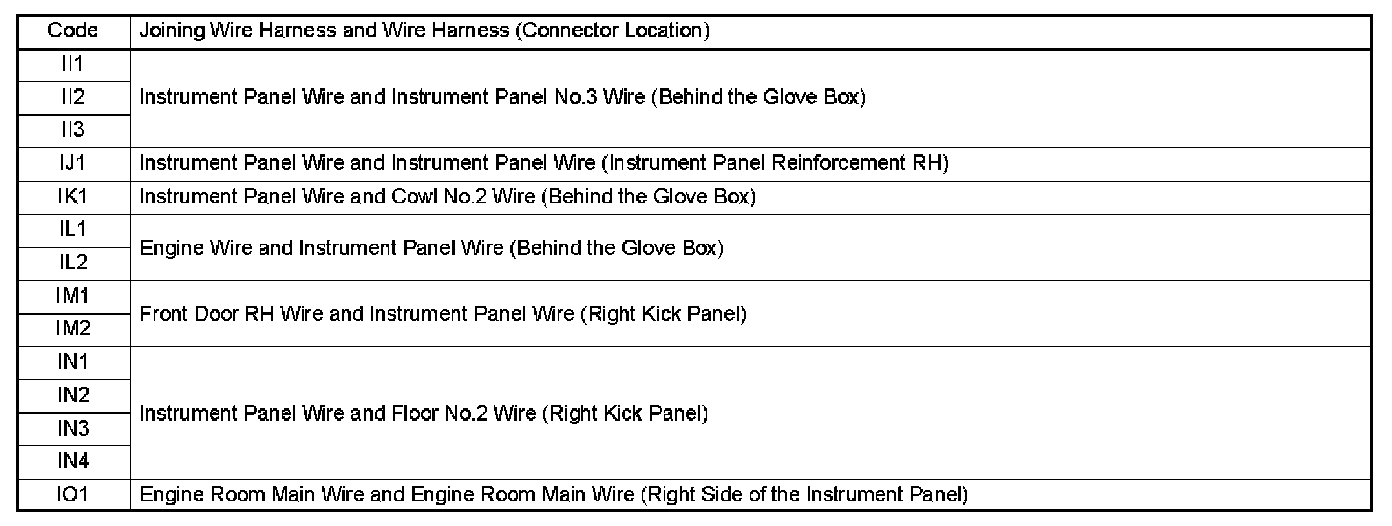

II1 - IO1:




BA1 - BC1:

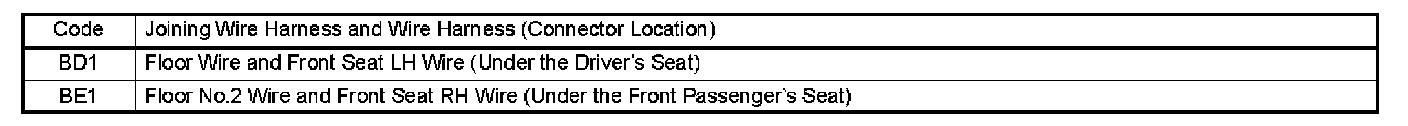

BD1 - BE1:
