Clutch Accumulator Assembly

REPLACEMENT





1. DISCONNECT CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE TUBE
(a) Remove the bolt and separate the tube clamp bracket.
(b) Using SST, disconnect the 3 flexible hose tubes.
SST 09023-00100

HINT: Use a container to catch the fluid.

2. REMOVE CLUTCH ACCUMULATOR ASSY
(a) Remove the 2 bolts and flexible hose bracket No.2.
(b) Remove the 2 nuts and clutch accumulator assy.





3. INSTALL CLUTCH ACCUMULATOR ASSY
(a) Install the clutch accumulator assy with the 2 nuts.
Torque: 12 Nm (120 kgf-cm, 9 ft-lbf)

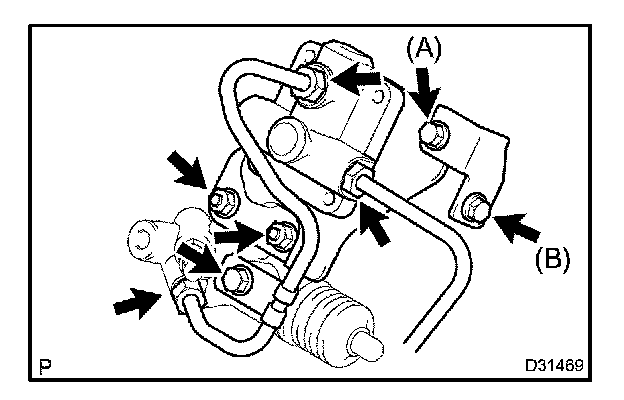

(b) Install the flexible hose bracket No.2 with the 2 bolts.
Torque:
Bolt A: 12 Nm (120 kgf-cm, 9 ft-lbf)
Bolt B: 39 Nm (398 kgf-cm, 29 ft-lbf)

4. CONNECT CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE TUBE
(a) Using SST, connect the 3 flexible hose tubes to the clutch accumulator assy.
SST 09023-00100
Torque: 15 Nm (155 kgf-cm, 11 ft-lbf)

(b) Install the tube clamp bracket with the bolt.
Torque: 12 Nm (120 kgf-cm, 9 ft-lbf)

5. BLEED CLUTCH PIPE LINE
(a) Fill the brake reservoir tank with brake fluid and bleed the clutch system.
Torque: 8.3 Nm (85 kgf-cm, 73 ft-lbf)

6. CHECK CLUTCH FLUID LEAKAGE
7. CHECK FLUID LEVEL IN RESERVOIR
