Flex Plate
>>
Specifications
Flex Plate: Specifications

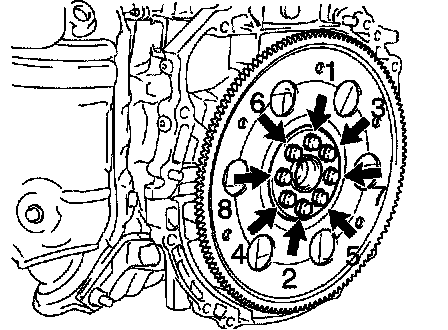

Drive plate & ring gear sub-assy
98 Nm (1000 kgf-fm, 72 ft.lb)
Drive plate runout (Maximum)
0.20 mm (0.0079 inch)
