Component Tests and General Diagnostics

INSPECTION

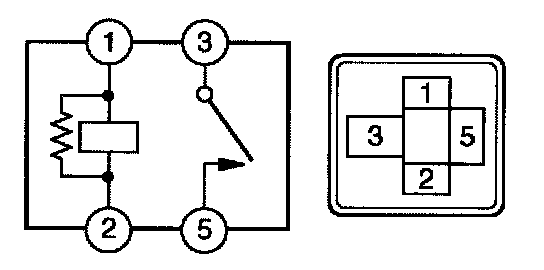

1. INSPECT DEFOGGER RELAY







a. Inspect the defogger relay (marking: DEF) continuity.

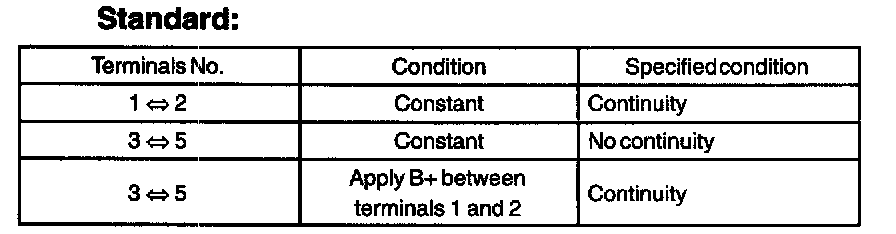

If the continuity is not as specified, replace the relay.
