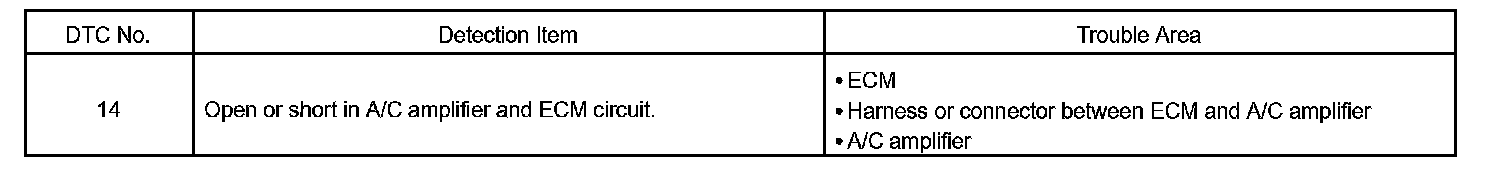

DTC 14 ENGINE COOLANT TEMPERATURE COMMUNICATION CIRCUIT

CIRCUIT DESCRIPTION

Detection Item:

This sensor detects the temperature and sends the appropriate signals to the A/C amplifier. These signals are used for warm up control when engine is cold.

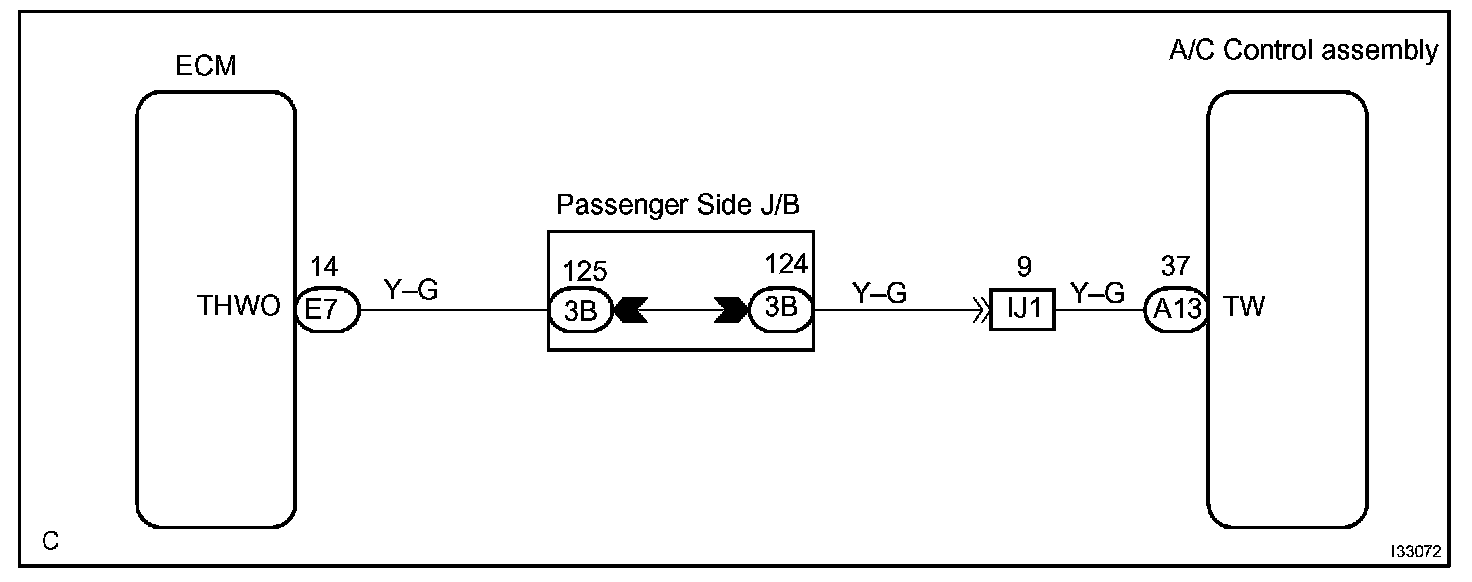

Wiring Diagram:

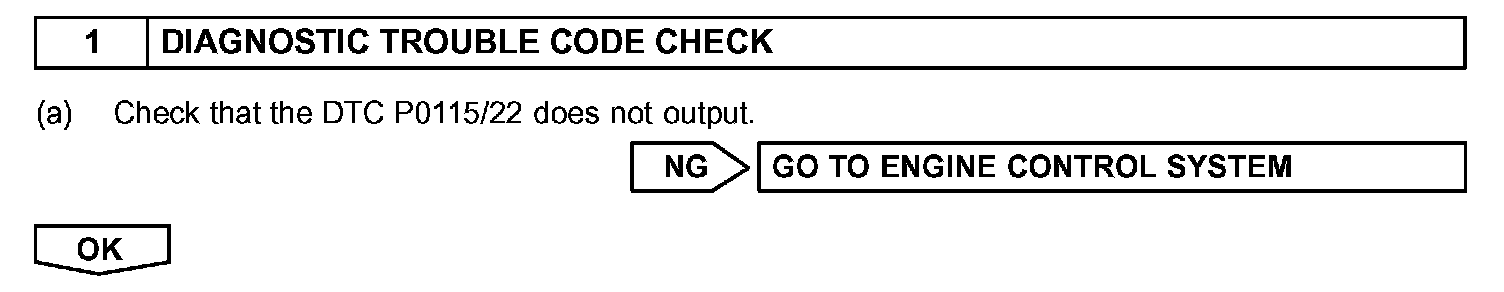

Step 1:

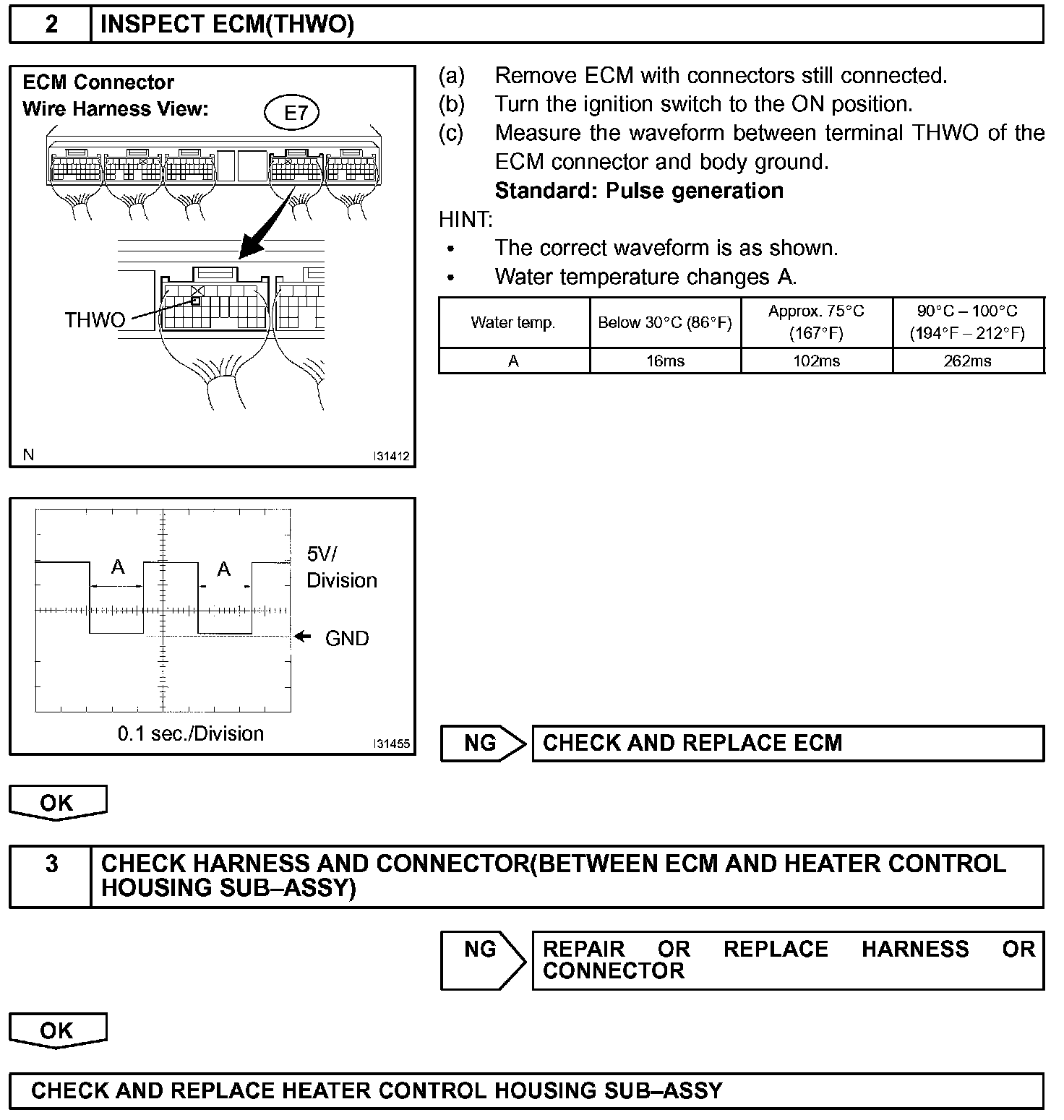

Step 2 - 3:

INSPECTION PROCEDURE
