Power Source Circuit (Radio and Navigation Assy)

POWER SOURCE CIRCUIT (RADIO AND NAVIGATION ASSY)

CIRCUIT DESCRIPTION
This circuit provides the power to the radio and navigation assy.

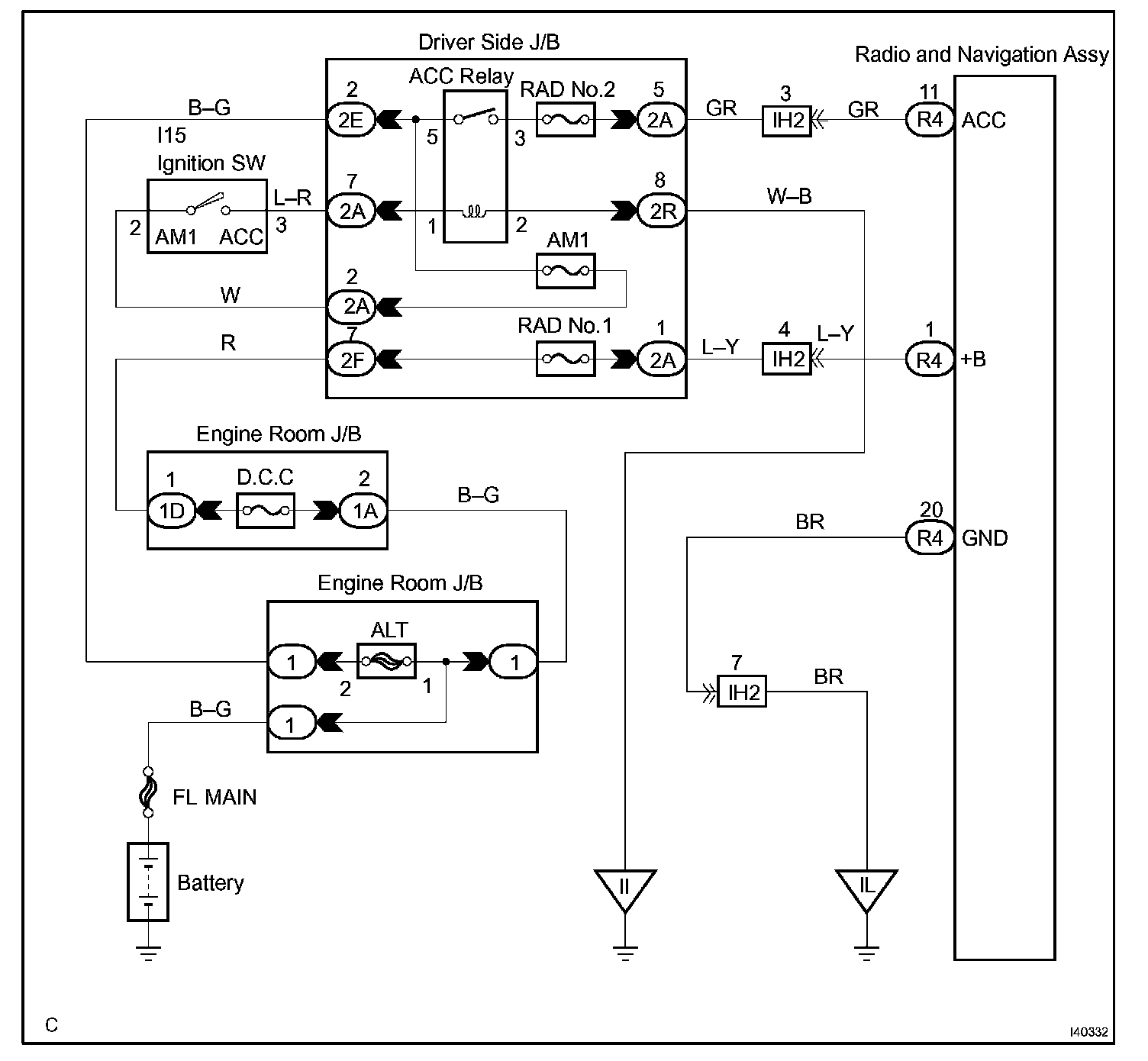

Wiring Diagram:

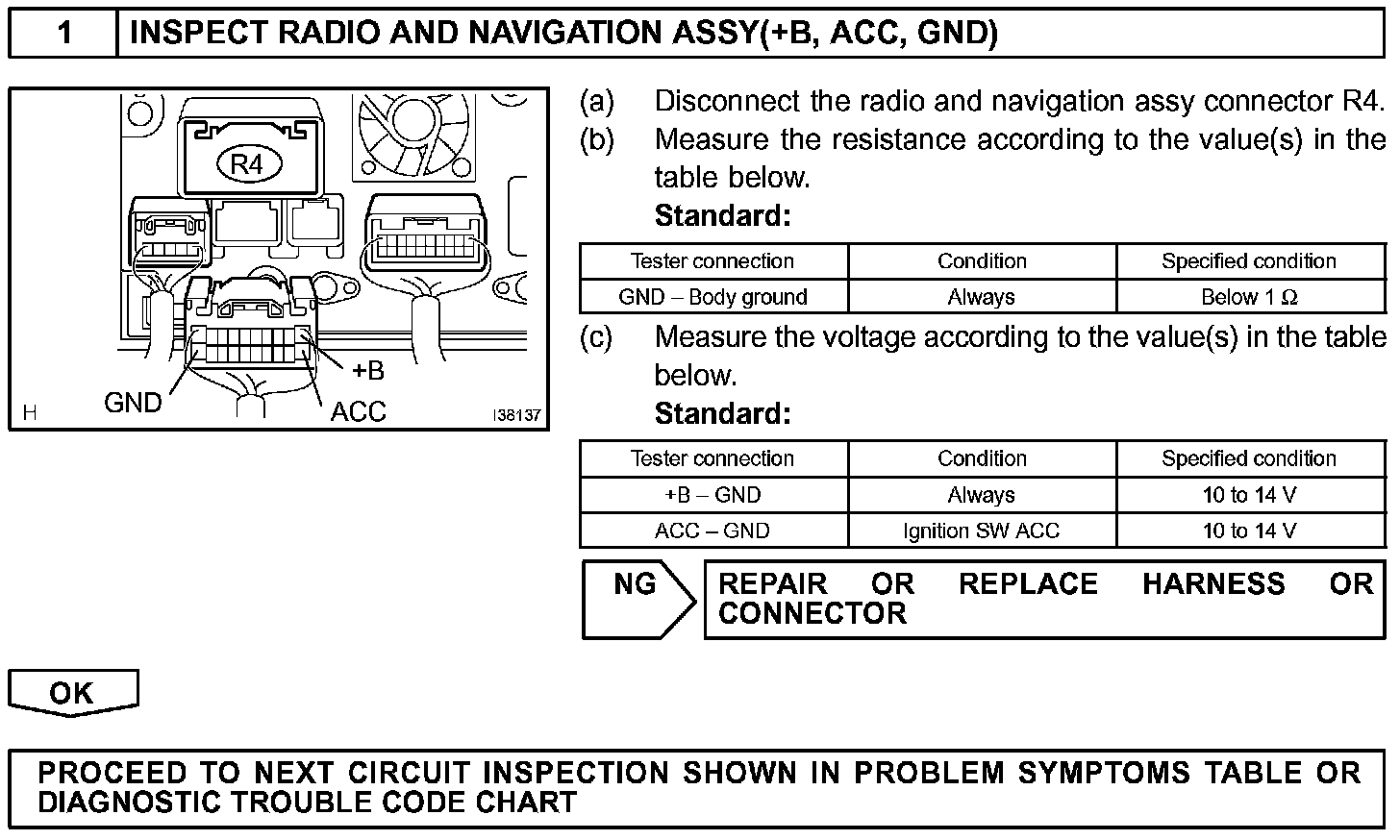

Step 1:




INSPECTION PROCEDURE
