Replacement No.2

REPLACEMENT

1. REMOVE AIR CONDITIONER CONTROL ASSEMBLY
2. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER




3. REMOVE RADIO RECEIVER ASSEMBLY
a. Insert screwdriver at indicated point and remove the radio receiver assembly from instrument cluster finish panel sub-assembly.




4. REMOVE RADIO RECEIVER BRACKET NO.1

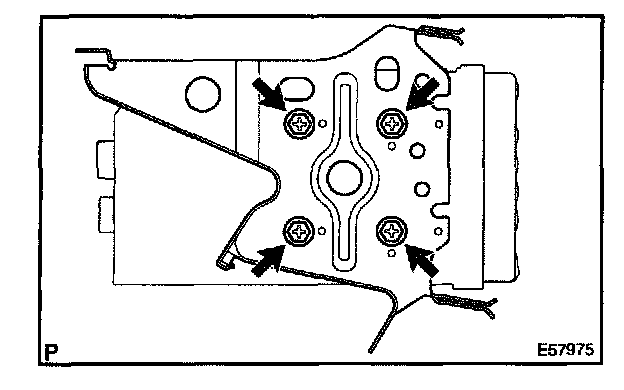

a. Remove the 4 screws and radio receiver bracket No 1.




5. REMOVE RADIO RECEIVER BRACKET NO.1
a. Remove the 4 screws and radio receiver bracket No.1.
