Front No.2 Speaker Assy

REPLACEMENT

1. REMOVE INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY NO.2




2. REMOVE FRONT NO.2 SPEAKER ASSEMBLY

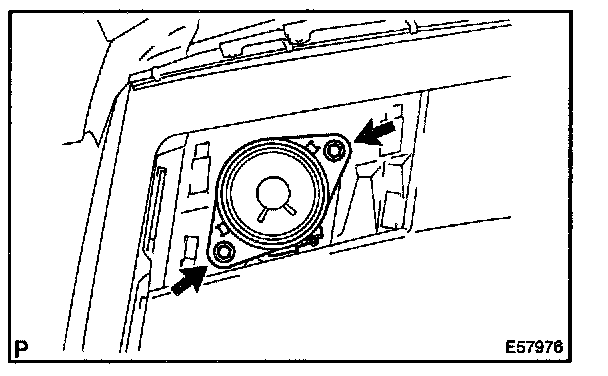

a. Remove the 2 bolts.
b. Disconnect the connector and remove the front No.2 speaker assembly.




3. INSTALL FRONT NO.2 SPEAKER ASSEMBLY
a. Connect the connector.

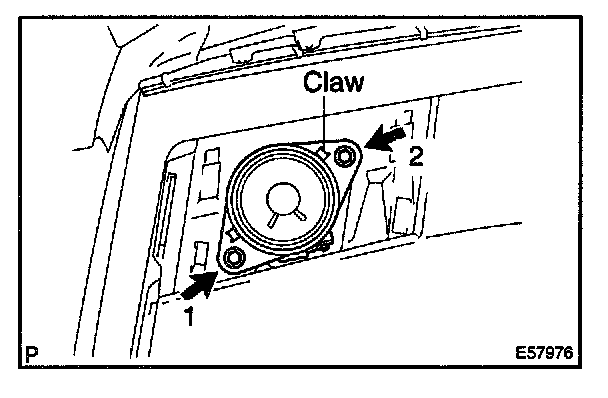

b. Align a claw with the notch of the instrument panel safety pad with 2 bolts, and install the front No.2 speaker assembly.

NOTE: Install them in the order shown in the illustration.
