Home >> Toyota >> 2004 >> Camry V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> CD Cannot Be Inserted or Is Ejected Right After Insertion

CD Cannot Be Inserted or Is Ejected Right After Insertion

CD CANNOT BE INSERTED OR IS EJECTED RIGHT AFTER INSERTION

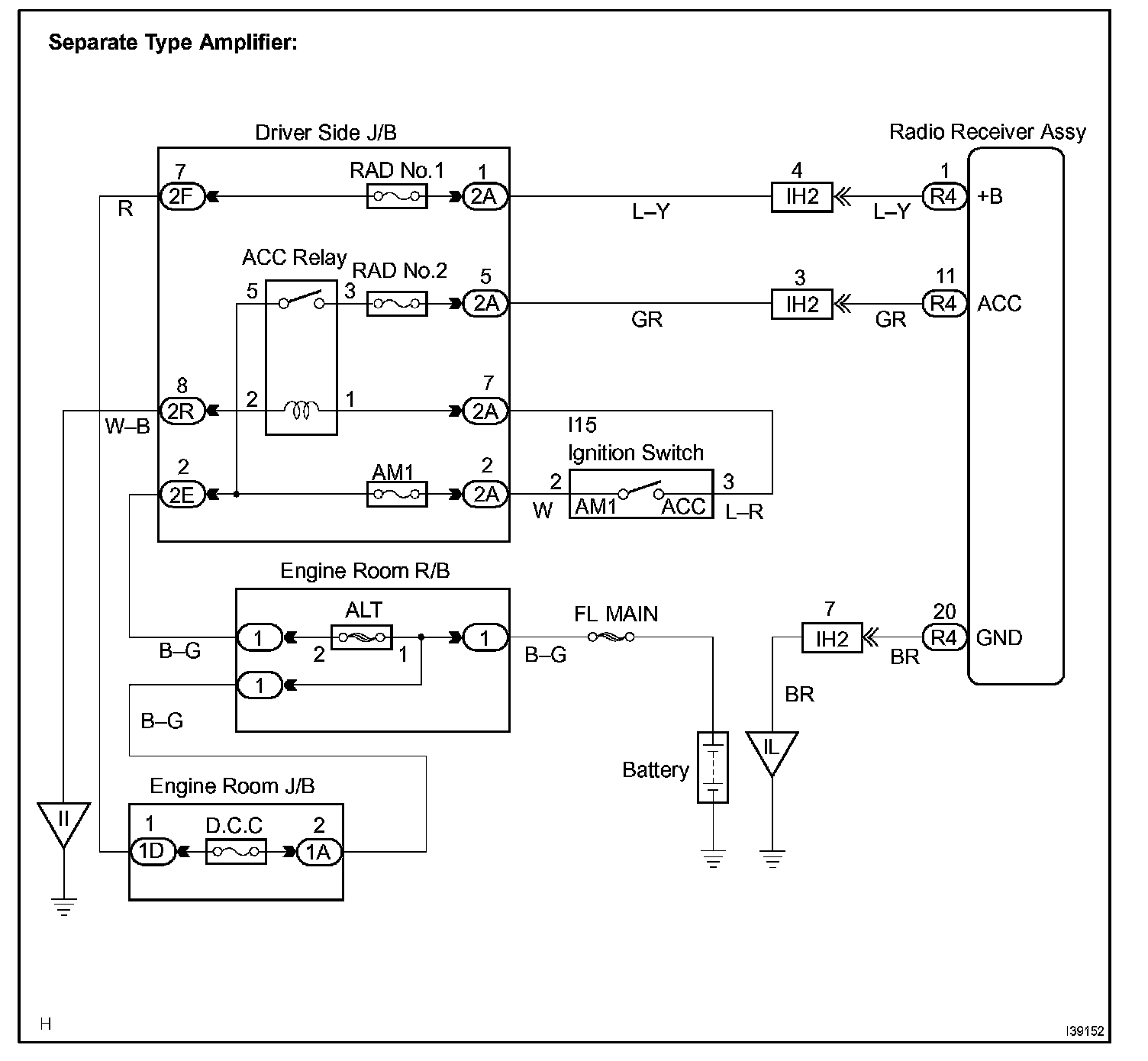

Wiring Diagram:

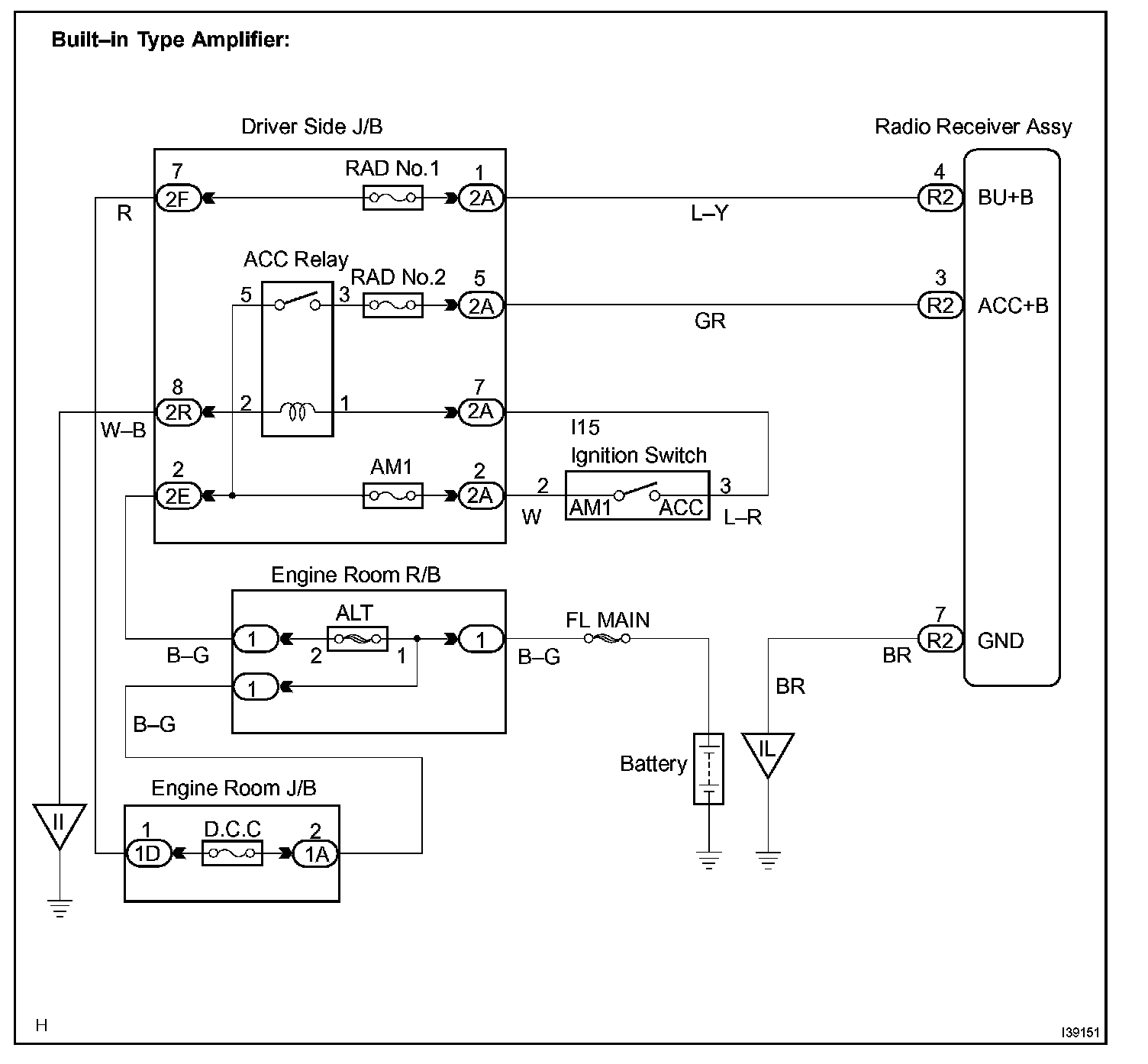

Wiring Diagram:

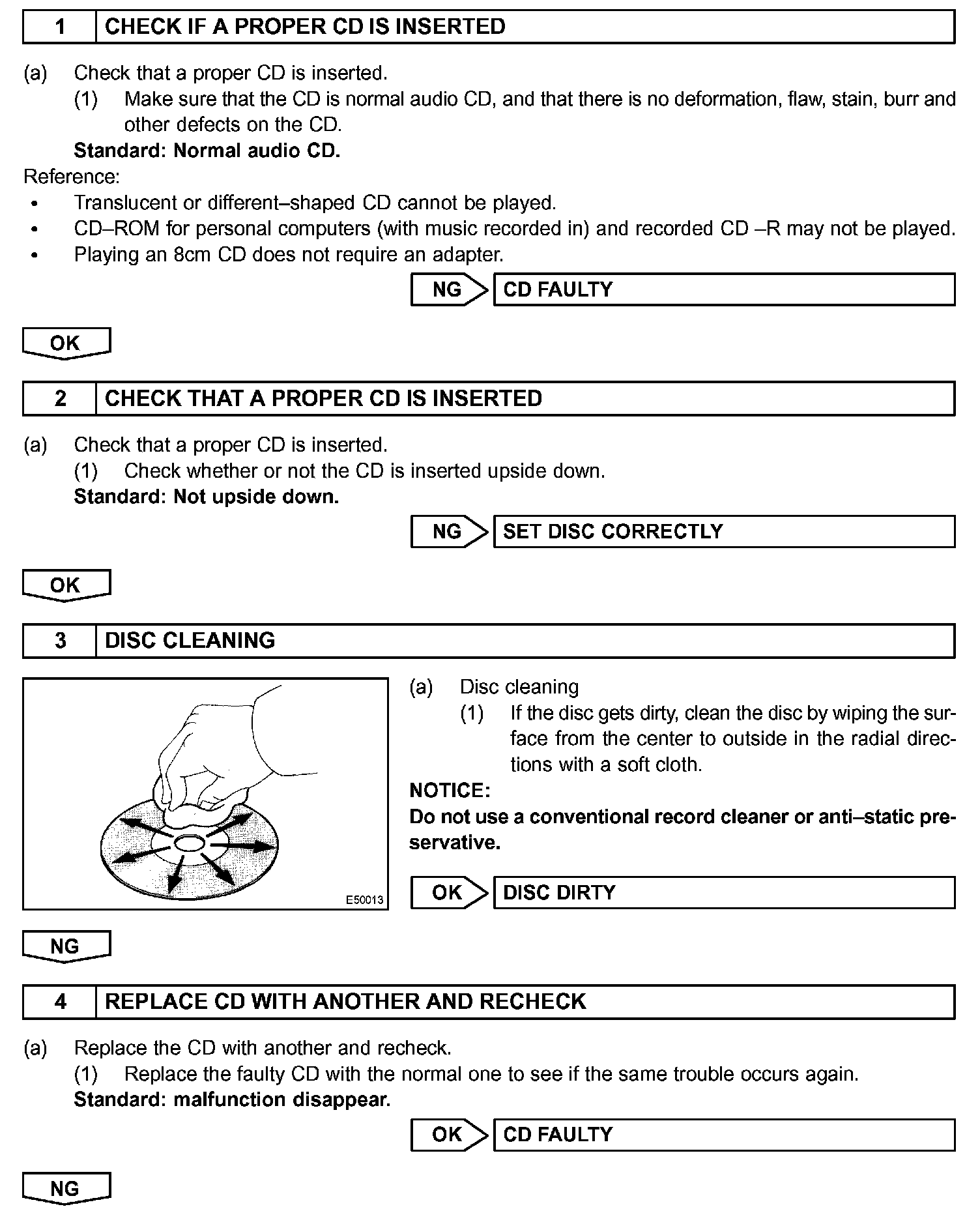

Step 1 - 4:

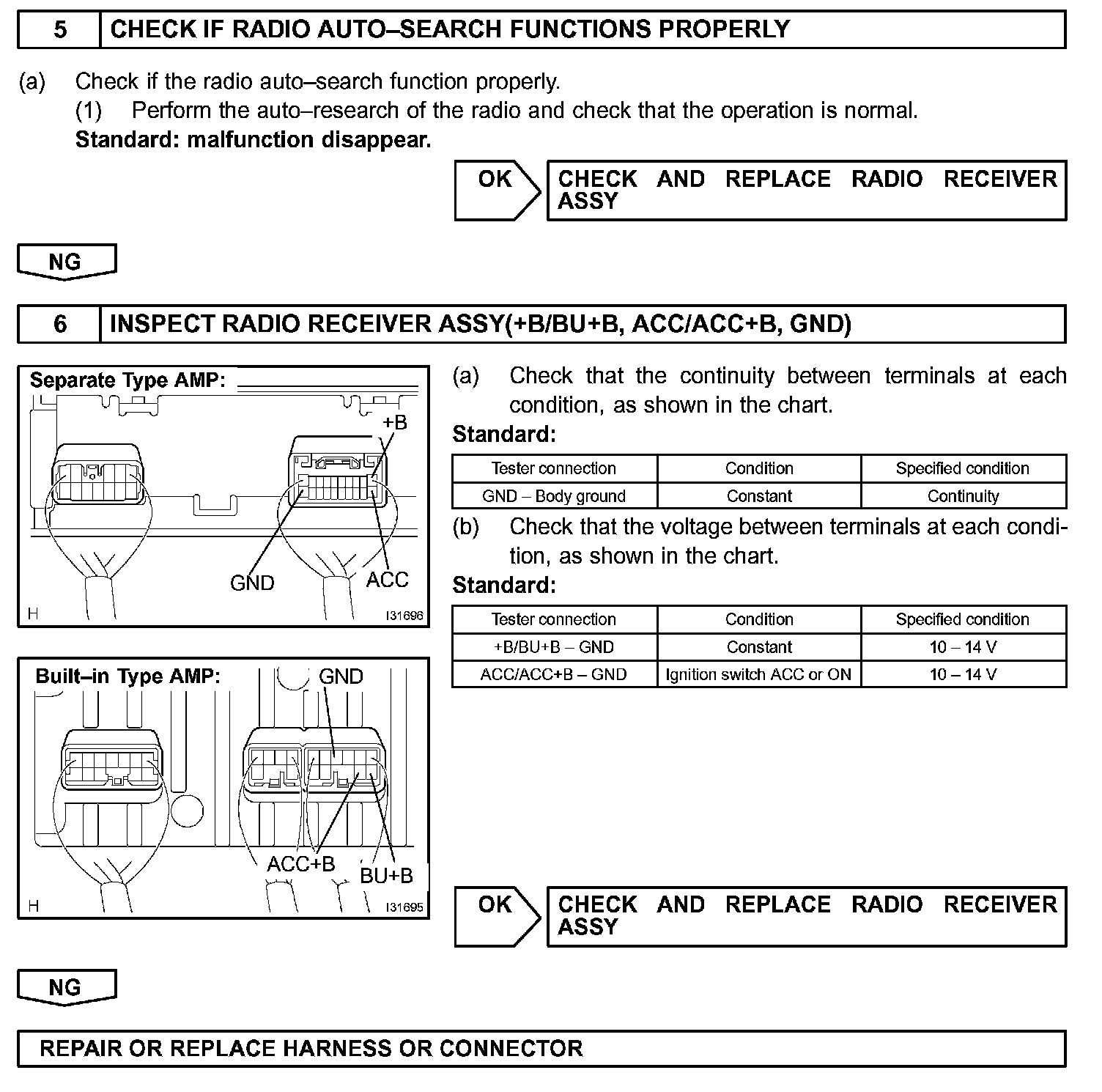

Step 5 - 6:

INSPECTION PROCEDURE
