Component Tests

INSPECTION

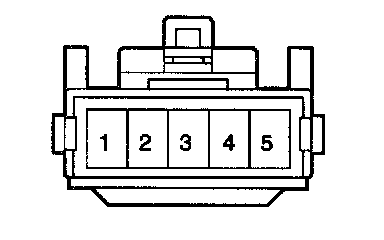

1. INSPECT SLIDE ROOF MOTOR SWITCH

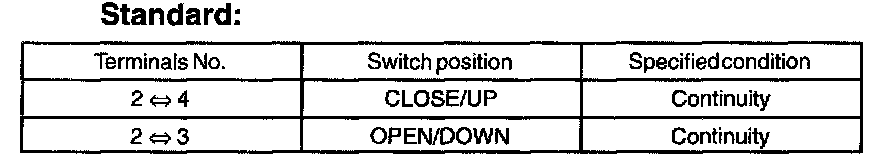

a. Inspect the slide roof motor switch continuity.

If continuity is not as specified, replace the switch.
