Exploded Views

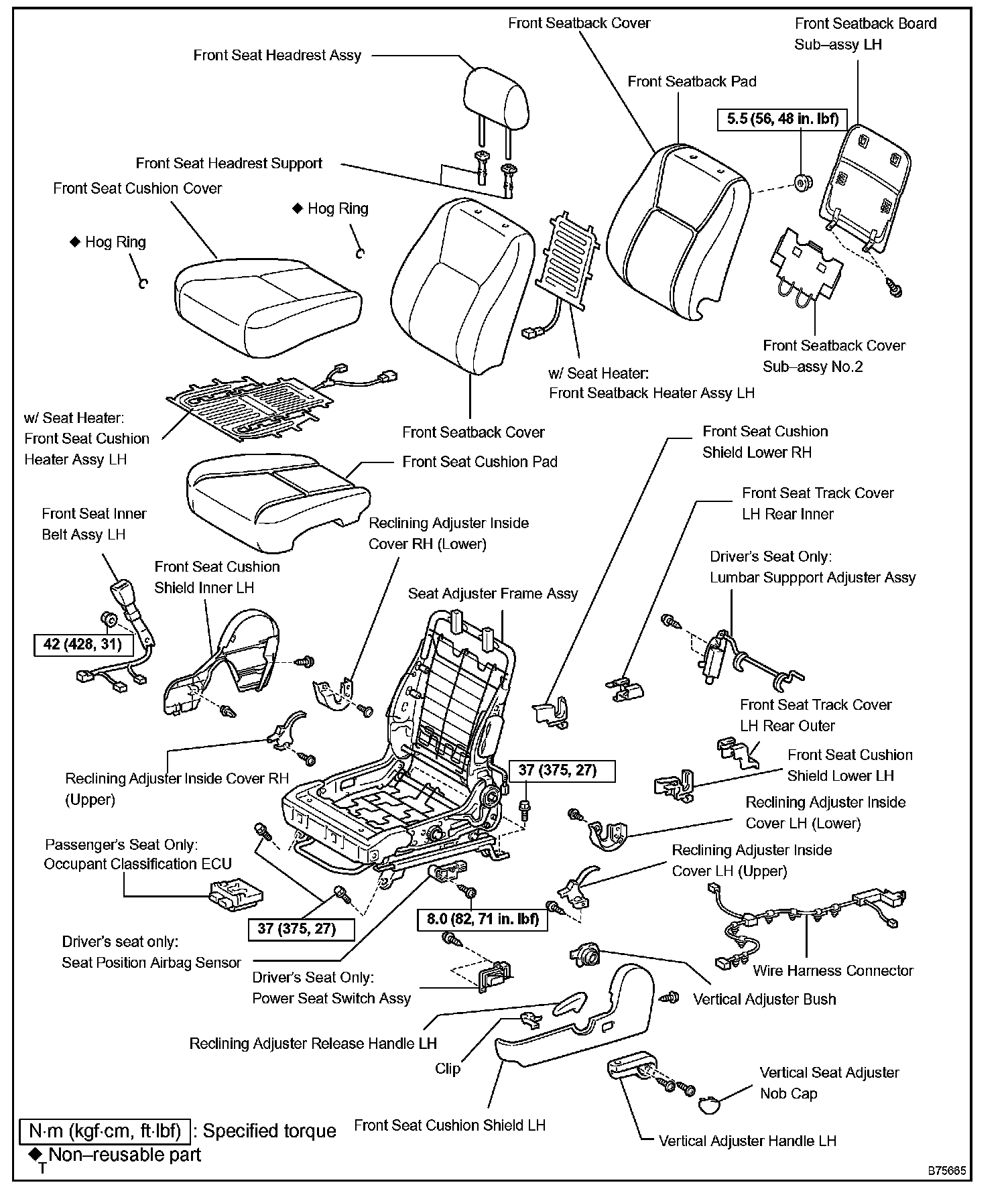

Front Seat Assembly (Power Seat Type):
Front Seat Assembly (Manual Seat Type):

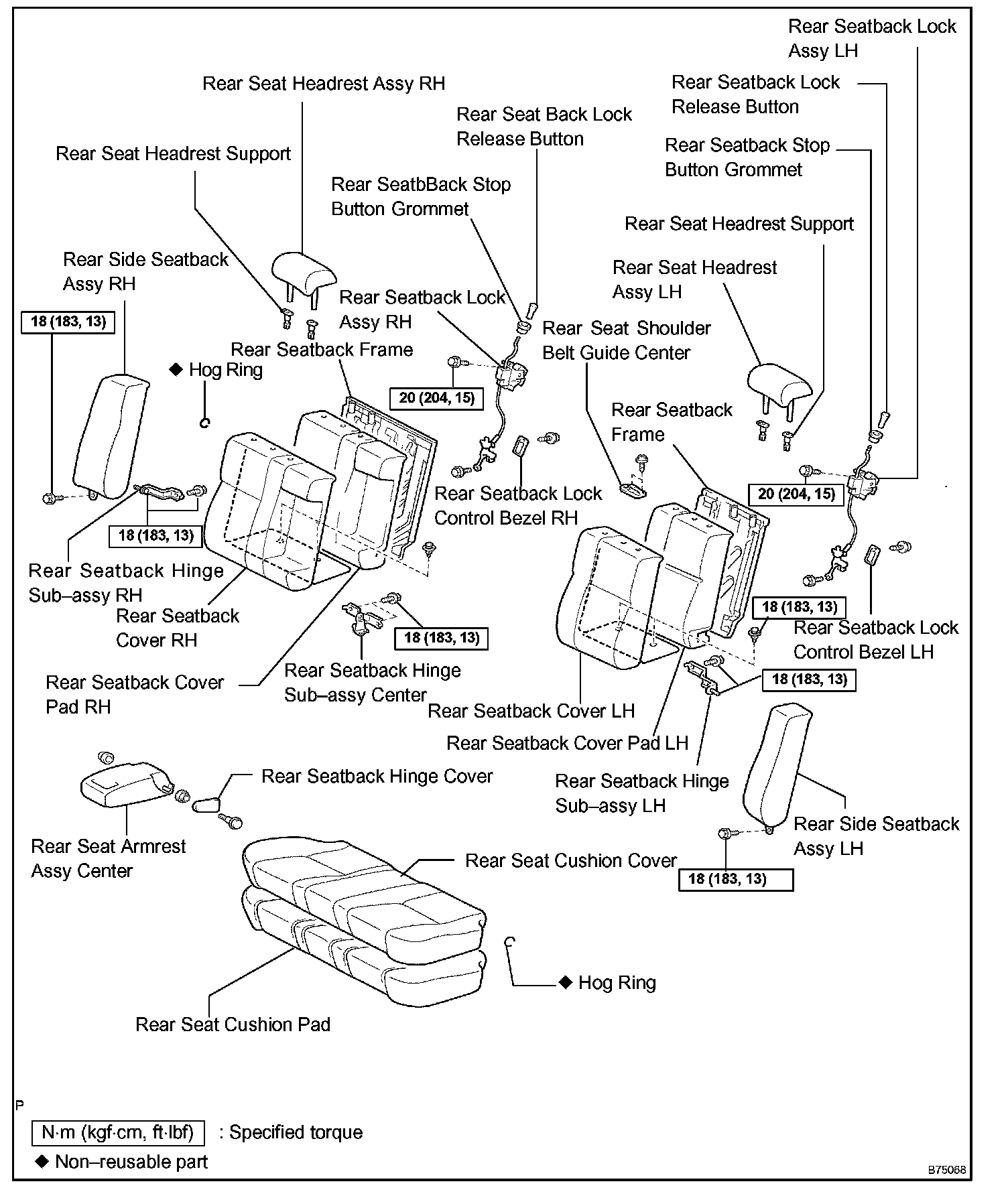

Rear Seat Assembly:
