Component Inspection

INSPECTION

HINT:
- On the RH side, use in the same procedure as on the LH side.




1. INSPECT SEAT HEATER SWITCH




a. Inspect the seat heater switch driver's side.continuity.
If the continuity is not as specified, replace the seat heater switch.







b. Inspect the seat heater switch passenger's side.continuity.
If the continuity is not as specified, replace the seat heater switch.




2. INSPECT FRONT SEAT CUSHION HEATER ASSEMBLY LH

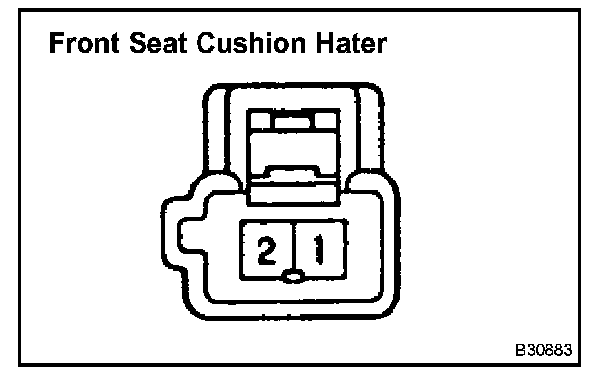

a. Inspect the seat cushion heater assembly LH continuity.
If the continuity is not as specified, replace the seat cushion heater assembly.




3. INSPECT FRONT SEAT BACK HEATER ASSEMBLY LH

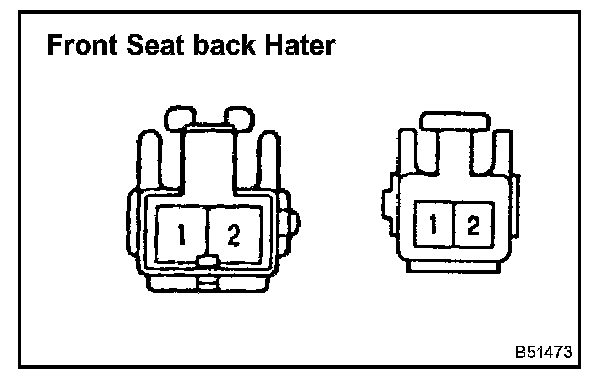

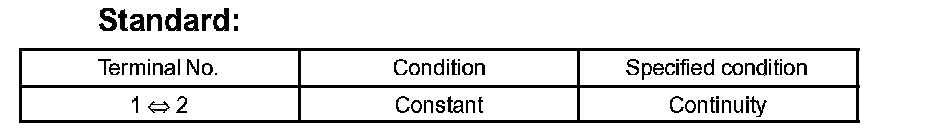

a. Inspect the seat back heater assembly LH continuity.
If the continuity is not as specified, replace the seat back heater assembly.

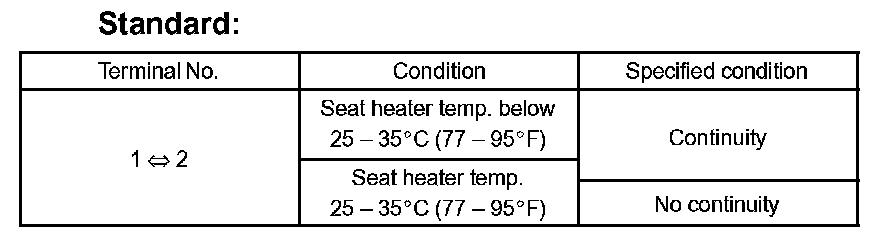

b. Inspect the seat cushion thermostat continuity.
1. Disconnect the seat back heater from the seat cushion heater LH.

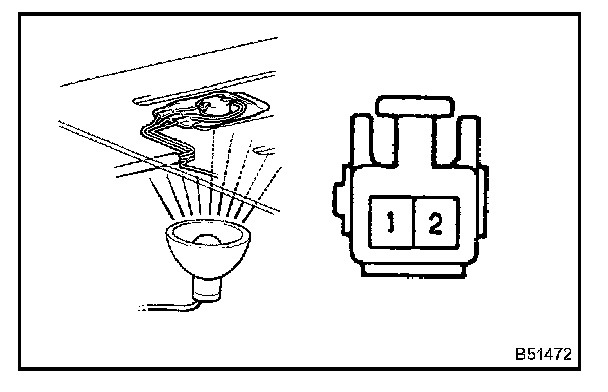

2. Heat up the thermostat LH with a heat light.




3. Inspect the seat cushion heater continuity between the terminals.
If the continuity is not as specified, replace the seat heater cushion heater assembly.

4. INSPECT FRONT SEAT CUSHION HEATER ASSEMBLY RH
5. INSPECT FRONT SEAT BACK HEATER ASSEMBLY RH
