Check the Warning Lights

CHECK THE WARNING LIGHTS




a. Release the parking brake lever.

NOTE: When releasing the parking brake, set the chocks to hold the vehicle for safety.

HINT: When the parking brake is applied or the level of the brake fluid is low, the BRAKE warning light comes on.

b. Check the warning lights.

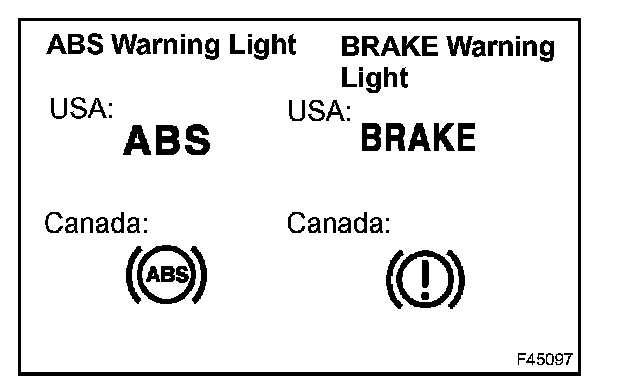

When the ignition switch is turned ON, check that the ABS warning light and brake warning light come on for 3 sec.

HINT:
- When the parking brake is applied or the level of the brake fluid is low, the brake warning light comes on.
- If the indicator check result is not normal, proceed to troubleshooting for the ABS warning light circuit or brake warning light circuit.
