Parking Brake Cable Assembly No. 3

PARKING BRAKE CABLE ASSY NO.3
REPLACEMENT

HINT: For parking brake cable No.2, employ the same procedure to the RH side.

1. REMOVE REAR WHEEL
2. SEPARATE REAR DISC BRAKE CALIPER ASSY, LH
a. Remove the 2 bolts and separate the rear disc brake caliper assy LH.

HINT: Do not the flexible hose from the brake caliper assy LH.

3. REMOVE REAR BRAKE DRUM SUB-ASSY (DRUM REAR BRAKE TYPE)
4. REMOVE REAR DISC (DISC REAR BRAKE TYPE)
5. REMOVE PARKING BRAKE SHOE
6. REMOVE PARKING BRAKE CABLE HEAT INSULATOR
a. Remove the 3 nuts and parking brake heat insulator.








7. REMOVE PARKING BRAKE CABLE ASSY NO.3

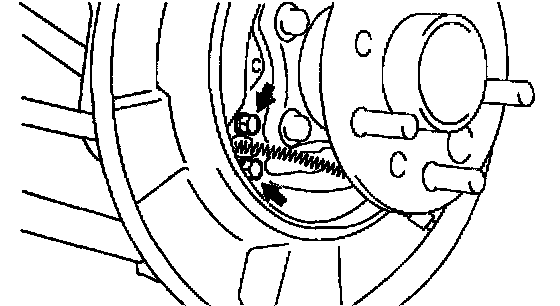

a. Remove the 2 bolts and disconnect the parking brake cable assy No.3 from the backing plate.

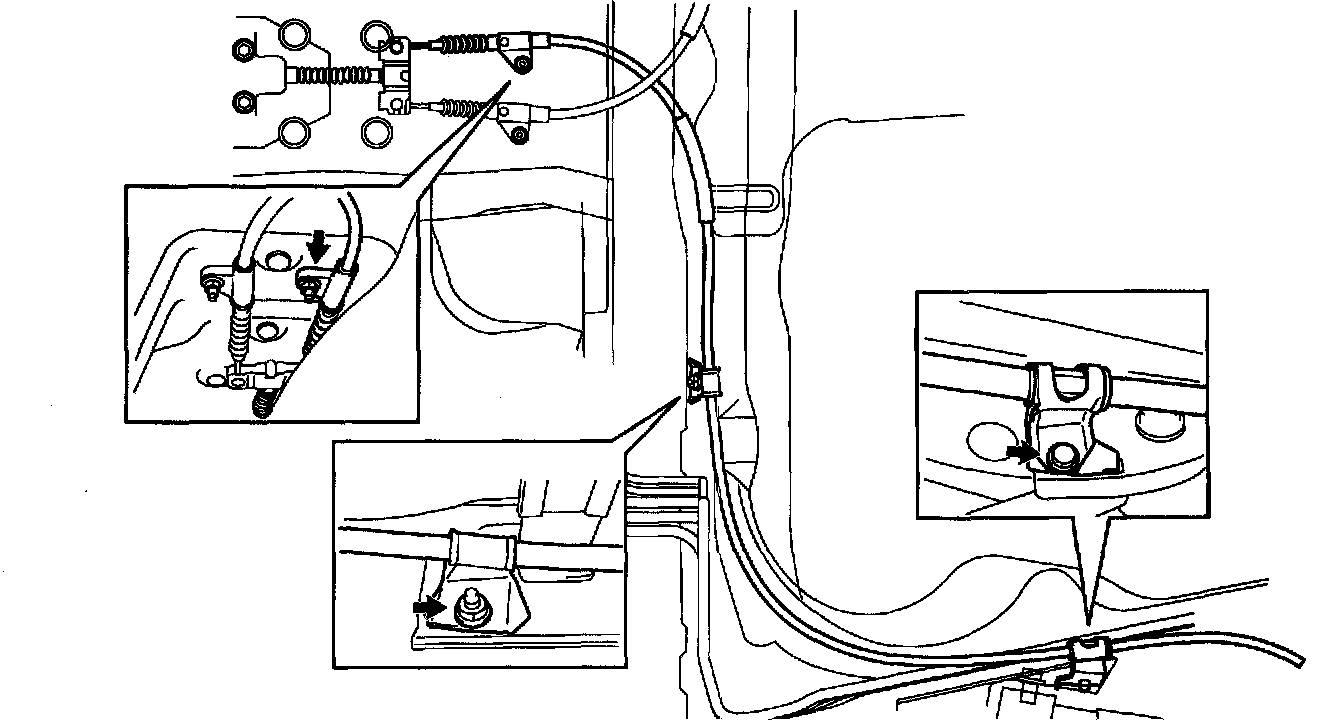

b. Remove the 2 nuts, bolt and parking brake cable assy No.3.
c. Disconnect the parking brake cable assy No.3 from the parking brake equalizer.
8. INSTALL PARKING BRAKE CABLE ASSY NO.3
a. Connect the parking brake cable assy No.3 to the parking brake equalizer.

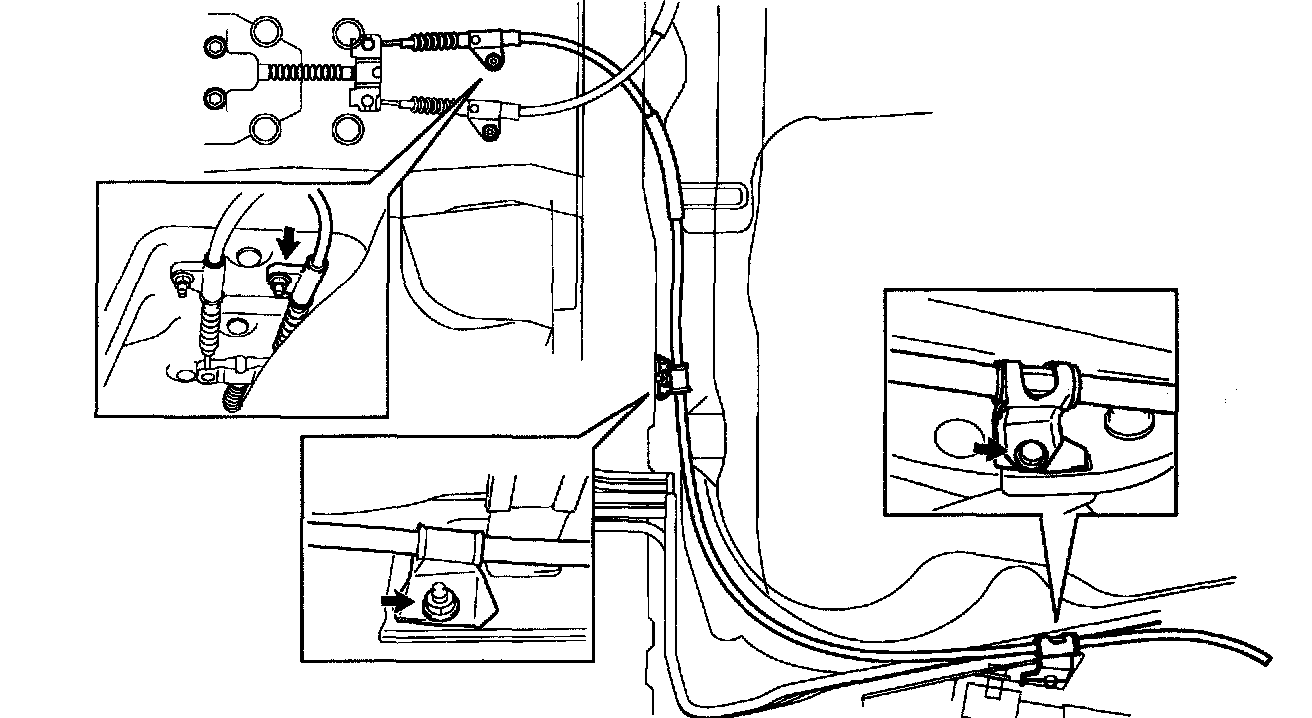

b. Install the parking brake cable assy No.3 with the 2 nuts and bolt.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)

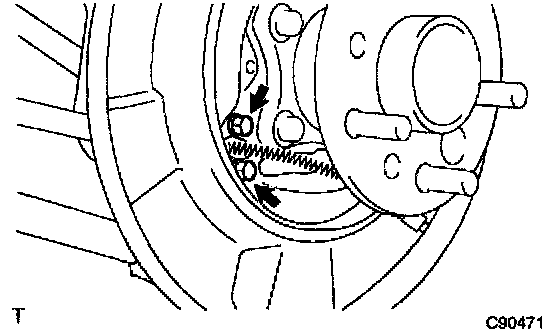

c. Install the parking brake cable assy No.3 with the 2 bolts to the backing plate.
Torque: 7.8 Nm (80 kgf-cm, 69 inch lbs.)
9. INSTALL PARKING BRAKE CABLE HEAT INSULATOR
a. Install the parking brake heat insulator with the 3 nuts.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
10. APPLICATION HIGH TEMPERATURE GREASE
11. INSTALL PARKING BRAKE SHOE
12. CHECK PARKING BRAKE INSTALLATION
13. INSTALL REAR BRAKE DRUM SUB-ASSY (DRUM REAR BRAKE TYPE)
14. INSTALL REAR DISC (DISC REAR BRAKE TYPE)
15. ADJUST PARKING BRAKE SHOE CLEARANCE
16. INSTALL REAR DISC BRAKE CALIPER ASSY, LH
a. Install the rear disc brake caliper with the 2 bolts.
Torque: 47 Nm (480 kgf-cm, 35 ft. lbs.)
17. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
18. INSPECT AND ADJUST PARKING BRAKE PEDAL TRAVEL (PEDAL TYPE PARKING BRAKE)
19. INSPECT AND ADJUST PARKING BRAKE LEVER TRAVEL (LEVER TYPE PARKING BRAKE)
