Parking Brake Cable Assembly No. 4

PARKING BRAKE CABLE ASSY NO.4
REPLACEMENT
1. REMOVE CONSOLE PANEL UPPER REAR
2. REMOVE CONSOLE BOX CARPET
3. REMOVE RR CONSOLE BOX
4. REMOVE CONSOLE BOX MOUNTING BRACKET NO.2
a. Remove the 2 bolts and console box mounting bracket No.2.
5. REMOVE YAWRATE SENSOR (W/ VSC)
6. REMOVE PARKING BRAKE CABLE ASSY NO.4

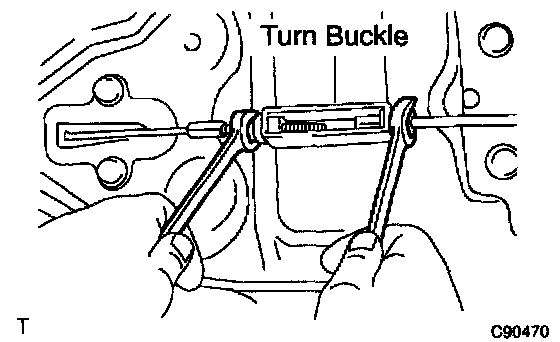

a. Loosen the turn buckle, disconnect the parking brake cable assy No.4 from the parking brake cable assy No.1.
b. Disconnect the parking brake cable assy No.4 from the parking brake equalizer.

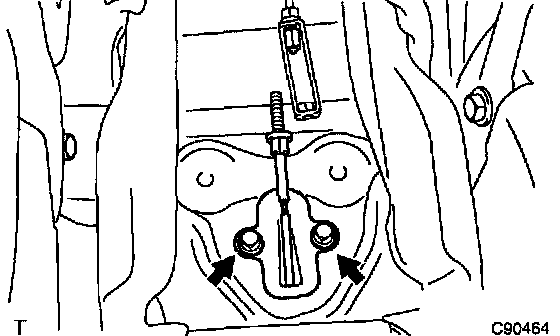

c. Remove the 2 bolts and parking brake cable assy No.4.
7. INSTALL PARKING BRAKE CABLE ASSY NO.4





a. Install the parking brake cable No.4 with the 2 bolts.
Torque: 12.5 Nm (128 kgf-cm, 9 ft. lbs.)
b. Connect the parking brake cable assy No.4 to the parking brake equalizer.

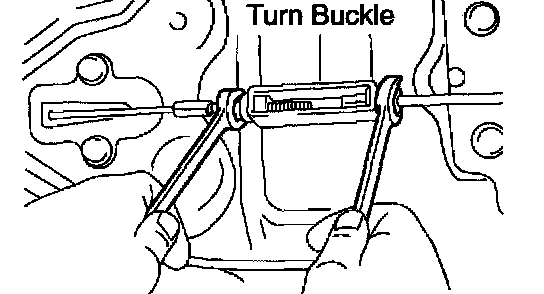

c. Tighten the turn buckle, connect the parking brake cable assy No.4 to the parking brake cable assy No. 1.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
8. INSTALL YAWRATE SENSOR (W/ VSC)
9. INSTALL CONSOLE BOX MOUNTING BRACKET NO.2
a. Install the console box mounting bracket No.2 with the 2 bolts.
Torque: 12.5 Nm (128 kgf-cm, 9 ft. lbs.)
10. INSTALL RR CONSOLE BOX
11. INSTALL CONSOLE BOX CARPET
12. INSTALL CONSOLE PANEL UPPER REAR
13. INSPECT AND ADJUST PARKING BRAKE PEDAL TRAVEL
14. PERFORM YAWRATE SENSOR ZERO POINT CALIBRATION (W/ VSC)
