Diagnosis Circuit

DIAGNOSIS CIRCUIT

CIRCUIT DESCRIPTION
This circuit operates when conducting the DTC check.

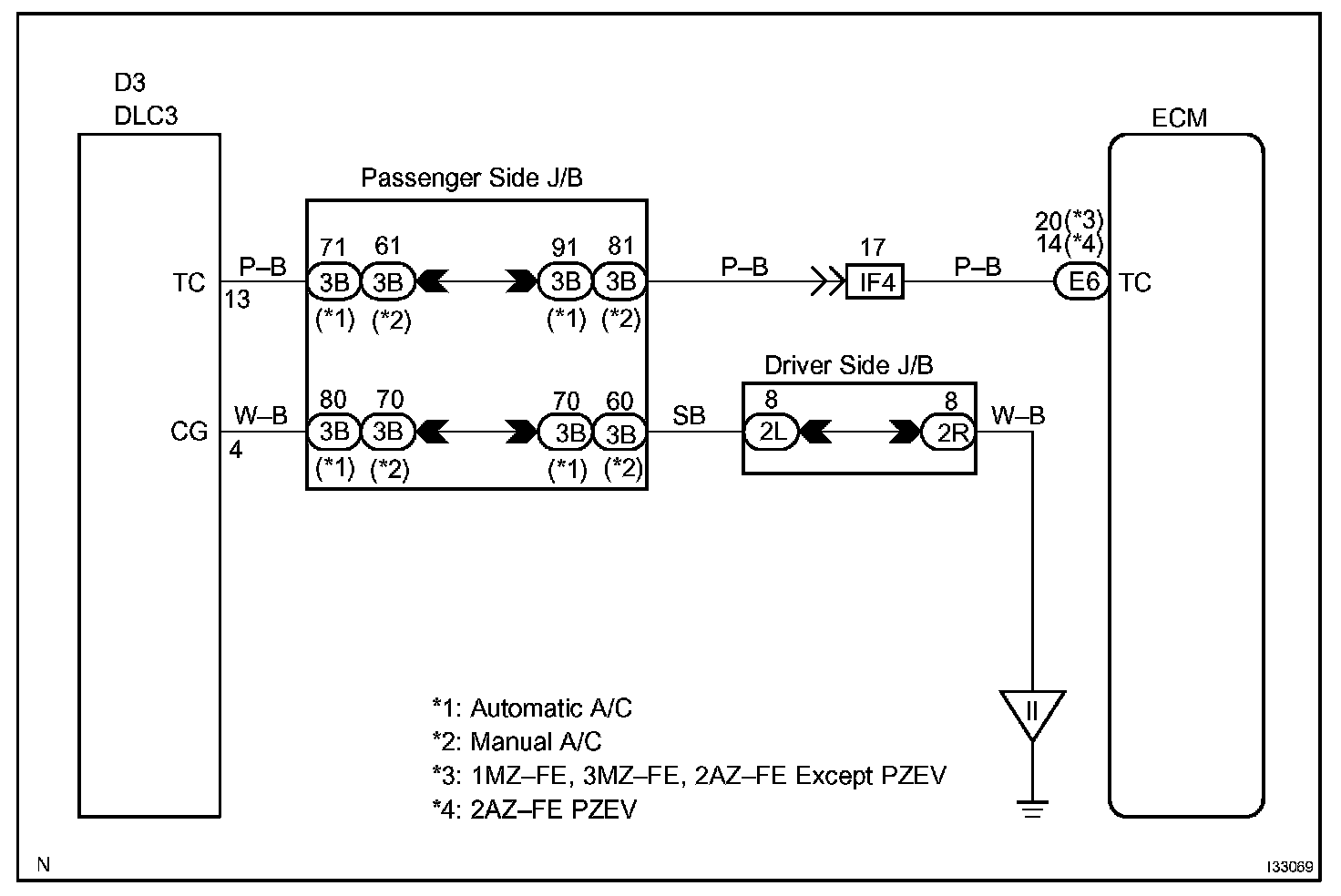

Wiring Diagram:

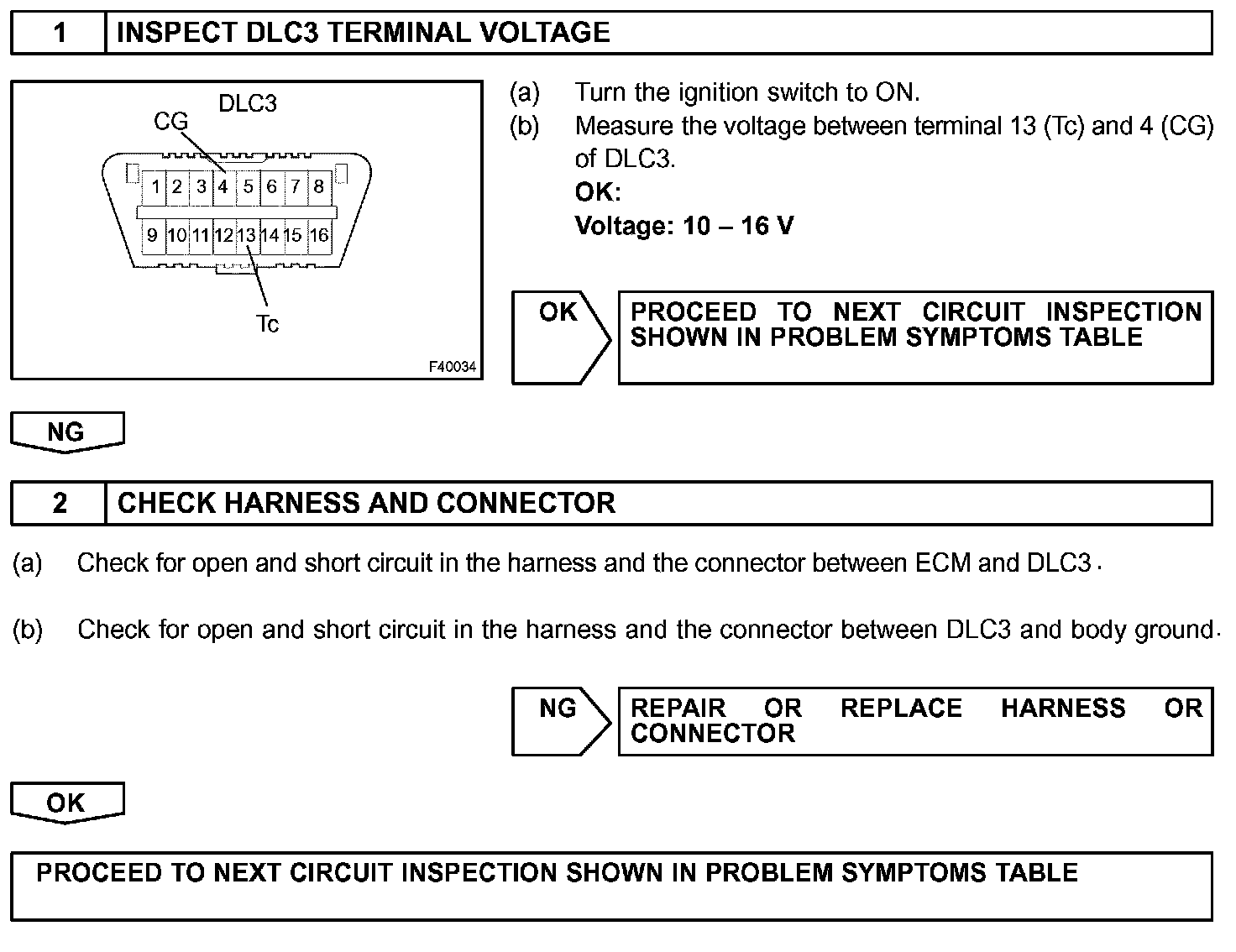

Step 1 - 2:




INSPECTION PROCEDURE
