Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
Camry V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>

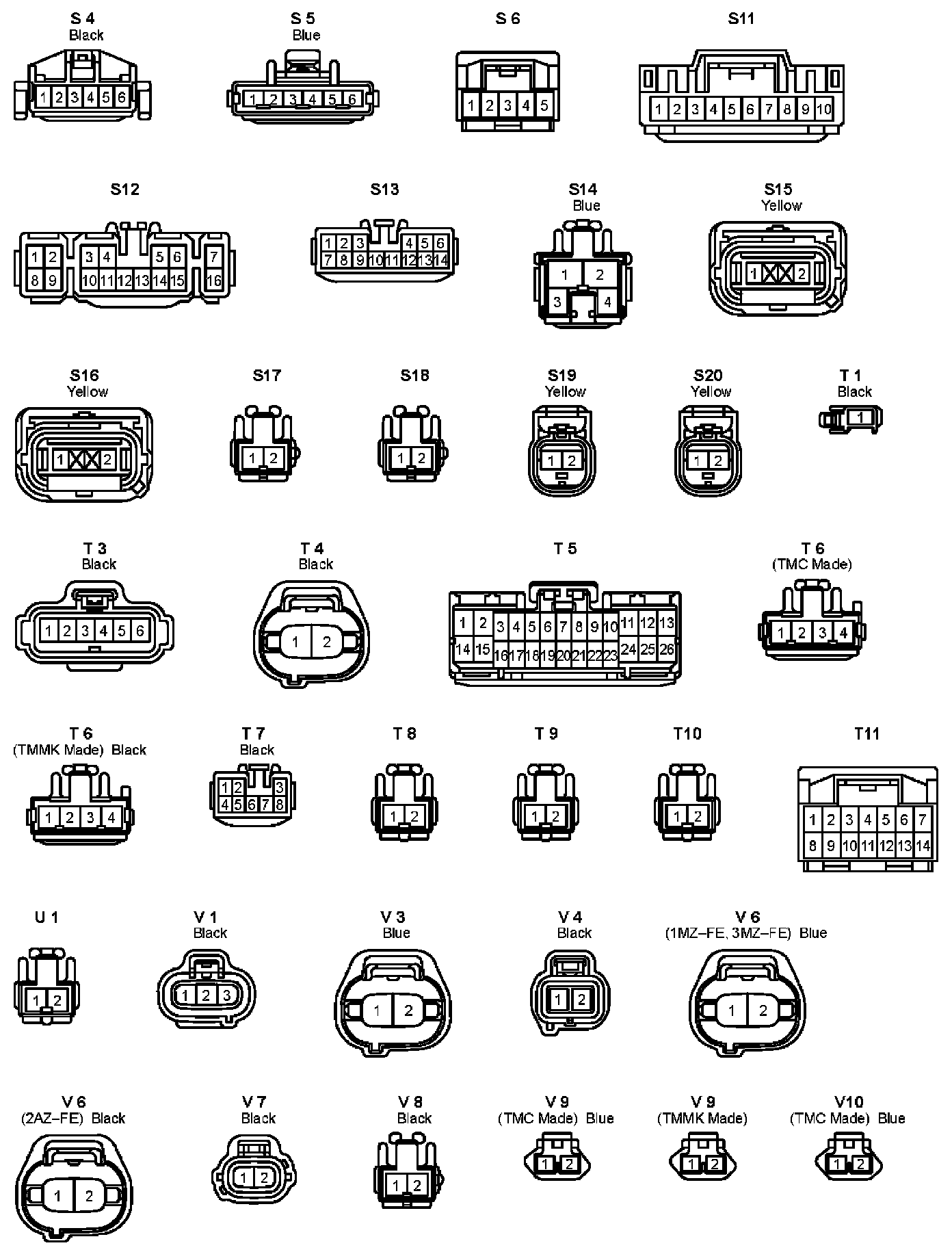

S4 - V10
S4 - V10
S4 - V10:
