Air Bag Systems
>>
Impact Sensor
>>
Side Air Bag Sensor Assy RH
Side Air Bag Sensor Assy RH

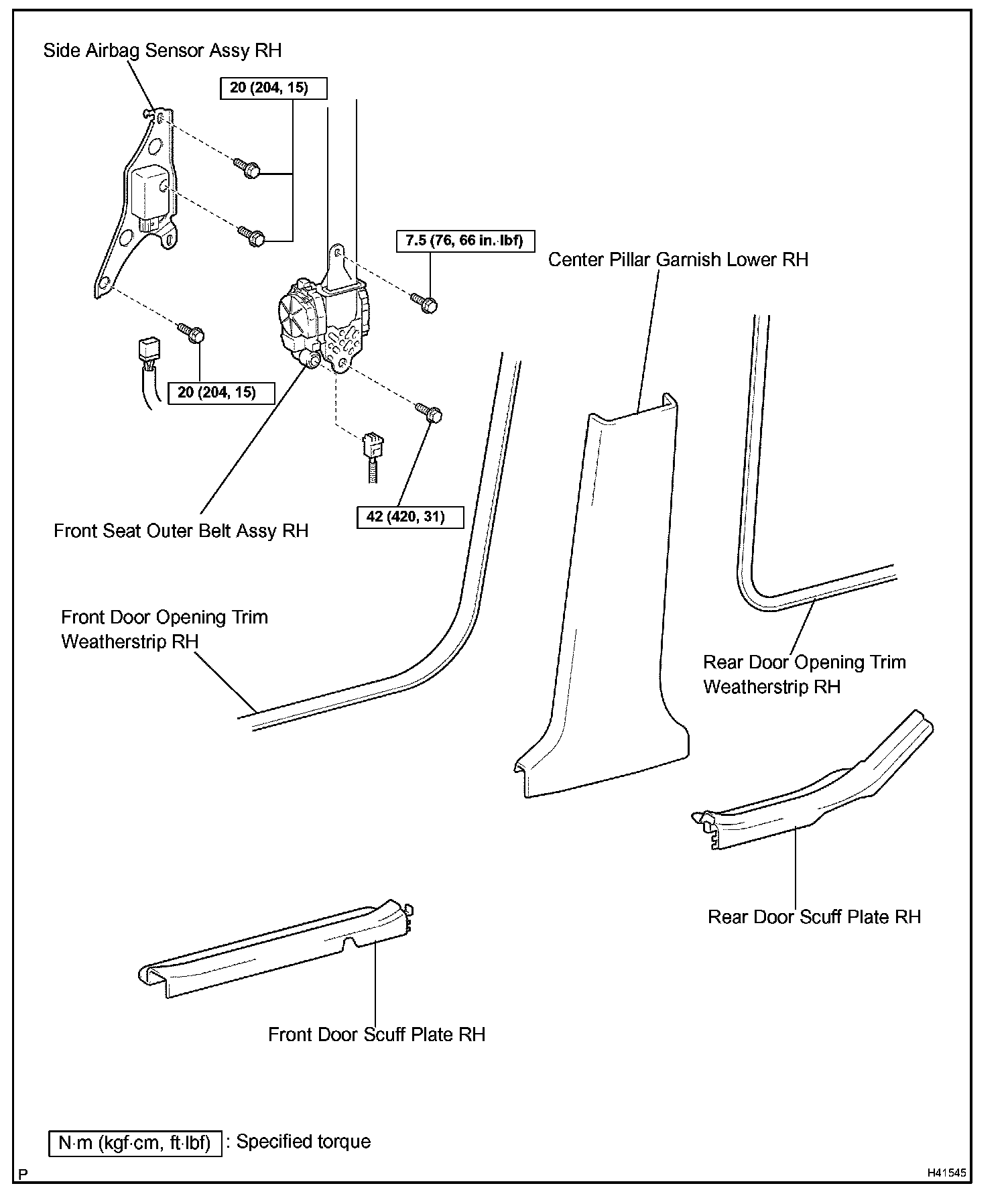

Side Air Bag Sensor Assy RH:
