Brake Pedal Assy
>>
Brake Pedal Support
Brake Pedal Support

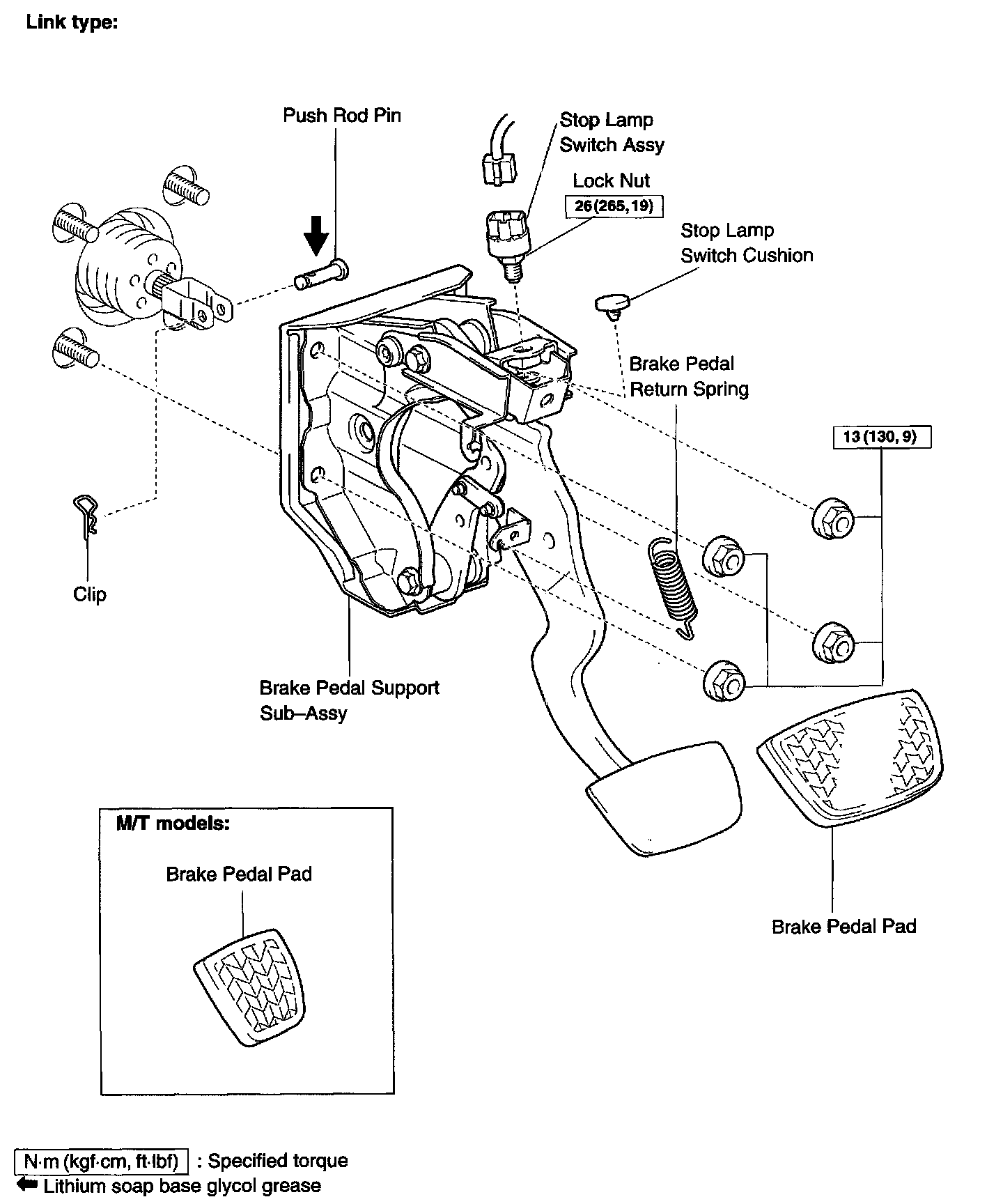

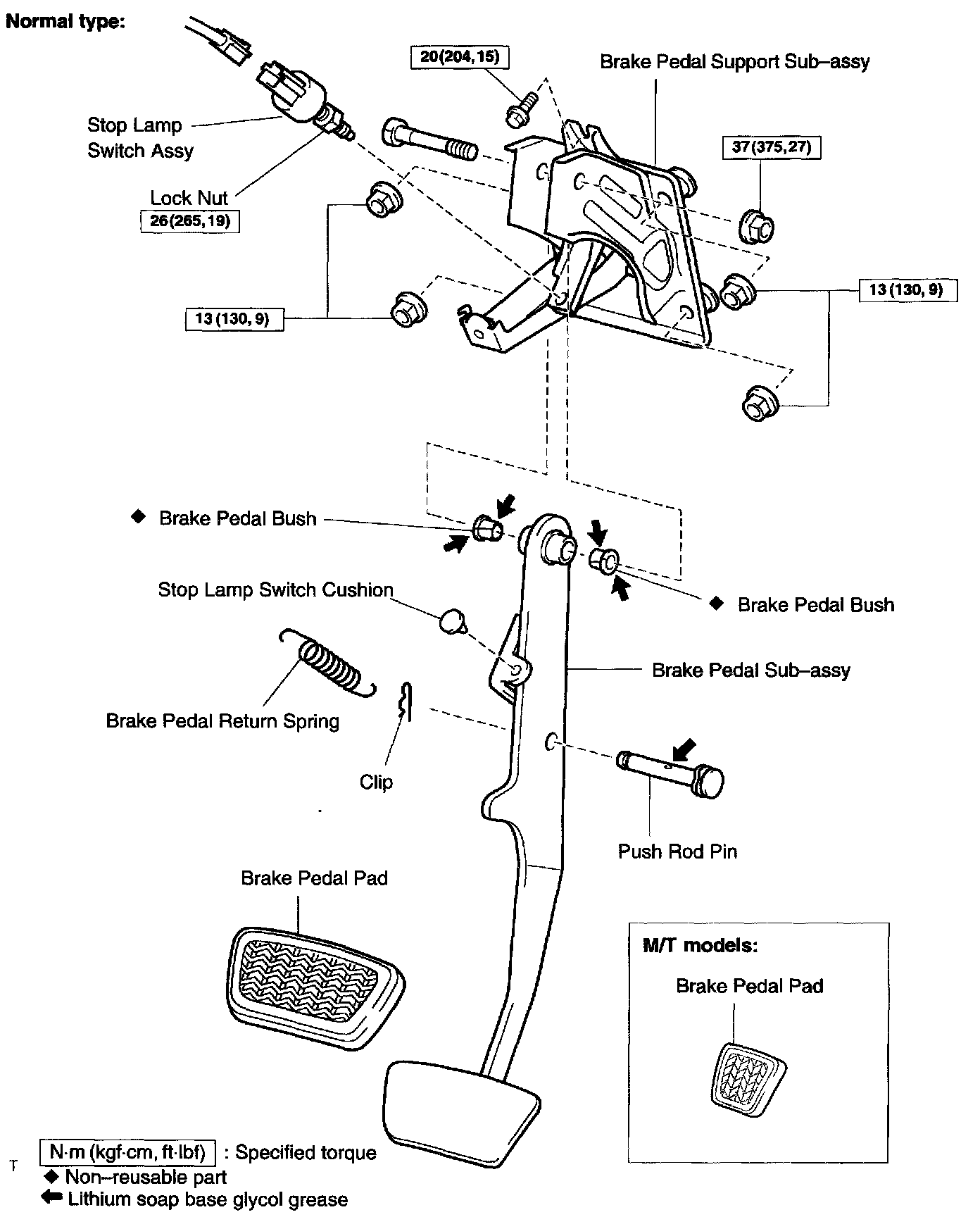

BRAKE PEDAL SUPPORT OVERHAUL W/ RELATED COMPONENTS
