Seat Belt Warning Lamp For Driver's Seat Does Not Operate
Seat Belt Warning Lamp For Driver's Seat Does Not Operate
SEAT BELT WARNING LAMP FOR DRIVER'S SEAT DOES NOT OPERATE

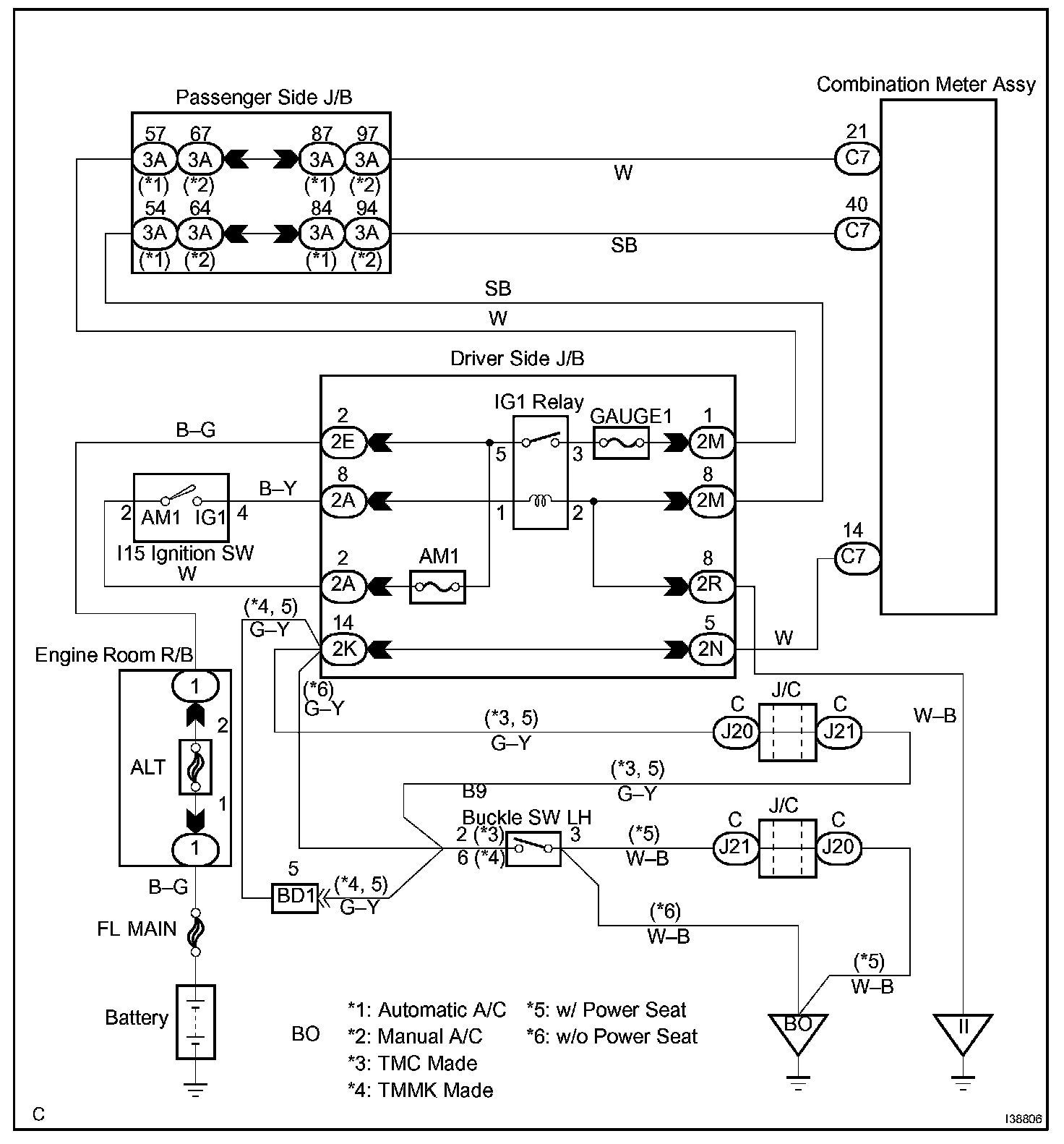

Wiring Diagram:

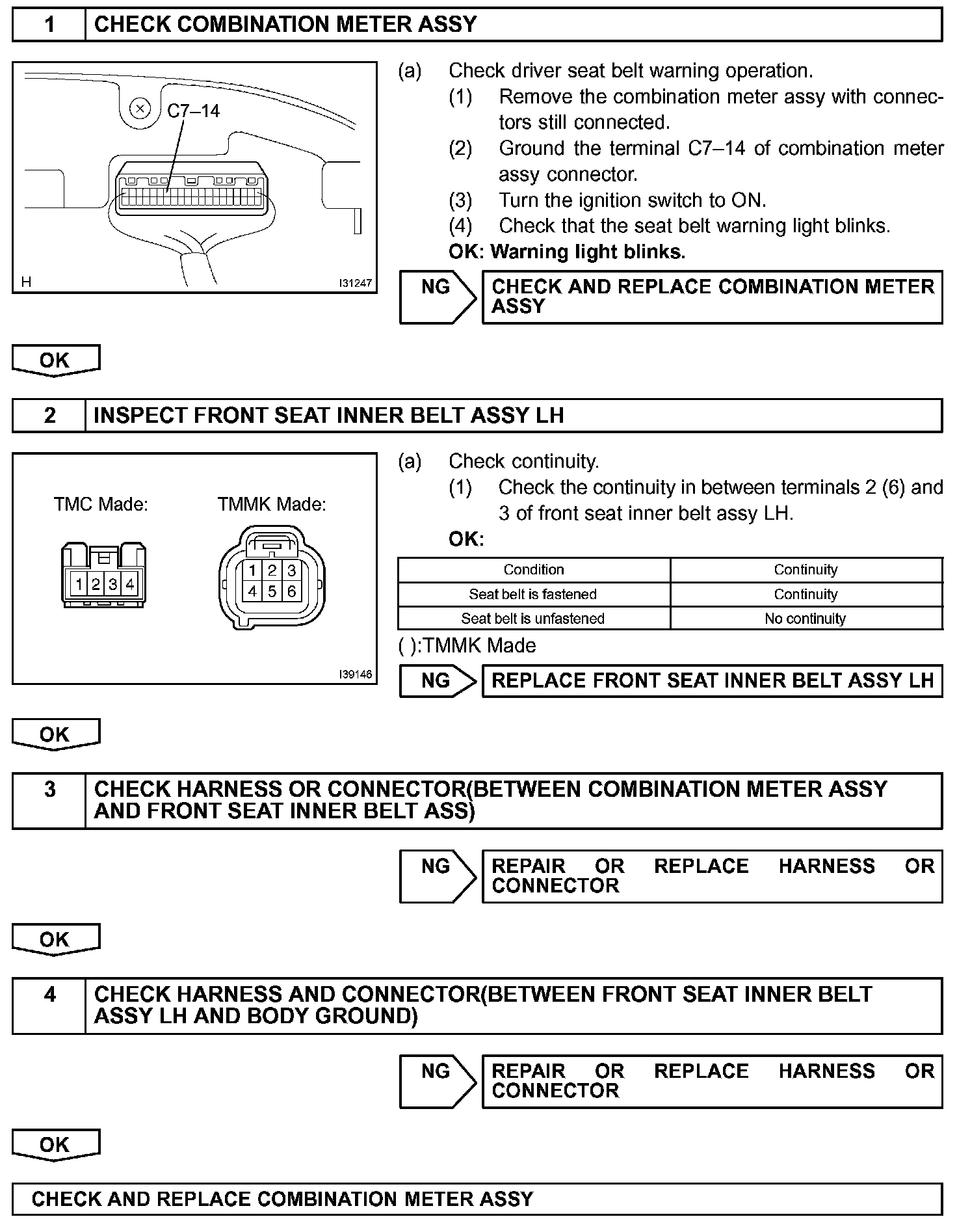

Step 1 - 4:
INSPECTION PROCEDURE
