Headlight Does Not Light Up

HEADLIGHT DOES NOT LIGHT UP

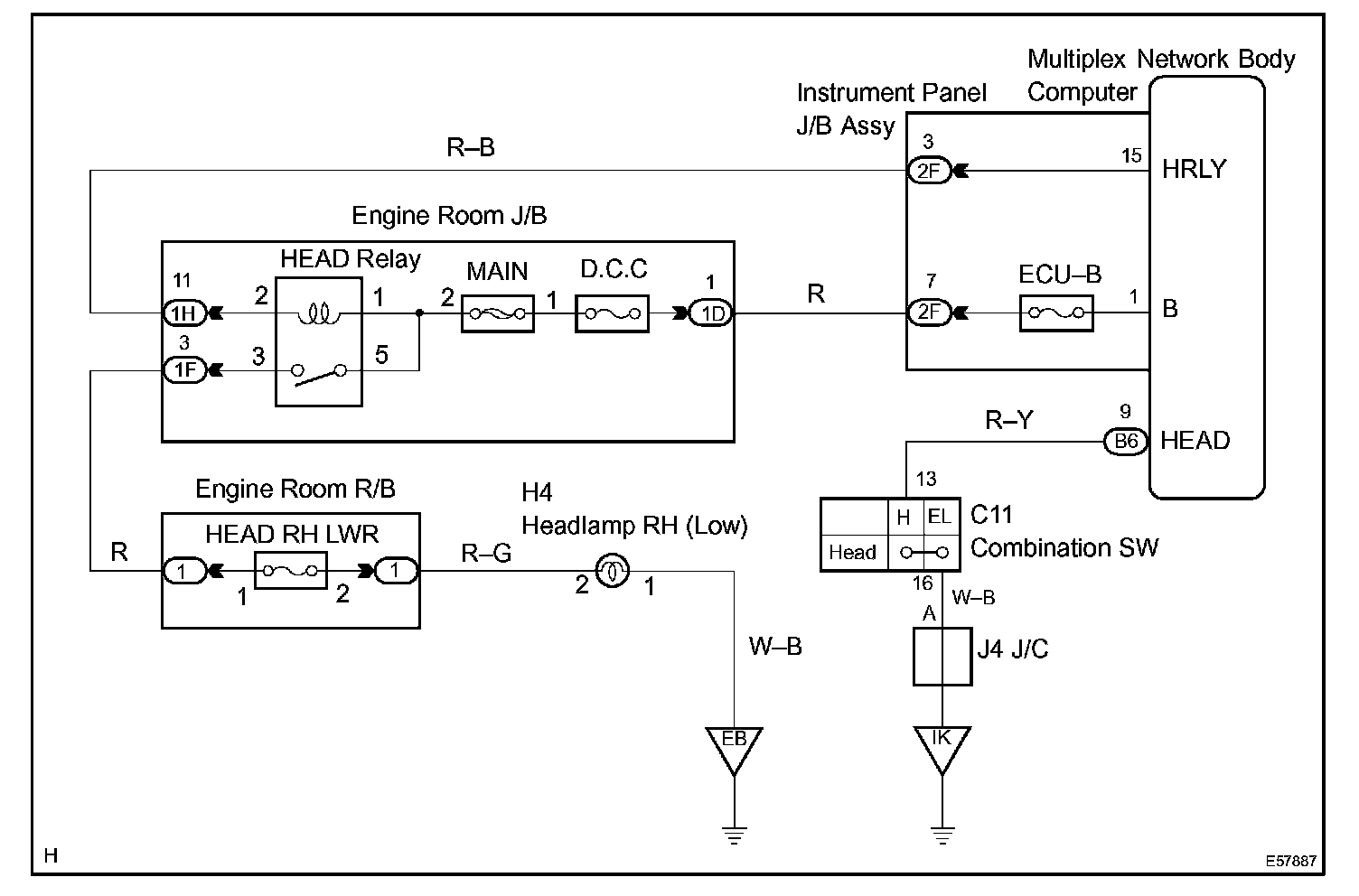

Wiring Diagram:

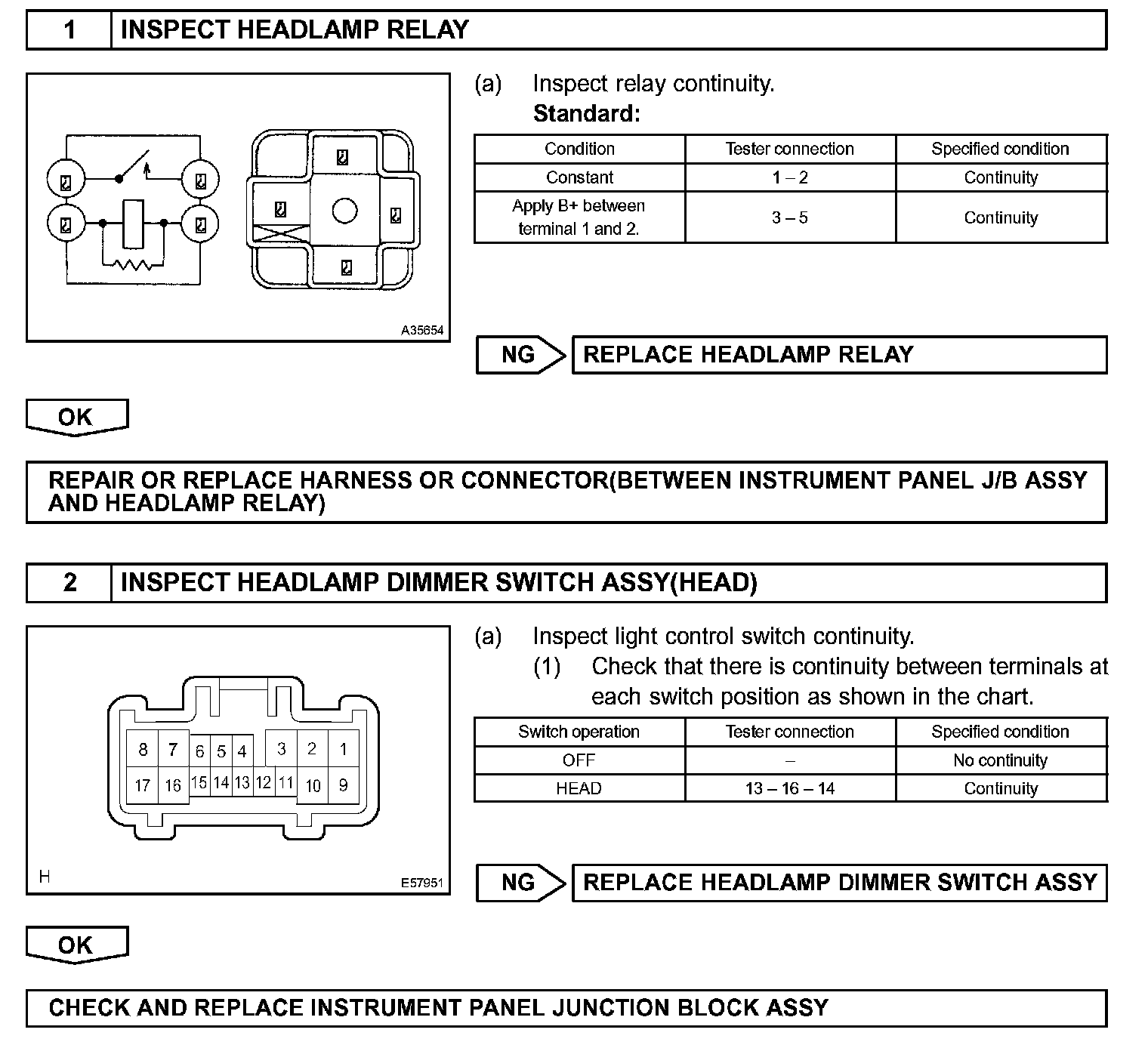

Step 1 - 2:




INSPECTION PROCEDURE
